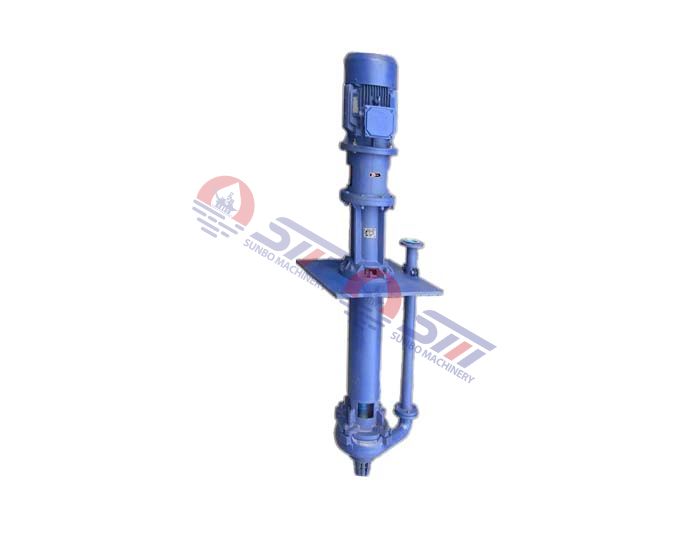

ZJL(R) pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive, large particle and high density slurries.
Vertical slurry pumps are vertically mounted centrifugal pumps, usually partially or completely immersed in liquid, specially used to transport slurries containing a large number of solid particles. It generates centrifugal force through the rotation of the impeller, sucking the slurry from the bottom of the pump body and discharging it through the outlet. ZJL(R) centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.
D: 40-200 mm
Q: 17-891 mm
H: 4-37 m
1. Wear-resistant metal, the impeller selection of wear-resistant metal or rubber material.
2. ZJL (R) type sump pump parts, immersed in liquid rubber lining.
3. Different length of the pump drive shaft or inhaled could be selected
4. V-belt drive, direct drive, and flexible coupling.
5. Bearing to lubricate oils.
6. Use of variable-speed, the best condition in the pump operation, long service life, run- effective, meet many bad transportation conditions.
| Type | Allowable Mating Max. Power(Kw) | Range Of Performance | Impeller | |||||
| Capacity/Q | Head/m | Speed/rpm | Max Efficiency/% | No. of Vanes | Impeller Diameter/mm | |||
| m³/hr | L/S | |||||||
| 40ZJL | 15 | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 5 | 188 |
| 65ZJL | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 5 | 280 |
| 100ZJL | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 5 | 370 |
| 150ZJL | 110 | 108-479.16 | 30-133.1 | 8.5-40 | 500-1000 | 52 | 5 | 450 |
| 200ZJL | 110 | 189-891 | 152.5-247.5 | 6.5-37 | 400-850 | 64 | 5 | 520 |
| 250ZJL | 200 | 261-1089 | 72.5-302.5 | 7.5-33.5 | 400-750 | 60 | 5 | 575 |
| 300ZJL | 200 | 288-1267 | 80-352 | 6.5-33 | 350-700 | 50 | 5 | 610 |
Strong wear resistance: The pump body and impeller of Vertical slurry pumps are usually made of wear-resistant materials (such as high chromium alloy, rubber, etc.), which can handle high concentrations of solid particles.
High efficiency: Reasonable design can efficiently transport slurry and reduce energy loss.
Easy installation: Vertical structure design, small footprint, suitable for installation in a small space.
Easy maintenance: The modular design of Vertical slurry pumps is easy to disassemble and maintain, reducing downtime.
For reliable and efficient solutions, consider Vertical Slurry Pumps, available for bulk supply. These pumps are tailored to meet demanding industrial needs, combining durability with performance excellence.
Sunbo Machinery is a professional manufacturer of slurry pumps, mission pumps and ANSI pumps in China, welcome your consultation! If you would like more information about this product, please feel free to contact us.
Mining: Vertical slurry pumps are used to transport ore slurry, tailings, wastewater after ore dressing, etc.
Chemical industry: Treat slurry containing chemical substances, suitable for corrosive media.
Wastewater treatment: Vertical slurry pumps transport sludge and sewage containing solid particles.
Papermaking industry: Treat pulp and wastewater.
Steel industry: Transport high-temperature and high-hardness steel slag slurry.
