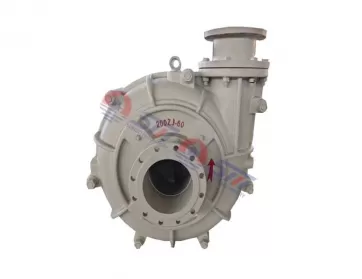

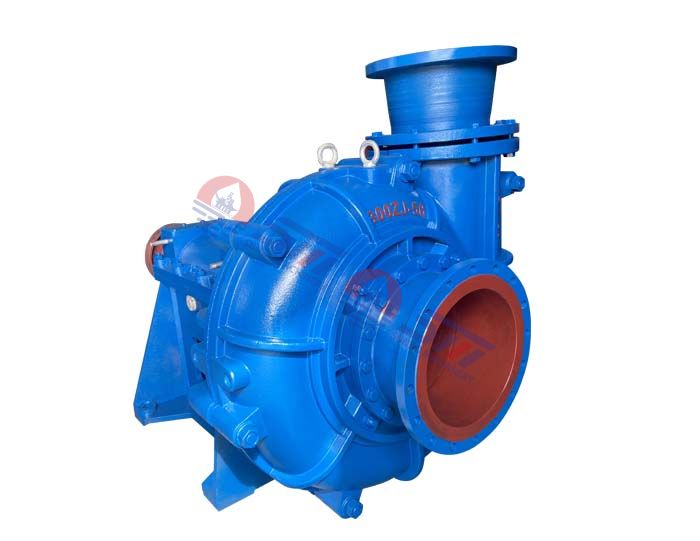

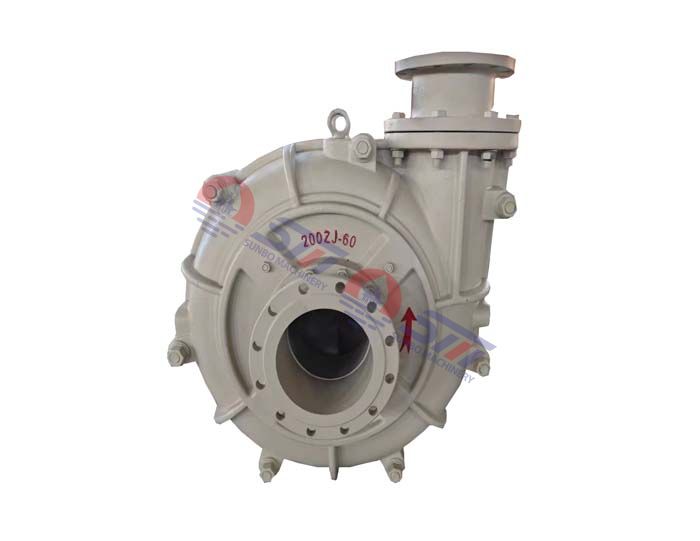

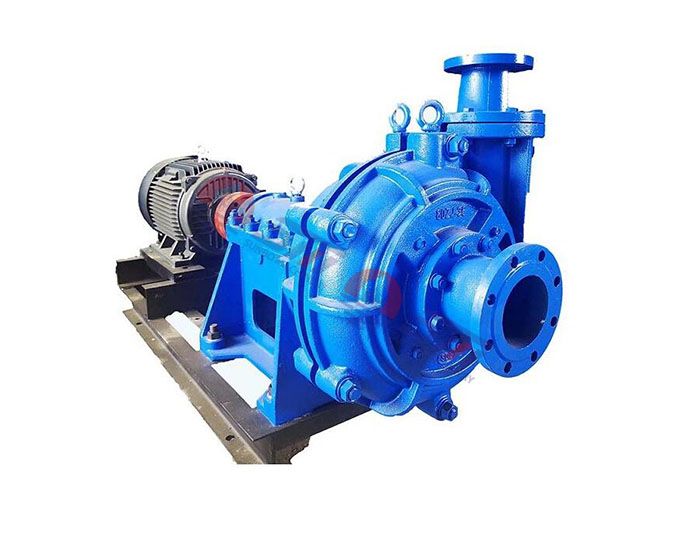

200ZJ Centrifugal Slurry Pump China pumps

Slurry Pump ZJ series are designed as single-stage, single-suction double-casing centrifugal horizontal slurry pumps. Various of pump speeds make ZJ series pump running under optimum operating conditions. Slurry Pump ZJ series can meet a wide variety of harsh conditions. Slurry pump ZJ series are suitable for handling abrasive and corrosive solids-bearing slurry with maximum density, which are widely used in power, metallurgical, mining, coal and building materials.

ZJ Pump is widely used in metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump.

Specification:

Flow rate: 4.5m³/h~4000 m³/h,

Head: H=6m~134m,

Speed: n=590～2950r/min,

Operating temperature: T ≤ 100 ℃

Features:

● High efficiency; energy-saving; light weight; reasonable construction; reliable performance; little vibration; low noise; easy maintenance.

● Various design of the pump speed and versions enable the pump to work even under poor conditions.

● The bearing layer and the wear layer can be separated. And the wet parts are made from strong abrasion resistance high-chrome alloy cast iron.

● Three types of shaft seals, mechanical seal, packing seal and packing combined expeller seal can be adopted.

● The pump discharge can be positioned to 8 directions at intervals of 45 degrees according to need. The inlet is horizontal.

● The medium transferred temperature should not exceed 60ºC. The weight concentration of the mortar should not exceed 45%; mineral slurry, 60%.

● The pumps can be installed in multi-stages for long distance delivery.

● Drive mode: mainly direct connection(DC).

● Lubricating way: 40ZJ-200ZJ adopts grease or oil lubrication according to bearing box structure; 250-500ZJ adopts grease lubrication.

Applications of Horizontal Slurry Pump

★ Mining Industry

Horizontal slurry pumps are extensively used in the mining sector for transporting abrasive and corrosive slurries. They handle the transfer of ore, tailings, and other mining-related fluids.

★ Mineral Processing

These pumps play a crucial role in mineral processing plants for tasks such as transporting minerals and chemicals in slurry form.

★ Power Generation

In power plants, horizontal slurry pumps are utilized for handling fly ash, bottom ash, and other by-products of combustion processes.

★ Chemical Processing

Industries dealing with corrosive and abrasive chemicals use horizontal slurry pumps to transfer chemical slurries efficiently.

★ Sand and Gravel Handling

Horizontal slurry pumps are employed in dredging operations and sand and gravel extraction processes, where abrasion-resistant pumps are essential.

★ Steel and Metal Production

These pumps are used in steel mills and metal production facilities for handling abrasive and corrosive fluids involved in various stages of production.

Structure:

ZJ Slurry Pump Specification
