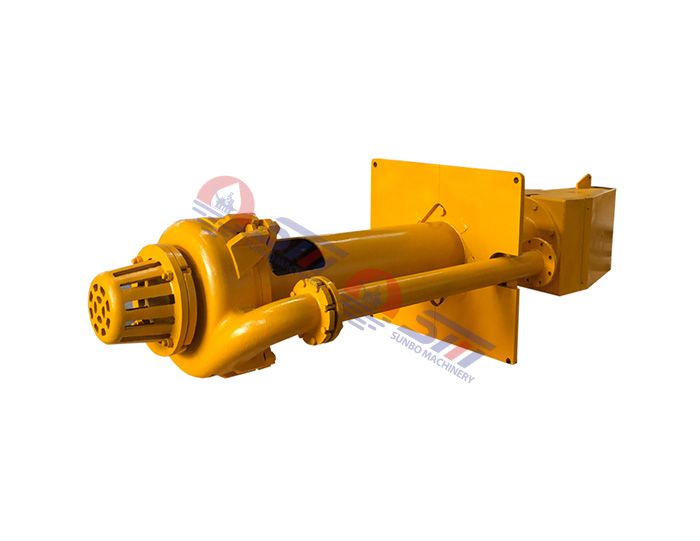

Sunbo SV(R) series vertical slurry pump is equlvalent to China Warman vertical slurry pump SP(R), Compared with horizontal pumps, they require less floor space, and wear-resistant parts can be made of hard metal or rubber.

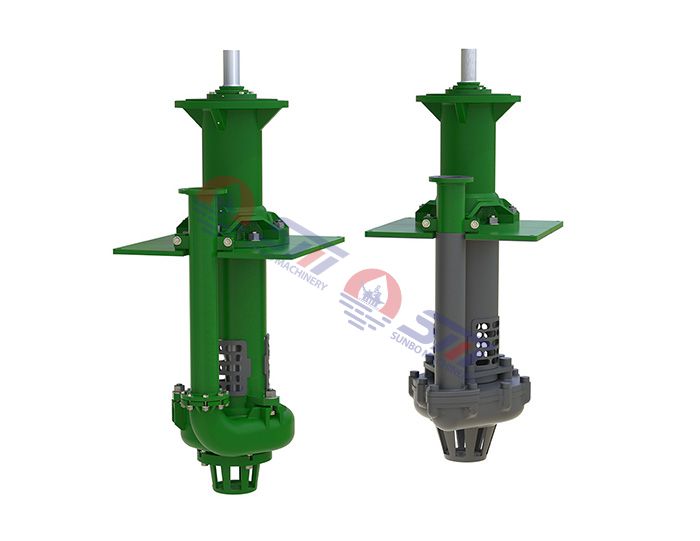

SV(R) series is equivalent to warman vertical slurry pump, which is designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.
The pumps are heavy duty, vertical, centrifugal and could work to be submerged in the sump, pool and minging tailings. These pumps don't need any shaft seal and sealing water, which could work normally even if the suction volume is not enough. China Warman sump pumps are of single casing structure with the advantages of light weight, small volume, easy installation and maintenance.Its casings are made of wear-resistant metal and the impellers are made of wear resistance metal or natural rubber, polyurethane and synthetic rubber. According to the different lever of liquid slurry in the pool, the different shaft length and suction pipe size could be selected. They are designed for pumping the slurry at abrasive, large particle and high concentration.
Specifications:
D: 40-300 mm
Q: 17-1548 m³/h
H: 4-40 m
Features:
● Metal or rubber lined wet parts
● Double suction semi-open impeller
● Agitator option keeps solids in suspension
● Recessed impeller option passes over-sized material
Application:
SV(R) China Warman sump pumps are mainly used for handing corrosive, coarse particles and high density slurries , and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump, Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump, Coal Preparation Plant Pump,Ash Handling Pump, Slurry Pump for metallurgical, Alumina Refinery Pump,Limestone Slurry Pump.

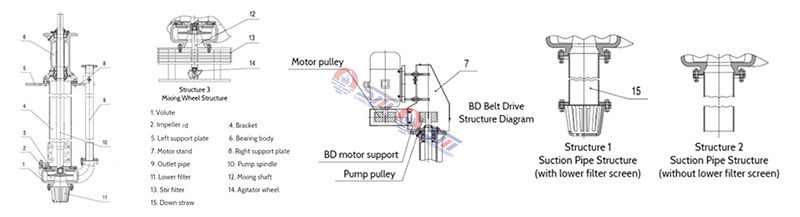

SV Vertical Slurry Pump Structure

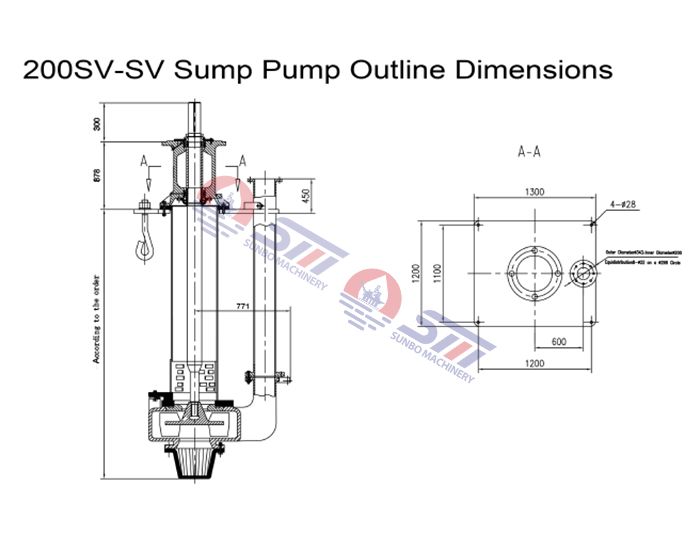

SV Warman Sump Pump Specifications
| Pump Model | Allowable Max. Power | Clear Water Performance | ||||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Impeller Dia. | ||||
| m3/h | l/s | |||||||
| 40PV-SV(R) | 15 | 17-43.2 | 4.7-12 | 4-28.5 | 1000-2200 | 40 | 188 | |
| 65QV-SV(R) | 30 | 18-114 | 5-32 | 5-31.5 | 750-1500 | 60 | 280 | |
| 100RV-SV(R) | 75 | 54-289 | 15-80 | 5-36 | 500-1200 | 62 | 370 | |
| 150SV-SV(R) | 110 | 108-479 | 30-133 | 8.5-40 | 500-1000 | 52 | 450 | |
| 200SV-SV(R) | 110 | 189-891 | 52.5-247.5 | 6.5-37 | 400-850 | 64 | 520 | |
| 250TV-SV(R) | 200 | 360-1152 | 100-320 | 7-33 | 400-750 | 60 | 575 | |
| 300TV-SV(R) | 200 | 540-1548 | 150-430 | 5.5-26 | 350-700 | 60 | 580 | |

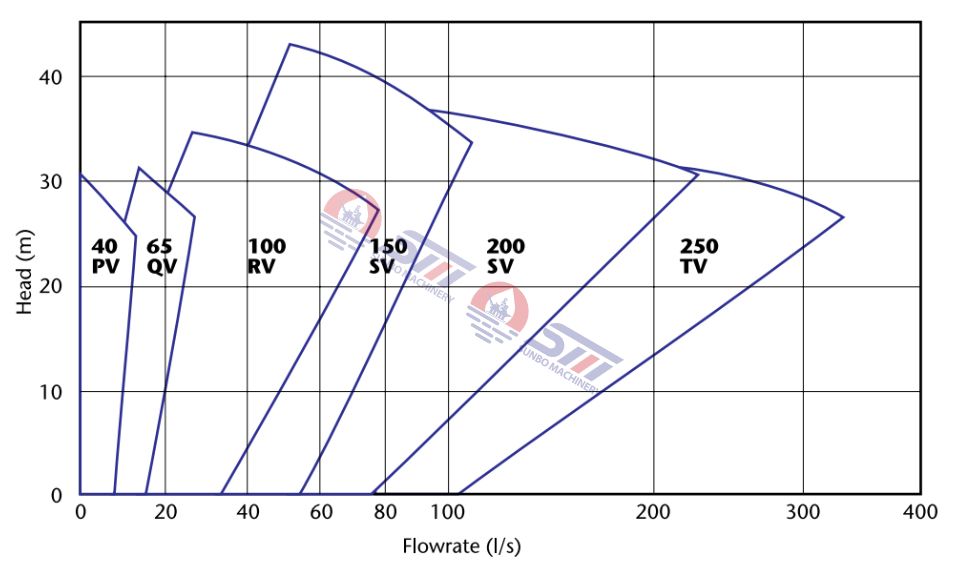

SV Quick Slelection Chart
