Sunbo SV(R) series vertical slurry pump is equlvalent to Warman sump pump SP(R), Compared with horizontal pumps, they require less floor space, and wear-resistant parts can be made of hard metal or rubber.

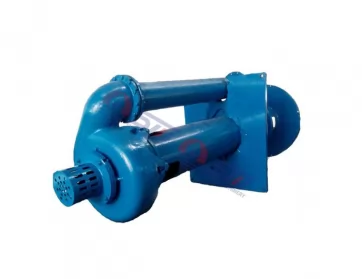

The 300TV-SV vertical slurry pump equivalent to Warman sump pump 300TV-SP, the SV series is a cantilever double suction sump pump, works for abrasive and high density slurry pumping application, it is high chrome or rubber lined, wear resistant material ensure durable long service lifetime. Open impeller is suitable for large size particle, moreover, agitator is also available if necessary.
Bearings and shaft design for operation speed under critical speed zone, the colums are of carbon steel or rubber material coating, the upper and lower strainer keeps extra big tramp out in case clog happened. Agitator can rotate the solids into suspension from sendimentation, which makes pumping easier. No shaft seal design, adaptable for temporary low capacity suction, it is popular in mill area cleaning and also leaching process.
SV(R) series China Warman vertical sump pump, which is designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.
Specifications:
D: 40-300 mm
Q: 17-1548 m³/h
H: 4-40 m
Features:
● Metal or rubber lined wet parts
● Double suction semi-open impeller
● Agitator option keeps solids in suspension
● Recessed impeller option passes over-sized material
Application:
SV(R) slurry pumps are mainly used for handing corrosive, coarse particles and high density slurries , and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump,China warman sump pump Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump, Cyclone Feeding Pump, Concentration Plant Processing Pump, Mining Tailing Pump, Cleaning and Quarry.

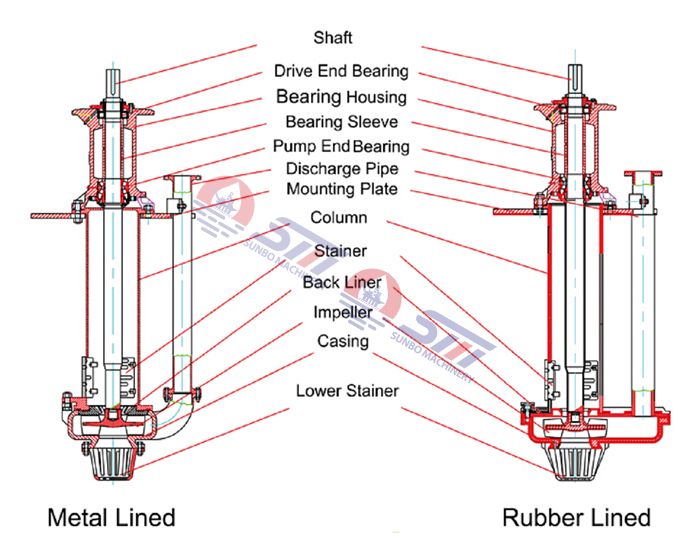

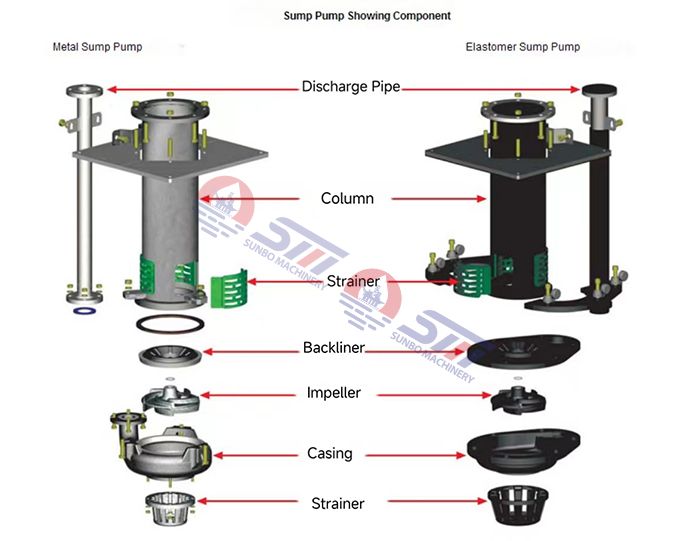

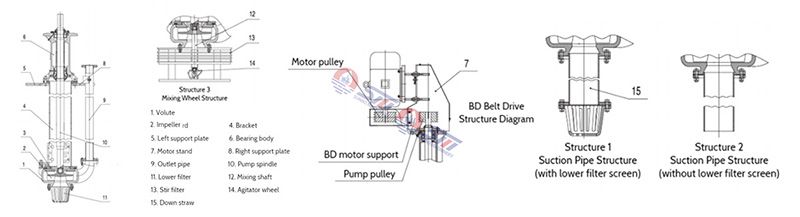

SV Vertical Slurry Pump Structure
SV Series China Vertical Sump Pump Specifications
| Pump Model | Allowable Max. Power | Clear Water Performance | ||||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Impeller Dia. | ||||
| m3/h | l/s | |||||||
| 40PV-SV(R) | 15 | 17-43.2 | 4.7-12 | 4-28.5 | 1000-2200 | 40 | 188 | |
| 65QV-SV(R) | 30 | 18-114 | 5-32 | 5-31.5 | 750-1500 | 60 | 280 | |
| 100RV-SV(R) | 75 | 54-289 | 15-80 | 5-36 | 500-1200 | 62 | 370 | |
| 150SV-SV(R) | 110 | 108-479 | 30-133 | 8.5-40 | 500-1000 | 52 | 450 | |
| 200SV-SV(R) | 110 | 189-891 | 52.5-247.5 | 6.5-37 | 400-850 | 64 | 520 | |
| 250TV-SV(R) | 200 | 360-1152 | 100-320 | 7-33 | 400-750 | 60 | 575 | |
| 300TV-SV(R) | 200 | 540-1548 | 150-430 | 5.5-26 | 350-700 | 60 | 580 | |

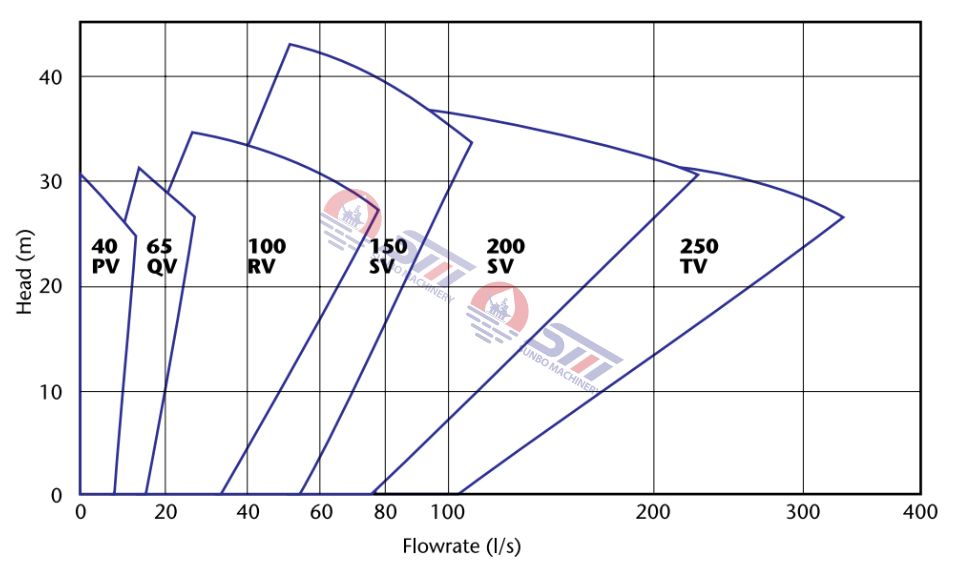

SV Quick Slelection Chart
