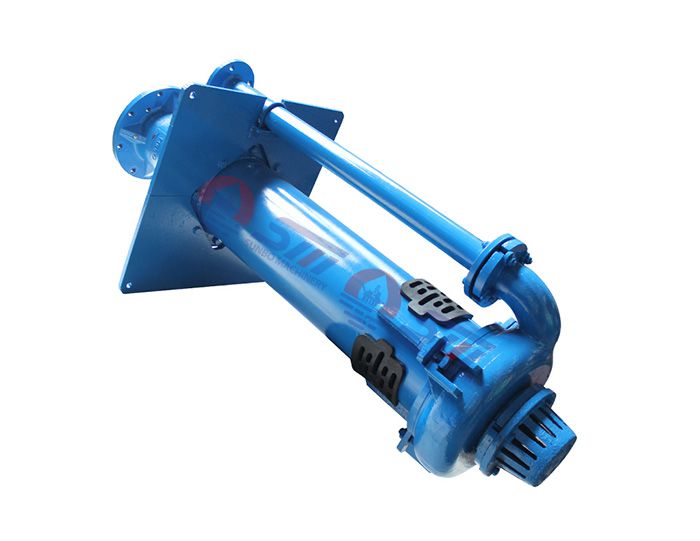

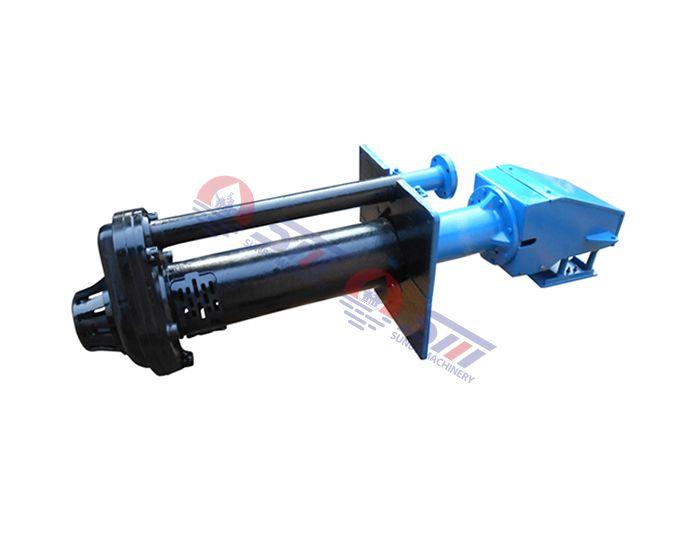

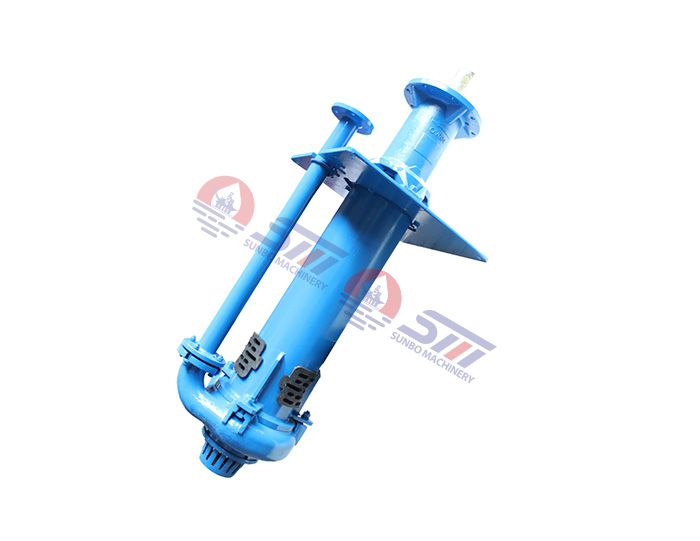

The 65QV-SV vertical slurry pump is equivalent to Warman vertical slurry pump 65QV-SP. Compared with horizontal pumps, they require less floor space, and wear-resistant parts can be made of hard metal or rubber.
SV(R) series China Warman sump pump SP series, which is designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.
High Chrome Vertical Pump selects the optimum combination of materials for maximum resistance to wear in virtually any industrial application. Vertical Submerged Pump including those demanding both abrasion and corrosion resistance and where larger particles or high density slurries are encountered. Abrasive Slurry Pump, Warman sp pump no need water seal. Cr27% 65QV Sump pump used for semi-submersible. SV(R) series China Warman sump pump has long shaft suction under water. Many kinds of material selection sump pump. Abrasive Slurry Pump has longer term service. Sump Pump Spare Parts replaceable with Warman SP pumps.
Specifications:
D: 40-300 mm
Q: 17-1548 m³/h
H: 4-40 m
Features:
● Cantilever design without submerged bearings or shaft seals;
● Wet components are available in A05 high chrome alloy and elastomer (rubber);
● The screened inlets and large impeller passages reduce the risk of blockages;
● Available in a pre-fabricated conical sump with quick clean facilities;
● Replaceable strainers allows for easy maintenance;
● Simple installation and easy maintenance.
● Anti-wear, anti-corrosion, which let the pumps service more longer;
● No priming required;
Application:
SV(R) Series China Warman sump pump are mainly used for handing corrosive, coarse particles and high density slurries, and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump, Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump.

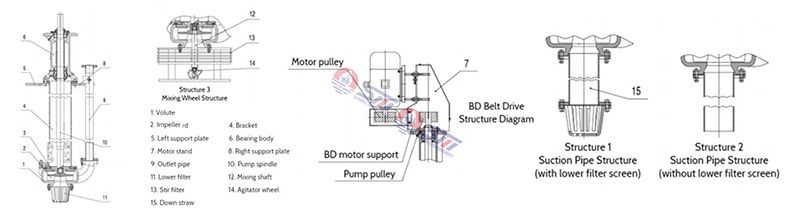

SV Series Vertical Slurry Pump Structure
SV Sump Pump Specifications
| Pump Model | Allowable Max. Power | Clear Water Performance | ||||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Impeller Dia. | ||||
| m3/h | l/s | |||||||
| 40PV-SV(R) | 15 | 17-43.2 | 4.7-12 | 4-28.5 | 1000-2200 | 40 | 188 | |
| 65QV-SV(R) | 30 | 18-114 | 5-32 | 5-31.5 | 750-1500 | 60 | 280 | |
| 100RV-SV(R) | 75 | 54-289 | 15-80 | 5-36 | 500-1200 | 62 | 370 | |
| 150SV-SV(R) | 110 | 108-479 | 30-133 | 8.5-40 | 500-1000 | 52 | 450 | |
| 200SV-SV(R) | 110 | 189-891 | 52.5-247.5 | 6.5-37 | 400-850 | 64 | 520 | |
| 250TV-SV(R) | 200 | 360-1152 | 100-320 | 7-33 | 400-750 | 60 | 575 | |
| 300TV-SV(R) | 200 | 540-1548 | 150-430 | 5.5-26 | 350-700 | 60 | 580 | |

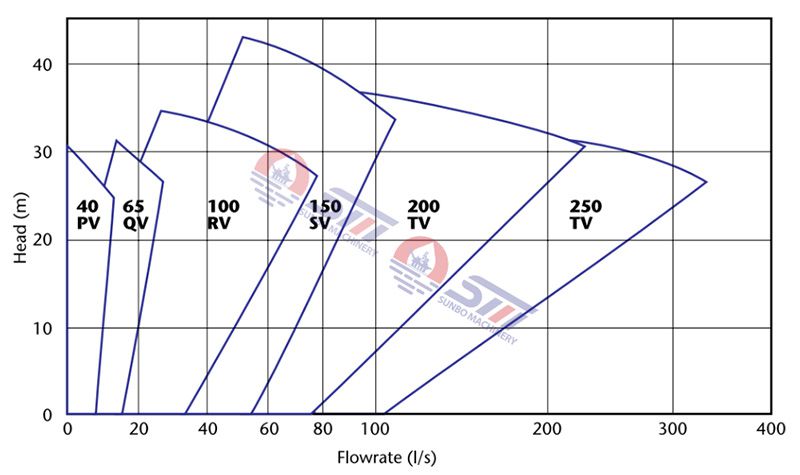

SV Quick Slelection Chart
