The SV(R) series Vertival slurry pump parts is equivalent to warman SP slurry pump parts, which is ideal for a variety of submerged suction pumping applications.

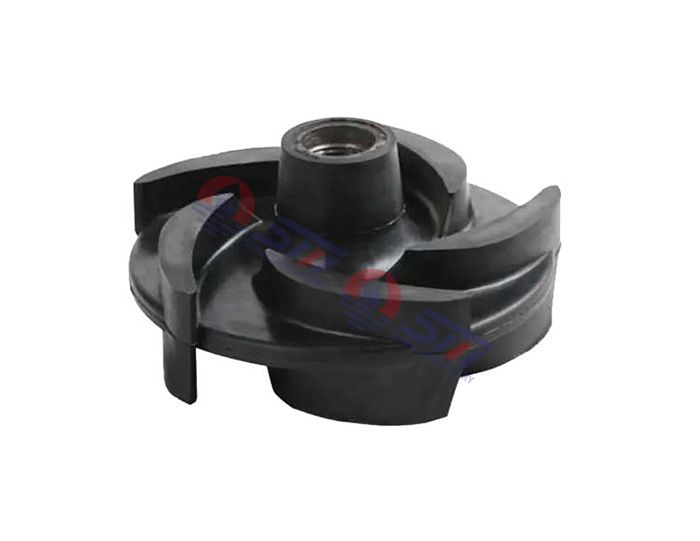

Our slurry pump impeller, as a key component of the pump system, is comparable in design and performance to the Warman SP series slurry pump impeller, and is suitable for a variety of demanding submersible suction pumping applications. This series of slurry pump impellers is widely used in mining, metallurgy, chemical industry and other industries that handle solid particles and high-concentration slurries due to its excellent wear resistance, corrosion resistance and high-efficiency pumping performance.
SV(R) series slurry pump impellers are usually made of high chromium alloy, wear-resistant rubber, stainless steel and other materials. The specific material selection depends on the physical and chemical properties of the conveying medium. The high chromium alloy impeller is particularly suitable for highly abrasive slurries and can effectively resist the impact wear of solid particles; the rubber material is suitable for handling slurries containing corrosive substances, especially under low abrasion and high corrosion conditions.
The geometry and structural design of the slurry pump impeller directly affect the efficiency and head of the pump. The SV(R) series slurry pump impeller offers a variety of designs, including open, semi-open and closed impellers, which can meet the needs of different working conditions:
Open impeller: suitable for handling slurries containing larger solid particles, with strong anti-clogging ability, suitable for high-concentration, coarse particle pumping applications.
Semi-open impeller: provides higher efficiency while ensuring moderate anti-clogging performance, suitable for working conditions with medium particles and higher flow rate requirements.
Closed impeller: suitable for high-head, low-solid content slurry pumping, which can reduce energy consumption while improving pumping efficiency.
The design of the SV(R) series slurry pump impeller pays special attention to fluid dynamics optimization and structural anti-wear performance. By optimizing the angle and thickness distribution of the blades, the impact and wear of solid particles on the blades are reduced, the stability of the fluid during pumping is improved, and the pump can operate stably for a long time when handling highly abrasive slurries.
SV(R) series slurry pump impellers are suitable for a variety of complex working conditions, including:
Mining: Handling slurries containing high concentrations of solid particles usually requires highly wear-resistant materials.
Metallurgy: Transporting highly abrasive slurries containing corrosive chemicals.
Coal and power plants: Pumping highly abrasive materials such as coal powder and ash slurry.
Chemical industry: Handling slurries containing chemically corrosive components requires strong corrosion resistance.
Main Model for Sump pump: 40PV-SP, 40PV-SPR, 65QV-SP, 65QV-SPR, 100RV-SP, 100RV-SPR, 150SV-SP, 150SV-SPR

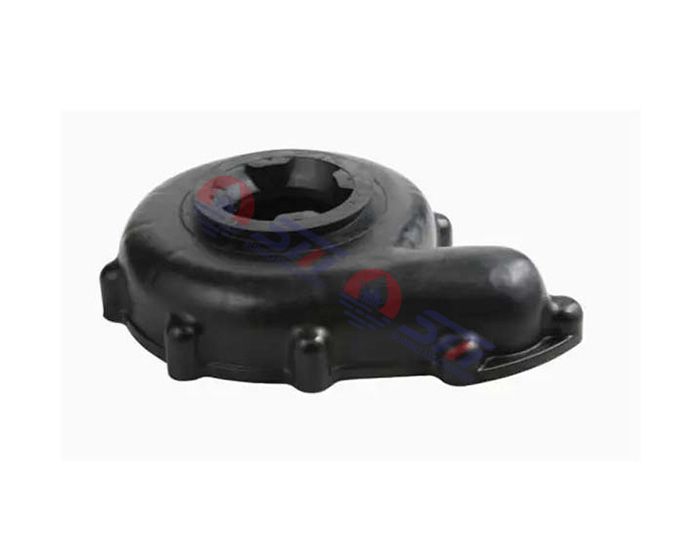

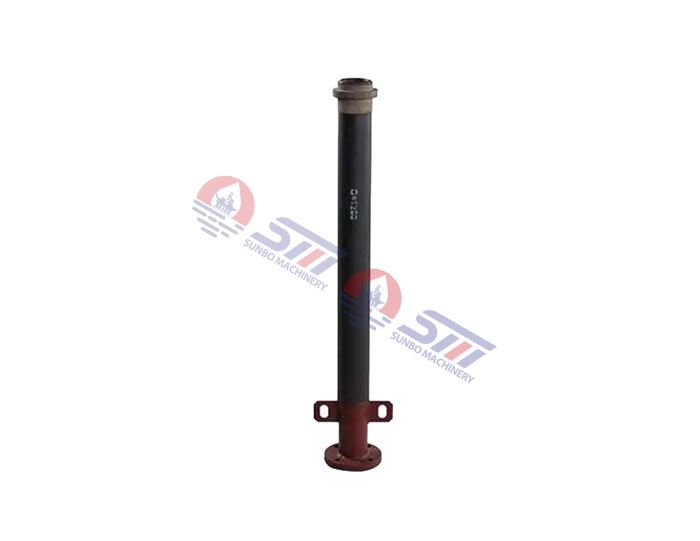

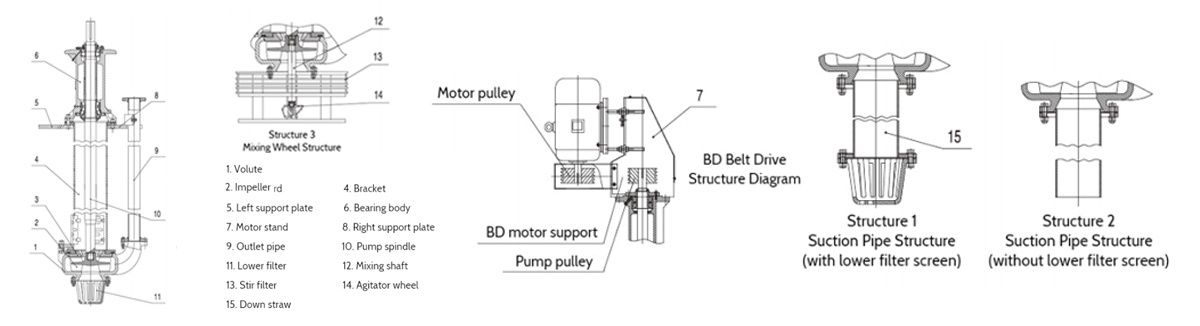

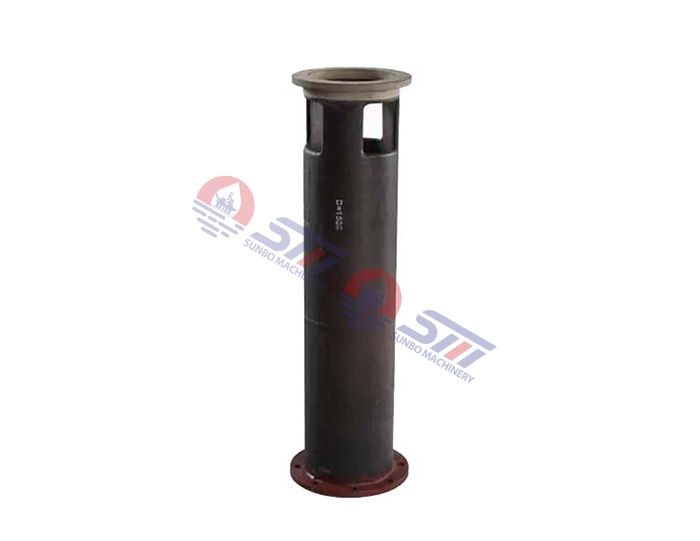

The Main part: Shaft, Bearing, Bearing Hosing, bearing spacer, bering, shim, column, strainer, back liner, impeller, pump casing, lower strainer, discharge pipe
