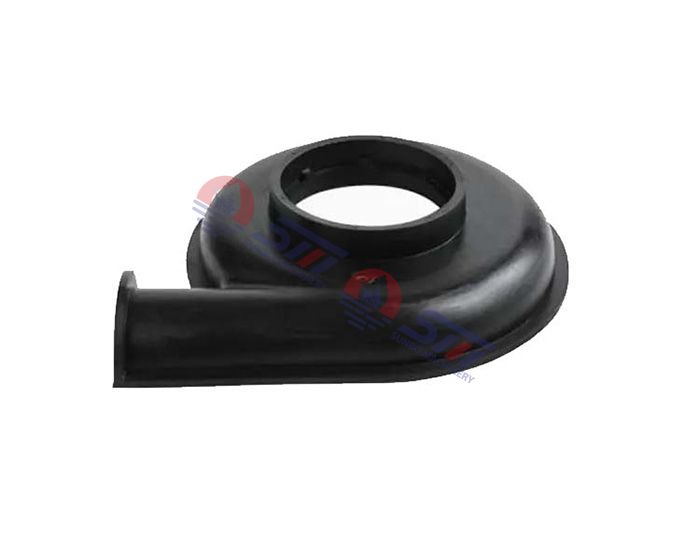

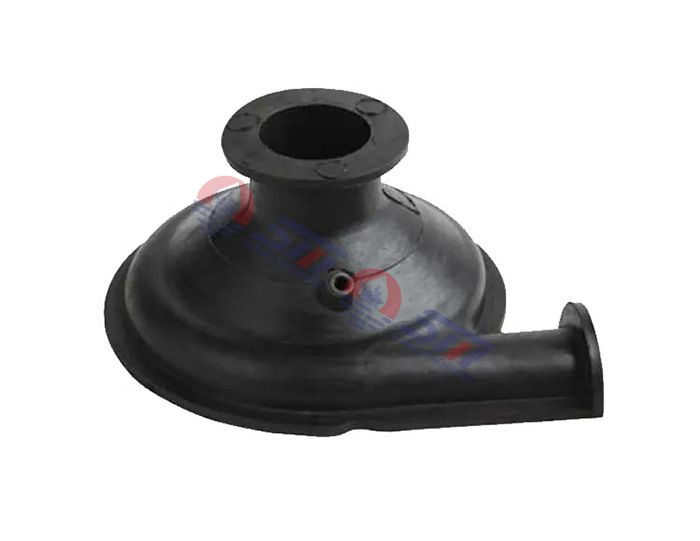

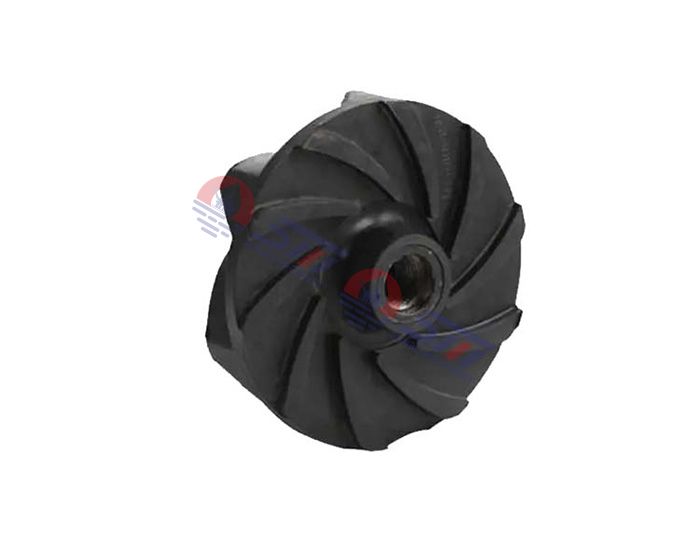

Rubber Slurry Pump Parts, Front Liner, Back Liner Impeller

SL type slurry pump parts is completely interchangeable with Warman pump L Series, China warman pump parts suppliers.

Inquire Now Next Product

Product Description

Features:

● SL type light duty slurry pump is a horizontal cantilever unit that allows slurry to enter into the pumping chamber from only one suction side.

● Double casing design, and all the slurry pump wear parts are replaceable and made of high-chrome alloy for maximum resistance to wear and abrasion. Rubber and polyurethane are selected to make liners and impellers too, so as to suit them for various working conditions.

● Different types of impellers are designed to handle a variety of flow patterns.

● The rotating shaft utilizes a packing gland seal. The expeller dynamic seal and other mechanical seal arrangements are among options.

● The rubber-lined slurry pump is designed to run at a high speed while delivering large capacity and low discharge head. It is suitable for low-abrasion, low-viscosity slurry pumping applications.

● The discharge outlet has 8 positions at 45 degree intervals that can be selected to meet the installation and application requirements. China warman pump parts suppliers top quality stable and fast delivery.

Pump Construction:

Light Duty Slurry Pump, Ash Pump

Shaft Seals

Light Duty Slurry Pump, Ash Pump

SL Pump Performance Specifications:

MODEL	OEM PUMP MODEL	MAX POWER	CLEAR WATER PERFORMANCE
		MAX POWER	Q CAPACITY		HEAD	SPEED	MAX.Eff	NPSH
		(KW)	M3/h	L/s	H(m)	n(r/min)	n%	(m)
20A-SL	20A-L	7.5	1.8~9	0.5~2.5	7~35.5	1400~3000	40	2.5~3
50B-SL	50B-L	15	11.5~65	3.2~18	8.5~46	1400~2800	62	2.5~5.5
50B-SLR	50B-LR	15	9~61	2.5~17	3~32.4	1200~2600	48	2.75~4.5
75C-SL	75C-L	30	21.6~136.8	6~38	7~46.4	900~2400	57	3~6
75C-SLR	75C-LR	30	28.8~154.8	8~43	9~43	1100~2300	60	3~5
100D-SL	100D-L	60	46.8~324	13~90	7~48.3	800~1800	64	2.5~6
100D-SLR	100D-LR	60	54~288	15~80	12~38	800~1600	65	2.5~5.5
150E- SL	150E- L	120	126~568.80	35~158	10.5~51.8	800~1500	60	2.5~6
150E- SLR	150E- LR	120	72~576	20~160	4~38	800~1300	65	2.5~5.5
200E-SL	200E-L	120	72~1080	20~300	8~45	500~1100	74	3~6
200E-SLR	200E-LR	120	1440~1800	40~500	6~48	500~1000	73	3~10
300S-SL	300S-L	560	568~2538	130~705	8~60	400~950	79	2~10
300S-SLR	300S-LR	560	432~1900	120~528	7~41	400~800	81	3~8
350S-SL	350S-L	560	650~2800	180~780	10~59	400~840	81	3~10
350S-SLR	350S-LR	560	720~2844	200~790	10~41	400~700	86	3~7
400S-SL	400S-L	560	756~3312	210~920	7~37.5	300~600	85	2~8
400S-SLR	400S-LR	560	720~3312	200~920	7~51	300~700	80	2~10
450ST-SL	450ST-L	560	1080~4356	300~1210	9~40	300~550	87	3~10
450ST-SLR	450ST-LR	560	1008~4356	280~1210	9~48	300~600	80	2~9
550TU-SL	550TU-L	1200	1980~7920	560~2200	10~50	250~475	86	4~10
