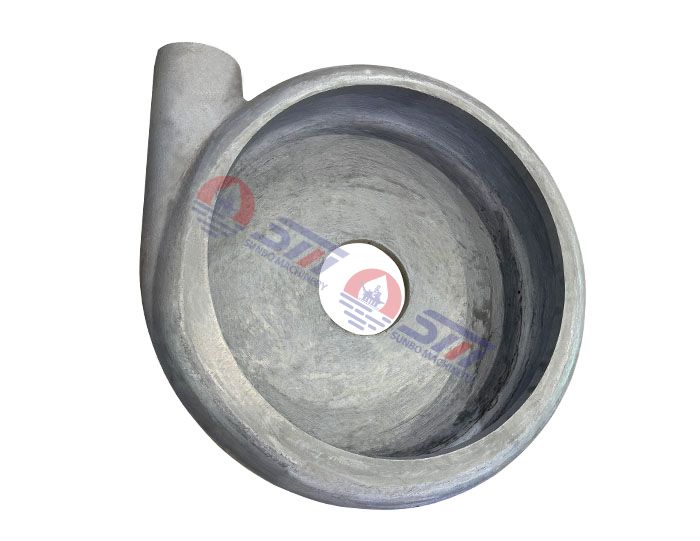

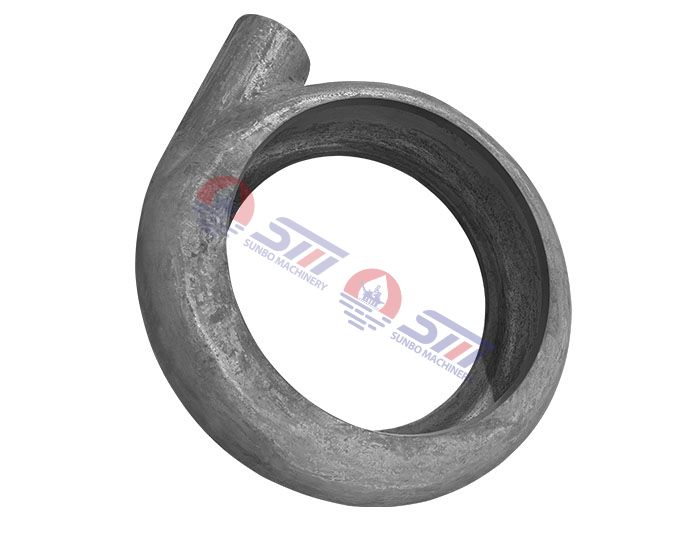

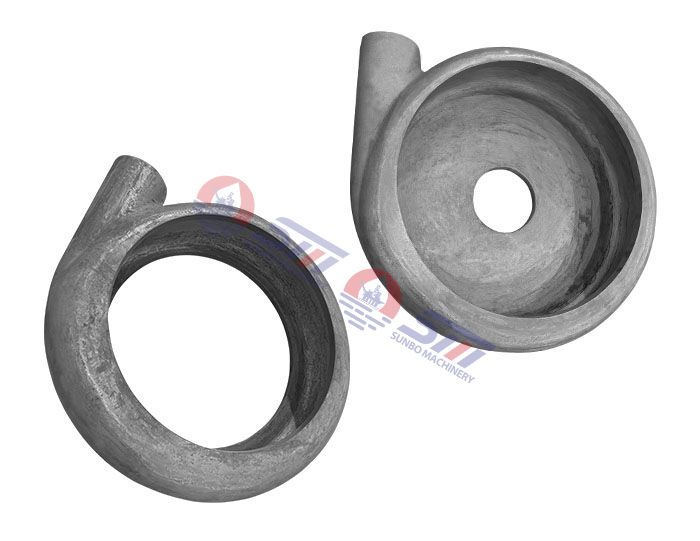

G12110A05 Ceramic Lined Volute Liner for 14x12 AH Pump

  • We manufacture top-quality replacement  parts  for Warman slurry pumps in China. Highly-efficient parts. Cost-effective prices. More, OEM order accepted, especially for all kinds of high chrome alloy spare parts. We have time and again delivered the best quality and service when it comes to maintaining and Warman pump parts in mines, mills and prep plants around the world.


Share

Slurry Pump Spare Parts Overview:

Slurry Pump Parts, totally interchaganable with warman slurry pump parts

Replacement of parts is a maintenance requirement when operating slurry pumps, and can’t be ignored. When your machinery is pumping solids, destructive wear will occur over a period of time. This part of wear and tear is inevitable, therefore you need a name to rely on to replace the parts effectively, efficiently, and affordably.

Wear Parts Material Overview---High Chrome Alloy

Material high chrome alloy--- ASTM-A532 is the top popular material used by slurry pump,  ASTM-A532 is the code for the material, this material also known as High Chrome 27% or KmTBCr27, and US ASTM-A532
Material Type:  Erosion resistant white iron


General Description
High Chrome 27% is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types, like mine slurry, power plant, industry waste and etc

As slurry pump material, the high wear resistance of High Chrome 27% is provided by the presence of hard carbides within its microstructure. Warman slurry pump parts impeller G12127, High Chrome 27% is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.


Physical properties
Density (kg/m3)                    7500
Hardness (HBW 10/3000)        650
Tensile strength (MPa)             780
Youngifls modulus (GPa)          220
Elongation at break (%)           0.4
Toughness (J)                         190


Chemical Resistance
High Chrome 27% is generally not suitable for highly corrosive duties. The alloy can be used in mild corrosive duties, within a pH range of 5 to 12, for silphuric and nitric acids, or sodium hydroxide applications.
High Chrome 27% Parts Availability
Most wet-end slurry pump wear parts can be produced in High Chrome 27%. The most common parts are as follows: Slurry Pump Impellers, Throatbush, Volute liners, Frame plate liner insert, Casings, Expeller, Expeller Ring.


Application Recommendations:
High-Chrome 27% can be used for pumping a wide range of mild corrosive slurries. The alloy gives very excellent wear life for a wide variety of particle sizes and hardness. Usually, High-Chrome 27% is most cost effective for particles greater than 100um in size.

We accept OEM orders of high chrome alloy, such as warman pump wear parts factory new casting, metso slurry pump parts moulding.
Contact us to know more of slurry pump, gravel pump and dredge pump, and find out what slurry pump parts, gravel pump parts and dredge pump parts in need.



Slurry Pump Spare Parts Application Site:

Tough Mining | Mineral Processing | Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA  Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Mining Minerals Washing | Floor Drainage |Fertilizer Plant| Industry Sewage Mixing



Slurry Pump Parts List:


Code1.5/1BAH2/1.5BAH3/2CAH4/3CAH4/3DAH6/4DAH6/4EAH8/6EAH10/8 FAH12/10STAH14/12STAH16/14TUAH20/18TUAH
3B003MB003MC003MC003MD003MD003ME003ME003MFAM 003MST003MST003MTU003TU003
4B004MB004MC004MC004MD004MD004ME004ME004MF004MS004MS004M004MT004M
5B005MB005MC005MCAM005MD005MDAM005ME005MEAM005MFAM005M



11B011B011C011C011D011D011E011E 011F011F011F011T008T008
13B1013B15013C2013D3013D3013E4013E4013F 6013G8013G10013G12013H14013T011
15B015MB015MC015MD015MD015ME4015ME4015MF6015MG8015MG10015MG12015MH14015MUP18015M
17B1017B15017C2017D3017D3017






U18013D21
18




E4018RE4018RF6018


T024
24B024B024C024C024D024D024E024E024F024



28B028B028C028D028D028DAM028E028EAM028
S024S024TH028T 024
29B029B029C029CAM029D029DAM029E029EAM029
S025S025H029T025
029RB029RB029RC029RCAM029RD029RMDAM029RE029RMEAM 029RM
SH028SH028

32B1032B15032C2032CAM3032D3032DAM4032E4032EAM6032G8032G029G029H14032U18032D21
36B1036B15036C2036D3036D3036E4036 RE4036RF6036




41B1041NAB15041NAC2041D3041D3041E4041E4041F6041G8041G10032G12032H14041U18041
44B044B044C044C044D044D044E044E044G044

H044
46B046B046C046C046D046D046E046E046F046G10041G12041

52B1052







G044G044

60B1060B15060C2060D3060D3060E4060E4060
G8060G10060G12060H14060
61B061B061C061C061D061D061E061E061F061



62B062B062C062C062D062D062E062E062FAM062S062DMS062DMT062DM
63B063B063C063C063D063D063E063E063G063G063G063H063T063
64


D064E064F064F064F064


TH064
67B067B067C067C067D067D067E067E067G067G067G067H067
73B073MB073MC073MCAM073MD073MDAM073ME073MEAM073MFAM073MSH073MSH073MTH073
75B075B075C075C075D075D075E075E075FAM075SH075SH075TH075
76




DAM076JM


SH076SH076TH076
78B078B078JMC078CAM 078D078DAM078E078JMEAM078G078G078JMG078H078TU18078M
81





E4081F6081




83




E4083RE4083F6083G8083G10083G12083H14083U18083
90B090B090C090C090D090D090


G090


108B108
C108

D108E108
F108G10110G12110

109B109B109B109C109D 109D109E109E109F109G109
T109
110B111NAB15110NAC2110NAD3110D3110E4110E4110F6110G8110G118G118H14110U18110
117B117B117C117CAM117D117DAM117E117EAM117G117G122G122

118B118B118C118C118D118D118E118E118G118

H118
122B122B122C122D122D122E122E122F122G122

H122
124




E4124E4124
G8124G10124G12124H14124U18124
125B1125B15125C2125D3125D3125







127B1127NAB15127NAC2127









132B1132XLB15132LC2132XLPD3132XLPD3132XLPE4132XLPE 4132 XLPF 6132 XLPG8132XLPG10132XLPG12132XLPH14132 L
138B138B138D138D138D138D138D138D138
G138G138G138
147

C2147D3147NAD3147E4147RE4147F6147RFAM8147G10147G12147GAM14147TU18147
217B217B217C217









239







FAM239MCSC210CSC210
T239M
241



D241D241E241E241
S239MS239MT239M
302





E4302F6302


H14302
303





E303F303




304





E4304F6304
G10304G12304H14304
315





E315



T315

OEM Slurry Pump Parts, totally interchaganable with warman slurry pump parts
