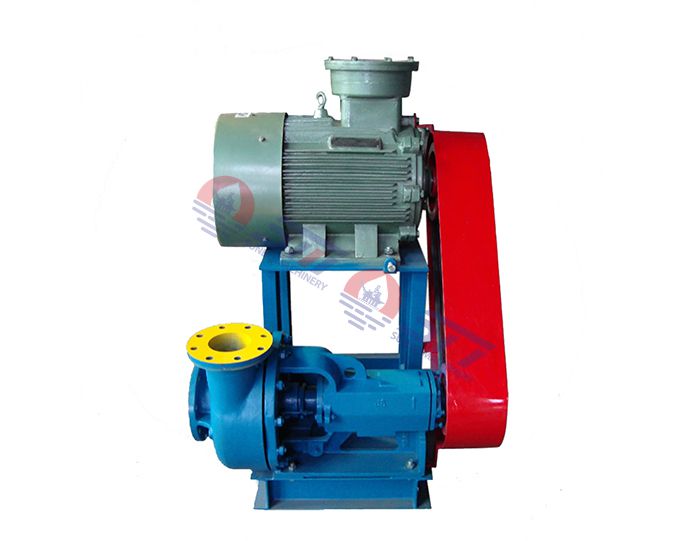

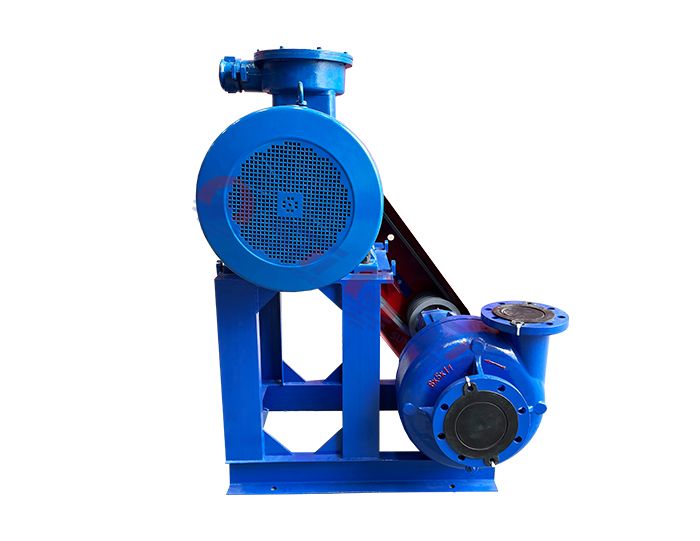

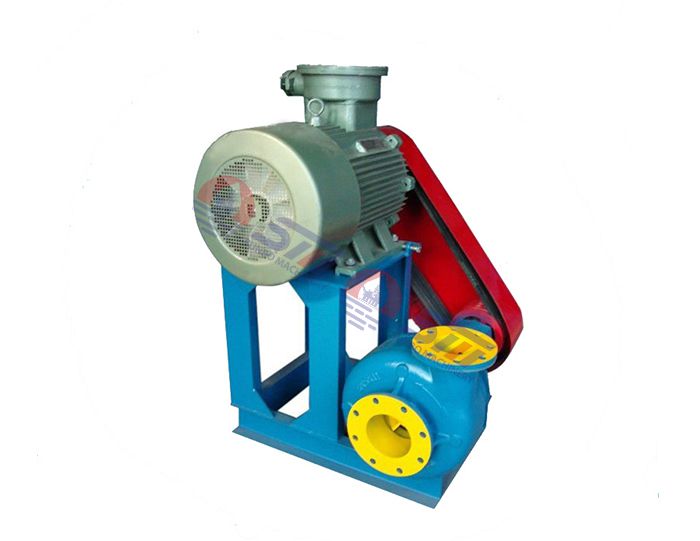

The NOV Mission Shear Pump is mainly used for a quick concoction of high-performance mud so that the time spent on it will be greatly shortened and wells' economic benefits increased.
The Shear Pump is used to shear, refine, mix polymer, bentonite etc drilling mud material. It can remove "fish eye" help drilling fluid achieve high property for oil drilling. Sunbo Shearing pump can save over 30% bentonite. As one very important equipment within the drilling fluid circulating system, shearing pumps perform the dual function of cutting and pumping, making the drilling fluid ideally suited for every drilling requirements of reducing solids size, and protect its downstream equipments.
Features and Benefits of Drilling Fluids Shear Pump:
● Greatly enhances the hydration of the soil particles.
● Makes the compounds dilute, shear and hydrate in a shorter time while saving over 30% of bentonite.
● Offers larger capacity and lift to meet the demands on concoction and mud processing.
Specification:
| Model | 80-4x3x13 | 100-6x5x11 | 120-6x5x11 |
| Discharge Capacity | 60 m³/h | 100 m³/h | 120m³/h |
| Pumping Max Lift | 30 m | 40 m | 45m |
| Chopping Efficiency | 95% | 95% | 95% |
| Motor Power (KW) | 30 kW | 45 kW | 55 kW |
| Rpm of Impeller | 1800 rpm | 2200 rpm | 2200 rpm |
| Suction Diameter | 4" | 6" | 6" |
| Discharge Diameter | 3" | 5" | 5" |
