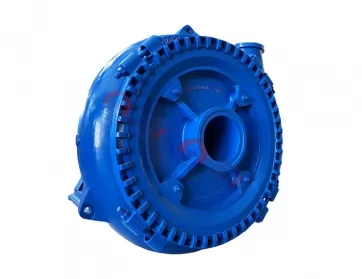

China Warman Gravel Pump SG and SGH pump is a horizontal cantilevered single casing centrifugal pump, euqivalent to Warman Gravel Pump G and GH. The SG Type gravel pump is suited for shorter-distance tunnelling applications. It's also widely used in slag granulation plants; The SGH Type heavy-duty gravel pumps is designed for higher-head inland dredging duties, long-distance tunnelling pipelines and slag granulation plants.
The Warman range of gravel pumps is designed specifically for the continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Able to process large particles with consistently high efficiency, resulting in a low cost of ownership. The high volume internal profile of the housing reduces associated speeds, thereby increasing component life. In particular, warman gravel pumps are not coated in order to handle large particles.
Pump size: 4-20 inches
Capacity range: 36-4320 m3/h
Head range: 10 to 80 m
Speed range: 200-1400 rpm
Power range: 60-1200 kW
● Warman China High Head SGH Gravel Pump is a horizontal cantilever centrifugal pump designed to handle the most difficult abrasive slurries that contain solids too large to be pumped by a common slurry pump.
● The construction of this pump consists of a single housing connected by means of clamping bands and a large wet passage. Wet parts are made of Ni-hard and chrome alloys with high abrasion resistance.
● The warman gravel pump discharge direction can be oriented in any direction of 360°.
● closed wheel with wide passage, good NPSH performance and abrasion resistance.
● All warman gravel pump wet parts are made of wear-resistant high chromium alloy material. They are suitable for sludge delivery in mining, metal smelting, dredging and barge loading.
● Sunbo warman gravel pump adopts international advanced technology, non-obstructing design with large flow channel and high-efficiency 3-vane closed impeller. Large solid particles are permitted.
● Bearing assembly – large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.
● Housing – unique housing is made of high chrome alloy, provides long wearing time.
● Impeller – 3-blade impeller, easily handling larger solids. The wheel and housing are threaded connection, no nuts needed. High efficiency, high head height designs are also available.
● Cover plate – wear is reduced and maintenance simplified through the use of tapered mating faces to allow precise, positive alignment during assembly and simple removal.
● One-piece chassis – a very robust one-piece chassis accommodates the cartridge bearing and shaft assembly. An external impeller adjustment mechanism is provided for easy adjustment of impeller clearance.
Sunbo Model | OEM Model | Max. Power P(kw) | Capacity Q(m3/h) | Head H(m) | Speed n(r/min) | Eff. η(% ) | NPSH(m) | Impeller Dia.(mm) |
100D-SG | 6/4D-G | 60 | 36-250 | 5-52 | 600-1400 | 58 | 2-5.5 | 378 |
100E-SG | 6/4E-G | 120 | 36-250 | 5-52 | 600-1400 | 58 | 2-5.5 | 378 |
150E-SG | 8/6E-G | 120 | 126-576 | 6-45 | 800-1400 | 60 | 3-4.5 | 391 |
200S-SG | 10/8S-G | 560 | 216-936 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 |
200S-SGH | 10/8S-GH | 560 | 180-1440 | 24-80 | 500-950 | 72 | 2.5-5 | 711 |
200F-SG | 10/8F-G | 260 | 216-936 | 8-52 | 400-800 | 65 | 3-7.5 | 533 |
250F-SG | 12/10F-G | 260 | 360-1440 | 10-60 | 350-700 | 65 | 1.5-4.5 | 667 |
250G-SG | 12/10G-G | 600 | 360-1440 | 10-60 | 400-850 | 65 | 1.5-4.5 | 667 |
250G-SGH | 12/10G-GH | 600 | 288-2808 | 16-80 | 350-700 | 73 | 2-10 | 950 |
300G-SG | 14/12G-G | 600 | 576-3024 | 8-70 | 300-700 | 68 | 2-8 | 864 |
300T-SG | 14/12T-G | 1200 | 576-3024 | 8-70 | 300-700 | 68 | 2-8 | 864 |
350G-SG | 16/14G-G | 600 | 720-3600 | 18-45 | 300-500 | 70 | 3-9 | 1016 |
350T-SG | 16/14T-G | 1200 | 720-3600 | 18-45 | 300-500 | 70 | 3-9 | 1016 |
350TU-SGH | 16/14TU-GH | 1200 | 324-3600 | 26-70 | 300-500 | 72 | 3-6 | 1270 |
400TU-SG | 18/16TU-G | 1200 | 720-4320 | 12-48 | 250-500 | 72 | 3-6 | 1067 |
The robust design of SG/SGH sand and warman gravel pumps typically meets high volume, high head height tasks. Warman gravel pumps are best suited for sand and gravel, river and pond dredging, cutter suction dredger, sand excavation, coal washing, tunneling and slag granulation . , Barge loading, sugar beet, sand reclamation, suction hopper dredging, booster pumps, large particle solids, DMS circuits, power plant, mineral processing plants, higher head cyclone feed or pipeline tasks long distance and other industries.
