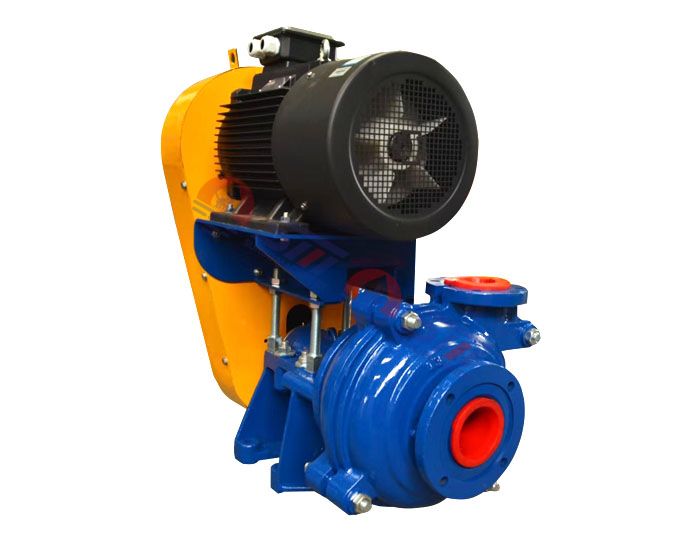

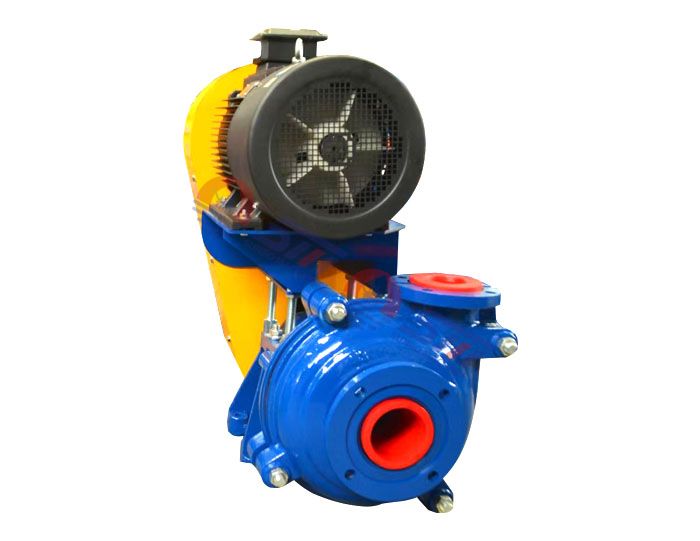

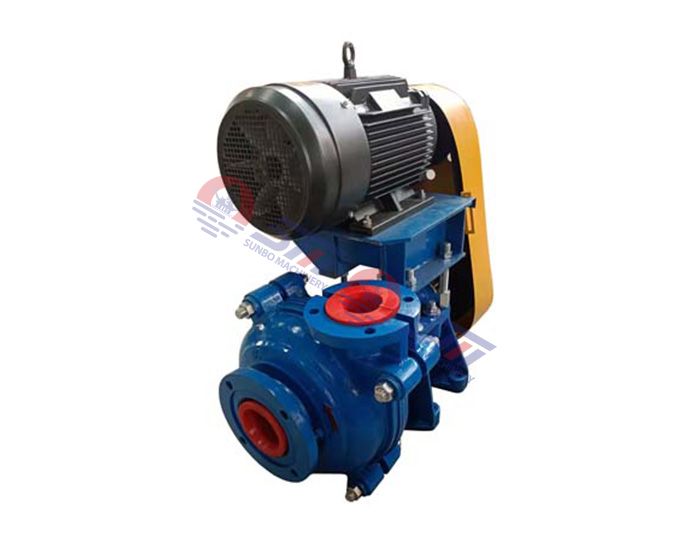

AHR Polyurethane Lined Slurry Pumps with PU Wear Parts

Rubber Lined Slurry Pumps are single stage, cantilever, double casing, horizontal, corrosion resistant centrifugal slurry pumps. The HSR type pump is interchangeable with Warman rubber lined pumps. They have been designed for the treatment of corrosive, acidic or erosive slurries in mining, coal, metallurgy, power, building materials, sand washing and other industrial departments.


Polyurethane (commonly abbreviated PU) is a unique material that offers the elasticity of rubber combined with the toughness and durability of metal.

The abrasion and tear resistance of polyurethanes is much better than that of rubbers, while providing higher load-bearing capacity. Compared to plastics, urethanes offer superior impact resistance, while providing excellent wear properties and elastic memory.

It allows the engineer to replace rubber, plastic and metal with optimal physical and abrasion resistance properties. Polyurethane can reduce facility maintenance.

Benefits

● The dual housing design of our Warman rubber slurry pump replacement allows for axial splitting. Made of ductile iron, the pump body is able to withstand the high pressures produced in the pumping chamber. The liners are made from wear-resistant materials and do not stick to the outer casing for ease of maintenance and replacement.
● The slurry pump body is attached to the mounting base by several bolts. Users can easily adjust the clearance between the impeller and suction liner from underneath the bearing bracket.
● Throat seal, mechanical seal and expeller seal are available to prevent mud leakage during pumping operation,
● The compact structure allows the pump to take up little floor space.

Features:

● The HSR type lightweight slurry pump is a horizontal cantilever unit that allows slurry to enter the pumping chamber from only one suction side.
● Double housing design and all wearing parts of the slurry pump are replaceable and made of high chrome alloy for maximum resistance to wear and abrasion. Rubber and polyurethane are also selected to make coatings and wheels, to adapt them to various working conditions. .
● Different types of impellers are designed to handle a variety of flow patterns.
● The rotating shaft uses a gland seal. Expeller dynamic seal and other mechanical seal arrangements are options.
● The polyurethane lined slurry pump is designed to operate at high speed while providing high capacity and low head. It is suitable for low abrasion and low viscosity slurry pumping applications.
● The discharge outlet has 8 positions at 45 degree intervals that can be selected to meet installation and application requirements.

Pump Construction:

Applications

They are suitable for supplying low abrasive, low density slurries to metallurgical, mining, coal and building materials departments.

Pump Performance Specifications:

PUMP MODEL	OEM PUMP MODEL	MAX	CAPACITY	HEAD	SPEED	MAX.Eff	NPSH
		POWER (KW)	(m3 /h)	H(m)	n(r/min)	η%	(m)
25HS-B	1.5/1B-AH	15	12.6~28.8	6~68	1200~3800	40	2~4
25HSR-B	1.5/1B-AHR	15	10.8-25.2	7-52	1400-3400	35	2~3
40HS-B	2/1.5B-AH	15	32.4~72	6~58	1200~3200	45	3.5~8
50HS-C	3/2C-AH	30	39.6~86.4	12~64	1300~2700	55	4~6
75HS-C	4/3C-AH	30	86.4~198	9~52	1000~2200	71	4~6
75HS-D	4/3D-AH	60
100HS-D	6/4D-AH	60	162~360	12~56	800~1550	65	5~8
100HS-E	6/4E-AH	120
100HSR-D	6/4D-AHR	60	144~324	12~45	800~1350	65	3~5
100HSR-E	6/4E-AHR	120
150HS-E	8/6E-AH	120	360~828	10~61	500~1140	72	2~9
150HS-R	8/6R-AH	300
150HSR-E	8/6E-AHR	120	324~720	7~49	400~1000	65	5~10
150HSR-R	8/6R-AHR	300
200HS-ST	10/8ST-AH	560	612~1368	11~61	400~850	71	4~10
200HSR-ST	10/8ST-AHR	560	540~1188	7~45	300~650	80	2.5~7.5
250HS-ST	12/10ST-AH	560	936~1980	7~68	300~800	82	6
250HSR-ST	12/10ST-AHR	560	720~1620	13~14	300~500	79	3~8
300HS-ST	14/12ST-AH	560	1260~2772	13~63	300~600	77	3~10
300HSR-ST	14/12ST-AHR	560	1152~2520	11~63	250~550	79	4~10
350HS-ST	16/14ST-AH	1200	1368~3060	11~63	250~550	79	4~10
400HS-TU	18/16TU-AH	1200	2160~5054	8~66	200~500	80	4.5~9
450HS-TU	20/18TU-AH	1200	2520~5400	13~57	200~400	85	5~10
