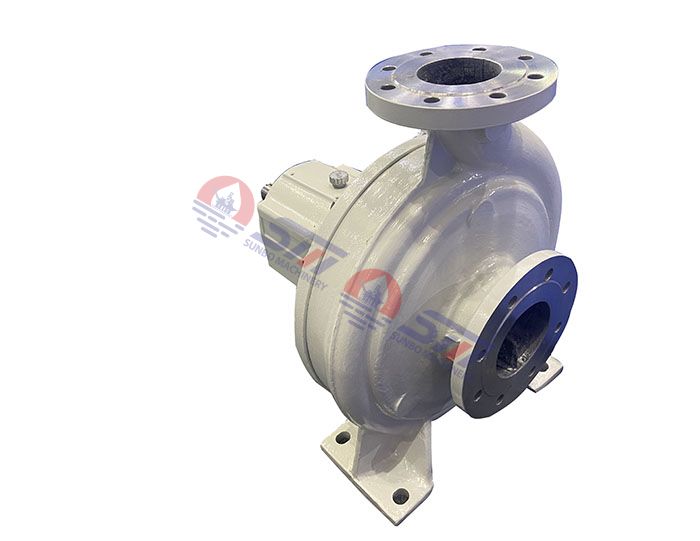

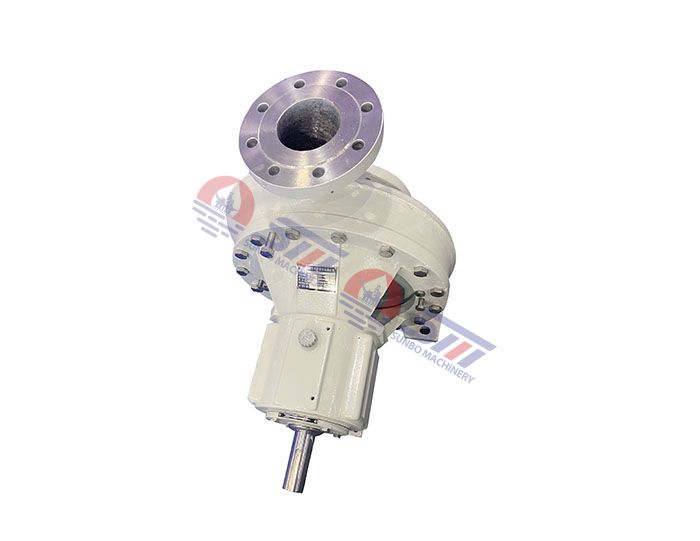

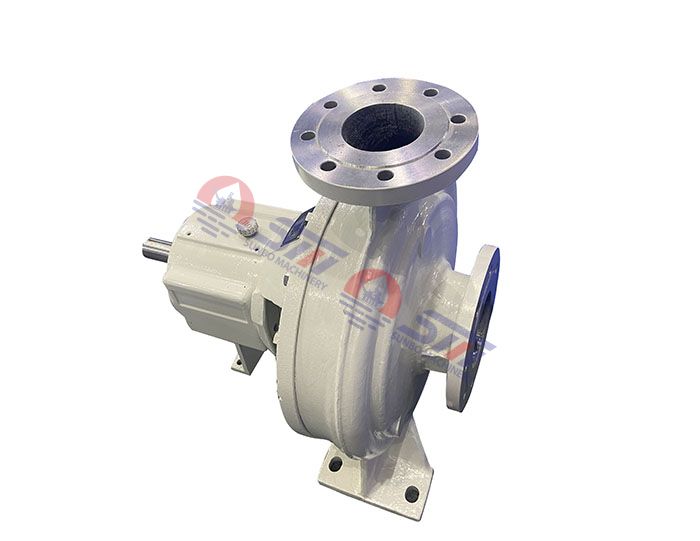

OEM Pump, OEM Pump Parts

We accept OEM orders as drawings or samples.
Material:
High Chrome: Cr15, Cr20, Cr27,Cr29, Cr30, Cr35.
Rubber: Natural rubber, butyl rubber, chloroprene rubber, hypalon.
Cast iron: Grey iron, ductile iron: HT200, HT250, QT500-7, QT400-12.
Stainless steel: 304, 316, 316L, 904L, CD4MCu, Hastalloy.
Others: Polyurethane, Ceramic, Copper, Bronze, Aluminum.

Inquire Now Next Product

Product Description

OEM Pump and Pump Parts both accepted, Let’s work together to decrease your whole business cost.

Main Pump Material List reference:

Material	Description	Application	Pump Parts
SA05	High Chrome Alloy Cr26	neutral, resistant to alkali but not acid	Impeller, Liners
SA49	Low Carbon High Chrome Alloy Cr26	usually in desulphurization condition	Impeller, Liners
SA51(A33)	Wear Resistant and Abrasion resistant alloy	usually in phosphuric acid, desulphurization and Sulfuric acid working conditions	Impeller, Liners
SC21	Martensitic Stainless Steel		Shaft Sleeve, Locating Sleeve
SC23	Austensitic Stainless Steel		Lantern Ring, Lantern Restrictor, Packing Gasket
SD21	Ductile Iron		Cover Plate, Frame Plate, Bearing Housing, Frame
SD81	Galvanized Ductile Iron		Packing Gland
SE02	20# Steel
SE62	20# Galvanised Steel
SE05	45# Steel		Shaft, Shaft Key
SE65	45# Steel
SG01	HT200
SG61	Gray Iron	Base, Bearing Housing, Frame Plate/Cover Plate, Grease Retainer, Lower Strainer	Labyrinth Ring,End Cover
SJ04	C21 Alumina Plating		Usually white color, Shaft Sleeve
SJ05	C21 Chromic Oxide Plating		Usually black color, Shaft sleeve
SQ21	Aramid fiber, yellow		Packing
SR08	Natural Rubber		impeler
SR26			impeller
SR33	Natural Rubber		cyclone liners, pump liners, impeller etc.
SR38	Natural Rubber		impeller
SR55	Natural Rubber		impellers, liners
SS01	EPDM	Acid Resistant but not wear resisting,high temperature	Discharge Gasket, Intake Gasket, Volute Liner Seal, also for Wet End Parts
SS10	Nitrile Butadiene Rubber		O Rings
SS12			impeller, liners
SS31	Hypalon
SS21	Butyl Rubber	high temperature resistant and antioxidant	impellers, liners
SS42	Neoprene Rubber	High Temperature resistant, weather resistance,ozone resistance, Grease Resistance	impeller, Liners
SU01	Polyurethane	Tension Resistance, High Tensile strength	impeller, Liners
SS44	Neoprene Rubber
SS50	Fluororubber	High Temperature and acid resistant,	Gasket, wet end parts
SY08	Ceramic
SJ31			Shaft Sleeve
J26	Ceramic coated stainless steel	J26 consists of Y03 Ceramic Coating deposited onto a C26 substrate using a special spray technique. The coating is very hard and offers excellent abrasive wear resistance. The spray technique gives a coating with minimal porosity and excellent interlayer bond strength.J26 is expansion and will not spall.
