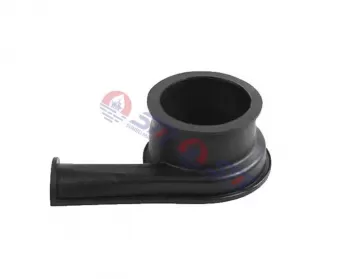

Hydrocyclone Rubber Parts, Rubber Cyclone Parts

  • We accept OEM orders as drawings or samples, casting with material: High Chrome: Cr15, Cr20, Cr27,Cr29, Cr30, Cr35; Rubber: Natural rubber, butyl rubber, chloroprene rubber, hypalon;Cast iron: Grey iron, ductile iron: HT200, HT250, QT500-7, QT400-12;Stainless steel: 304, 316, 316L, 904L, CD4MCu, Hastalloy;Others: Polyurethane, Ceramic, Copper, Bronze, Aluminum

Share

Hydrocyclone Rubber Parts, Rubber Cyclone Parts

For pump model: 150CVAX, 250CVAX, 400CVAX, 500CVAX, 650CVAX.

Material: Natural Rubber

Part Code: 0618CVX,06035CVX-41,06004C2-6,06064C17,06064C20, 06064C25,06064C30, 06064C35,      10018CVAX,10035CVAX73...


Main Pump Material List reference:

Material
Description
Application
Pump Parts
SA05
High Chrome Alloy Cr26
neutral, resistant to alkali but not acid
Impeller, Liners
SA49
Low Carbon High Chrome Alloy Cr26
usually in desulphurization condition
Impeller, Liners
SA51(A33)
Wear Resistant and Abrasion resistant alloy
usually in phosphuric acid, desulphurization and Sulfuric acid working conditions
Impeller, Liners
SC21
Martensitic Stainless Steel

Shaft Sleeve, Locating Sleeve
SC23
Austensitic Stainless Steel

Lantern Ring, Lantern Restrictor, Packing Gasket
SD21
Ductile Iron

Cover Plate, Frame Plate, Bearing Housing, Frame
SD81
Galvanized Ductile Iron

Packing Gland
SE02
20# Steel

SE62
20# Galvanised Steel

SE05
45# Steel

Shaft, Shaft Key
SE65
45# Steel

SG01
HT200

SG61
Gray Iron
Base, Bearing Housing, Frame Plate/Cover Plate, Grease Retainer, Lower Strainer
Labyrinth Ring,End Cover
SJ04
C21 Alumina Plating

Usually white color, Shaft Sleeve
SJ05
C21 Chromic Oxide Plating

Usually black color, Shaft sleeve
SQ21
Aramid fiber, yellow

Packing
SR08
Natural Rubber

impeler
SR26

impeller
SR33
Natural Rubber

cyclone liners, pump liners, impeller etc.
SR38
Natural Rubber

impeller
SR55
Natural Rubber

impellers, liners
SS01
EPDM
Acid Resistant but not wear resisting,high temperature
Discharge Gasket, Intake Gasket, Volute Liner Seal, also for Wet End Parts
SS10
Nitrile Butadiene Rubber

O Rings
SS12

impeller, liners
SS31
Hypalon

SS21
Butyl Rubber
high temperature resistant and antioxidant
impellers, liners
SS42
Neoprene Rubber
High Temperature resistant, weather resistance,ozone resistance, Grease Resistance
impeller, Liners
SU01
Polyurethane
Tension Resistance, High Tensile strength
impeller, Liners
SS44
Neoprene Rubber

SS50
Fluororubber
High Temperature and acid resistant,
Gasket, wet end parts
SY08
Ceramic

SJ31

Shaft Sleeve
J26
Ceramic coated stainless steel
J26 consists of Y03 Ceramic Coating deposited onto a C26 substrate using a special spray technique. The coating is very hard and offers excellent abrasive wear resistance. The spray technique gives a coating with minimal porosity and excellent interlayer bond strength.J26 is expansion and will not spall.
