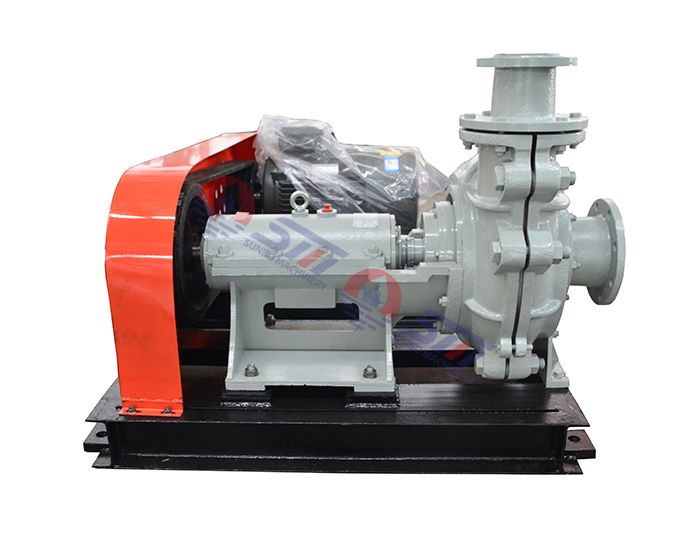

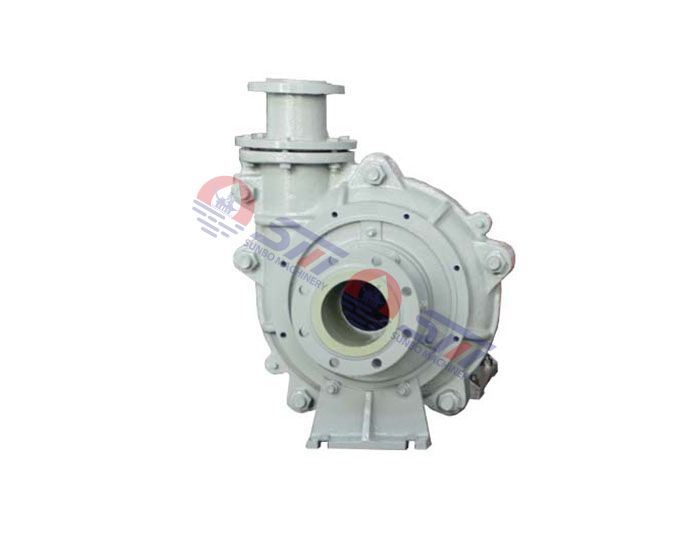

PN/PNL Slurry Pump

PN type slurry mud pump is a single-stage single-suction horizontal centrifugal pump, which is used in mining, metallurgy, municipal construction, chemical industry, printing and dyeing, etc. to suck mud containing quicksand and small mud blocks. It is used for corrosive liquids; it can also be used to suck river mud, pond mud, feces, and slurry drinks in rural areas; it can also be used to transport sand liquid in urban factories, and to suck yellow sand and mud in underground tunnels.

Inquire Now Next Product

Product Description

PN type slurry mud pump is a single-stage single-suction horizontal centrifugal pump, which is used in mining, metallurgy, municipal construction, chemical industry, printing and dyeing, etc. to suck mud containing quicksand and small mud blocks. It is used for corrosive liquids; it can also be used to suck river mud, pond mud, feces, and slurry drinks in rural areas; it can also be used to transport sand liquid in urban factories, and to suck yellow sand and mud in underground tunnels.

Max. saturation of liquid (as calculated by weight): 50%.

PN, PNL slurry pump models: 1PN, 2PN, 3PN, 4PN, 6PN, 8PN, 10PN, 12PN, 2PNL and 3PNL.

Features:

★ Wet part with wear-resistant and corrosive-resistant cast iron, long service life.

★ Impeller and guard plate gap can be adjusted in time to maintain a high efficiency work.

★ ≥4 inch pump, the pump bearing is directly in the horizontal open bracket, Easy to adjust the demolition inspection in a timely manner, and in the oil tank with water-cooled snake-like tube to improve the bearing working conditions.

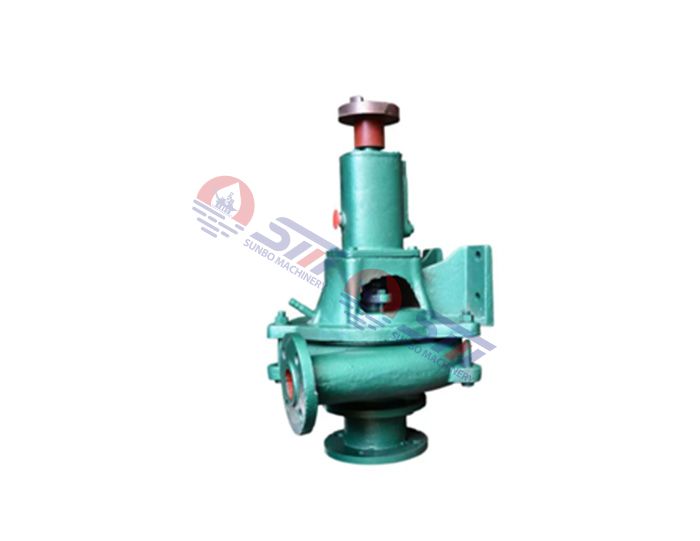

★ ≥8 inch have big pump body, Using a separate structure of the form, easy dis-assembly and maintenance. Currently, our factory product PN and PNL mud pump mainly have about ten types, such as: 1PN, 2PN, 2PNL, 3PN, 3PNL, 4PN, 6PN, 8PN, 10PN, 12PN, etc. In these models, except 2PNL, 3PNL are vertical type, the rest types are all horizontal single - stage single - suction cantilever mud pump.

Specifications:

● Inlet diameter:DN=25mm-150mm(1"-6")

● Capacity:Q=12-280m³/h

● Head:H=12-50m

● Speed:n=1450r/min & 980r/min

● Matched power:P=1.5-75kW

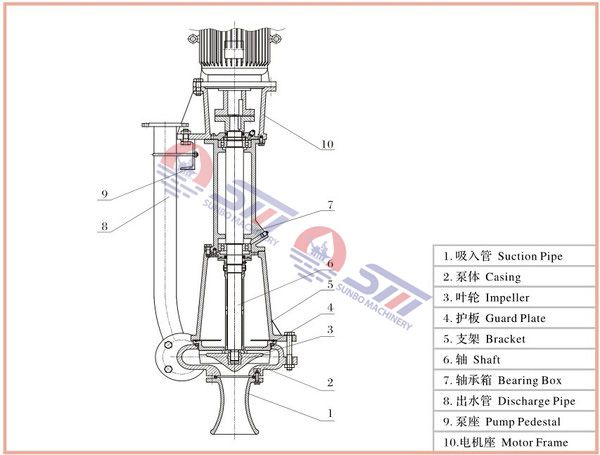

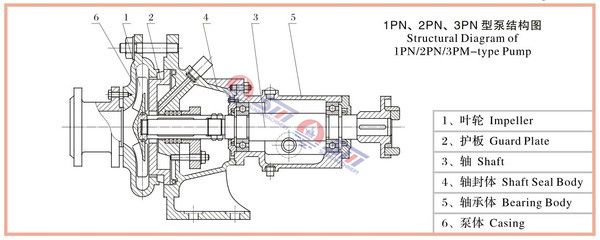

Sectional Drawing PN/PNL Slurry Pump:

PN/PNL Slurry Pump

PN/PNL Slurry Mud Pump Performence Specifications:

Performance Parameter:
Model	Capacity	Head	Speed	Allowed NPSH m	Efficiency%	Power kw		Pump weight	Diam.mm
	m3/h	m	r/min			Shaft power	Motor power	kg	Inlet	Outlet
1PN	7.2	14	1430	0.53	21	1.3	3	120	50	25
	12	13			30	1.41
	16	12			35	1.5
2PN	30	22	1450	1.32	33	5.45	11	150	96	50
	47	19			39	6.25
	58	17			39	6.9
3PN	54	26	1470	2.35	32	12	22	280	90	85
	108	21			42	14.7
	151	15			37	16.7
4PN	100	41	1470	2.95	46	24.3	55	1000	150	100
	150	39			55	29
	200	37			61	33.1
4PN(1)	41.5	51	1470	1.92	23	25	55	1000	150	100
	80	50			36	30.2
	111	49			44.5	33.1
4PN(2)	52	51	980	2.2	26	28	75	1000	150	100
	100	50			37	37
	138	49			47	39
6PN	230	27	980	2.59	56	30.2	75	1200	200	150
	280	26			60	33
	320	25			62	35.2
