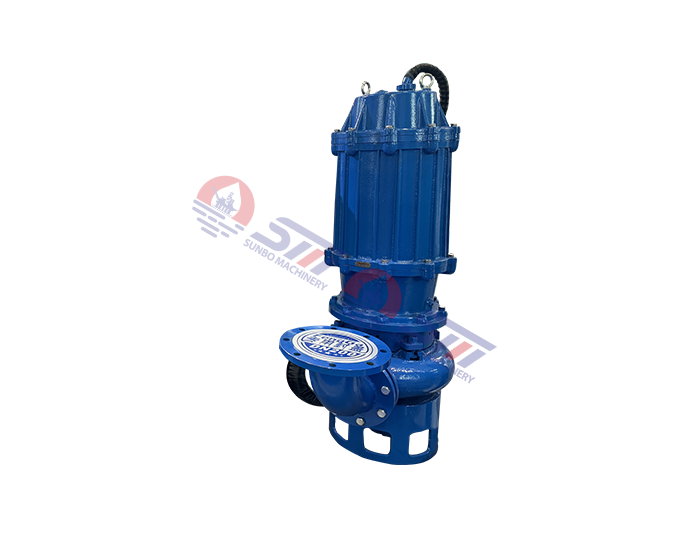

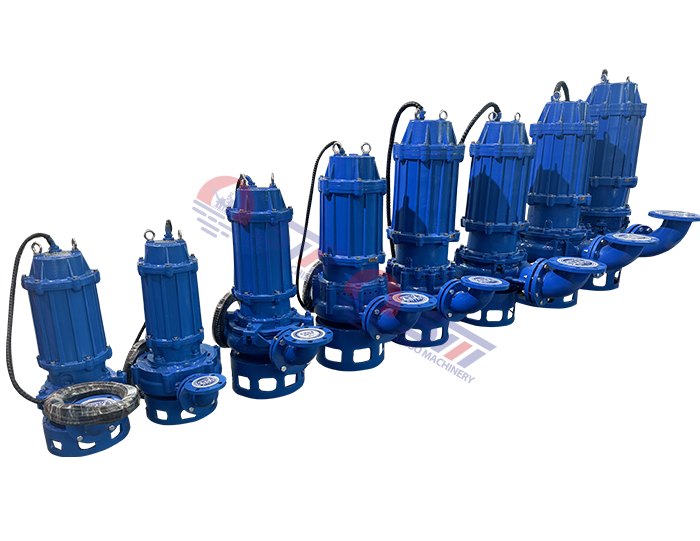

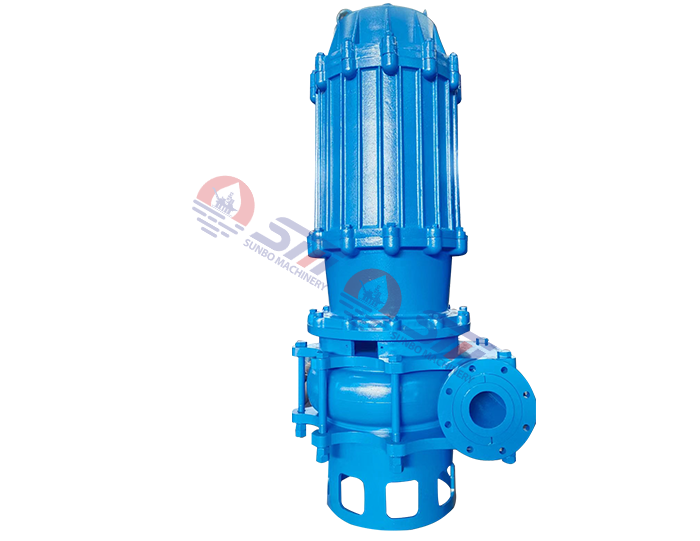

WQ Submersible Sewage Pump

(WQ) type Non-Clog Waste Water Centrifugal Submersible Sewage Pump, Pond Pump, Garden Pump is made up of motor and pump, which are separated through oil isolation room and mechanical seal, it is short in length that motor and pump share the same axle (rotor), the structure is compact.

Inquire Now Next Product

Product Description

WQ Non-Clog Submersible Sewage Pump

Application and Installation
This pump is widely applied in many fields, such as industry, agriculture, mine, building construction, environment protection, etc. for example, mud water, grey water, sewage, excrement, domestic wastewater, etc. This pump is the ideal equipment for construction site, desilting of pool as well as irrigation and drainage in agriculture.

Operating Limits

★ Trans medium's PH: 6-8.5

★ Fluid temperature limit: <40 °C

★ Max ambient temperature: <40 °C

★ Operating depth: <5m

★ Maximum sand content: 0.01%

★ Pump working position: More than 0.5m over the bottom, should not be inserted into sludge.

★ Medium PH:5-9

Materials

● Motor housing: Cast iron

● Impeller: Cast iron

● Motor wire: Copper

● Mechanical seal: Silicon carbide- Graphite

● Shaft: CS 45# or SS

WQ Sewage Pump Specifications:

Model	Discharge (mm)	Capacity (m3/h)	Head (m)	Power (kw)	Speed (r/min)	Eff. (%)
WQ25-8-22-1.1	25	8	22	1.1	2900	38.5
WQ32-12-15-1.1	32	12	15	1.1	2900	40
WQ40-15-15-1.5	40	15	15	1.5	2900	45.1
WQ40-15-30-2.2	40	15	30	2.2	2900	48
WQ50-20-7-0.75	50	20	7	0.75	1450	54
WQ50-10-10-0.75	50	10	10	0.75	1450	56
WQ50-20-15-1.5	50	20	15	1.5	2900	55
WQ50-15-25-2.2	50	15	25	2.2	2900	56
WQ50-18-30-3	50	18	30	3	2900	58
WQ50-25-32-5.5	50	25	32	5.5	2900	53
WQ50-20-40-7.5	50	20	40	7.5	2900	55
WQ65-25-15-2.2	65	25	15	2.2	2900	52
WQ65-37-13-3	65	37	13	3	2900	55
WQ65-25-30-4	65	25	30	4	2900	58
WQ65-30-40-7.5	65	30	40	7.5	2900	56
WQ65-35-50-11	65	35	50	11	2900	60
WQ65-35-60-15	65	35	60	15	2900	63
WQ80-40-7-2.2	80	40	7	2.2	1450	52
WQ80-43-13-3	80	43	13	3	2900	50
WQ80-40-15-4	80	40	15	4	2900	57
WQ80-65-25-7.5	80	65	25	7.5	2900	56
WQ100-80-10-4	100	80	10	4	1450	62
WQ100-110-10-5.5	100	110	10	5.5	1450	66
WQ100-100-15-7.5	100	100	15	7.5	1450	67
WQ100-85-20-7.5	100	85	20	7.5	1450	68
WQ100-100-25-11	100	100	25	11	1450	65
WQ100-100-30-15	100	100	30	15	1450	66
WQ100-100-35-18.5	100	100	35	18.5	1450	65
WQ125-130-15-11	125	130	15	11	1450	62
WQ120-130-20-15	125	130	20	15	1450	63
WQ150-145-9-7.5	150	145	9	7.5	1450	63
WQ150-180-15-15	150	180	15	15	1450	65
WQ150-180-20-18.5	150	180	20	18.5	1450	75
WQ150-180-25-22	150	180	25	22	1450	76
WQ150-130-30-22	150	130	30	22	1450	75
WQ150-180-30-30	150	180	30	30	1450	73
WQ150-200-30-37	150	200	30	37	1450	70
WQ200-300-7-11	200	300	7	11	1450	73
WQ200-250-11-15	200	250	11	15	1450	74
WQ200-400-10-22	200	400	10	22	1450	76
WQ200-400-13-30	200	400	13	30	1450	73
WQ200-250-15-18.5	200	250	15	18.5	1450	72
WQ200-300-15-22	200	300	15	22	1450	73
WQ200-250-22-30	200	250	22	30	1450	71
WQ200-350-25-37	200	350	25	37	1450	75
WQ200-400-30-55	200	400	30	55	1450	70
WQ250-600-9-30	250	600	9	30	1450	74
WQ250-600-12-37	250	600	12	37	980	78
WQ250-600-15-45	250	600	15	45	1450	75
WQ250-600-20-55	250	600	20	55	1450	73
WQ250-600-25-75	250	600	25	75	1450	73
WQ300-800-12-45	300	800	12	45	980	76
WQ300-500-15-45	300	500	15	45	980	70
WQ300-800-15-55	300	800	15	55	980	73
WQ300-600-20-55	300	600	20	55	980	75
WQ300-800-20-75	300	800	20	75	980	78
WQ300-950-20-90	300	950	20	90	980	80
WQ300-1000-25-110	300	1000	25	110	980	82
WQ350-1100-10-55	350	1100	10	55	980	84.5
WQ350-1500-15-90	350	1500	15	90	980	82.5
WQ350-1200-18-90	350	1200	18	90	980	83.1
WQ350-1100-28-132	350	1100	28	132	740	83.2
WQ350-1000-36-160	350	1000	36	160	740	78.5
WQ400-1500-10-75	400	1500	10	75	980	82.1
WQ400-2000-15-132	400	2000	15	132	740	85.5
WQ400-1700-22-160	400	1700	22	160	740	82.1
WQ400-1500-26-160	400	1500	26	160	740	83.5
WQ400-1700-30-200	400	1700	30	200	740	83.5
WQ400-1800-32-250	400	1800	32	250	740	82.1
WQ500-2500-10-110	500	2500	10	110	740	82
WQ500-2600-15-160	500	2600	15	160	740	83
WQ500-2400-22-220	500	2400	22	220	740	84
WQ500-2600-24-250	500	2600	24	250	740	82
