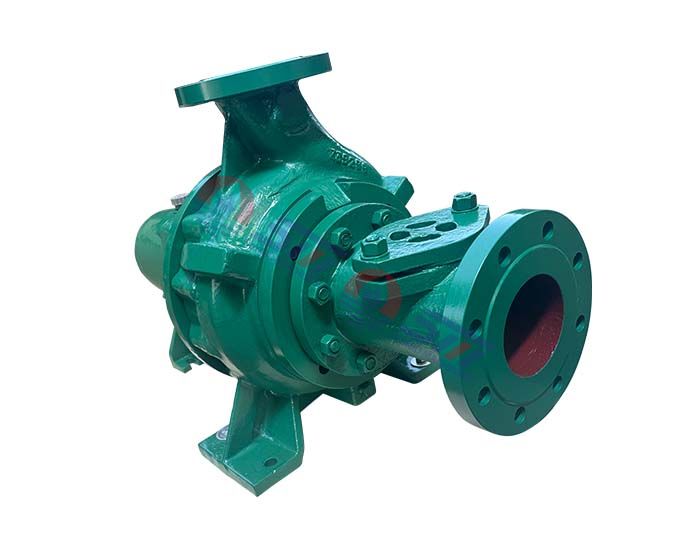

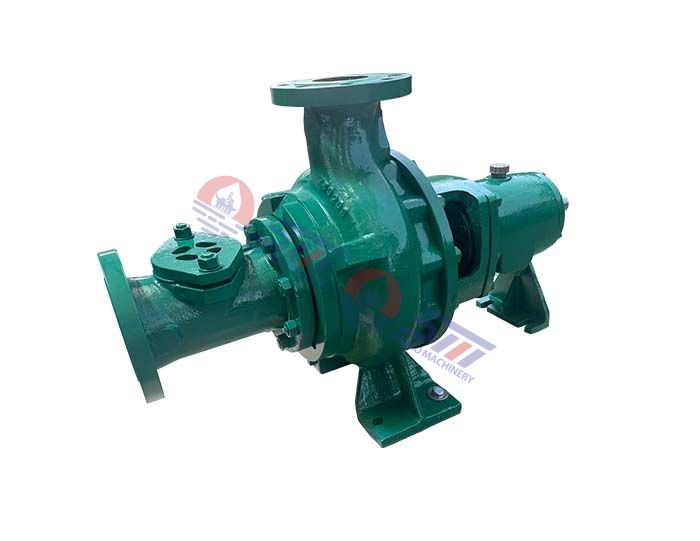

Centrifugal Pump KWPK80-250 sewage pumps

  • Horizontal Non-Clogging Centrifugal Kwpk Sewage Pump

Share

KWPK type non-clogging centrifugal pump is a horizontal, single-stage axial suction centrifugal pump. It can be used in urban water supply, sewage treatment engineering, chemical industry, steel and paper making, sugar making and canned food industries. KWP type pump can transport clean water, various sewage, waste water and sludge. Therefore used in water supply, sewage treatment plants, breweries, mines and chemical and construction industry sectors



Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and vortex impeller.


KWPK Type Non Clogging Centrifugal Pump


Impeller
KWPK pumps are supplied with four kinds of impeller for suction.

★ K impeller--- Closed non-clogging impeller

With Wide flow channel, For clear water, sewage, sewage mud and medium containing solid.

★ N impeller--- Closed multi-vane impeller.

For clear water, Pulp, sugar juice, oil wastewater and media containing solid suspension.

★ O impeller--- Open impeller.

Same application as N impeller but also including fluids containing gas.

★ F impeller­--- Free flow impeller.

For handle large and long solids.(such as long fiber, sticky particles, paper pulp , rubber balls and so on)and fluids containing air.


Shaft seals
● There are three types of shaft seals for BDKWPK pumps:

● Packing seal

● High temperature packing seal

● Mechanical seal


Specifications

Discharge Diameters1.7" to 20" (40mm to 500mm)
Heads Through 328ft (100m)
Flow ratesThrough 17, 600gpm (4, 000m3/h)


Features:
● Reinforced, axially adjustable bearing assembly on all pumps

● Shaft seal: Mechanical seal integrated into the casing cover, or gland packing

● Even cast iron pumps are supplied with pump internals (impeller and wear plate) made of wear-resistant hard metal



Application:

★ Chemical and process industry

★ Food and beverage industry

★ Paper and cellulose industry

★ Flue gas desulphurization and

★ Coal upgrading plants

★ Industrial effluent treatment systems

★ Seawater desalination



Avaliable Size:

KWPK40-250,KWPK50-160,KWPK50-200,KWPK65-200,KWPK65-315,KWPK65-400,KWPK80-250,KWPK80-315,KWPK80-400,KWPK100-250,KWPK100-315,KWPK100-400,KWPK125-315,KWPK125-400,KWPK125-500,KWPK150-315,KWPK150-400,KWPK150-500,KWPK200-315,KWPK200-400,KWPK200-500,KWPK250-315,KWPK250-400,KWPK250-500,KWPK250-630,KWPK300-400,KWPK300-500,KWPK350-400.
