Horizontal Non-Clogging Centrifugal KWPK Sewage Pump parts

Impeller
● Centrifugal KWPK Sewage Pump Parts are supplied with four kinds of impeller for suction.

● K impeller--- Closed non-clogging impeller
● With Wide flow channel, For clear water, sewage, sewage mud and medium containing solid.
● N impeller--- Closed multi-vane impeller.
● For clear water, Pulp, sugar juice, oil wastewater and media containing solid suspension.
● O impeller--- Open impeller.
● Same application as N impeller but also including fluids containing gas.
● F impeller--- Free flow impeller.
● For handle large and long solids.(such as long fiber, sticky particles, paper pulp , rubber balls and so on)and

   fluids containing air.

Shaft seals
● There are three types of shaft seals for BDKWPK pumps:
● Packing seal
● High temperature packing seal
● Mechanical seal

Features:
● Reinforced, axially adjustable bearing assembly on all pumps
● Shaft seal: Mechanical seal integrated into the casing cover, or gland packing
● Even cast iron pumps are supplied with pump internals (impeller and wear plate) made of wear-resistant hard

   metal

Application:
● Chemical and process industry
● Food and beverage industry
● Paper and cellulose industry
● Flue gas desulphurization and
● Coal upgrading plants
● Industrial effluent treatment systems

● Seawater desalination

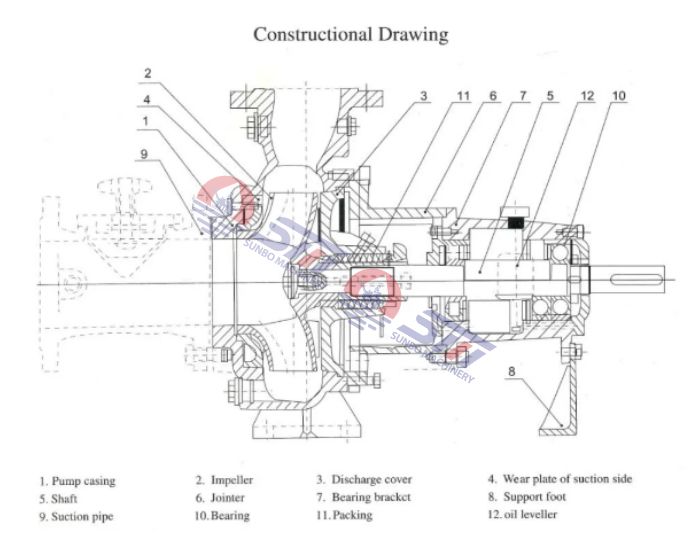

Centrifugal KWPK Sewage Pump Structure:
