Mission Sandmaster Pump ideal for use in applications such as oilfield frac trucks as well as blending and pump charging service. The SANDMASTER's variable speed hydraulic drive make this an excellent pump for water well drilling applications.

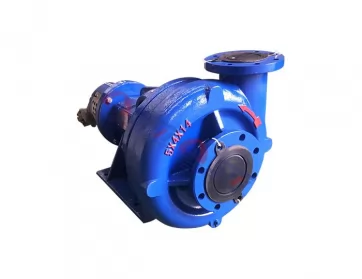

SSA series Mission Sandmaster Pump is designed equivalent to Mission Sandmaster Centrifugal Pumps. They have compact structure and can be adapted for hydraulic motor drive, which makes it ideal for limited space. They are popular mounted on frac truck and mixing unit as blending or pump charging service. They include virtually all of the features of MAGNUM I pumps. Size covers 3x2x13 to 10x8x14, with speed up to 3500 rpm.
Application
As an extension of the Magnum pump line, these pumps offer our quality manufacturing and distribution network to increase solutions to pumping requirements in the oilfield industry from a reliable, industry-specific partner.
Completely interchangeable with Mission Sandmaster and MCM Mud Master pump and all other popular brand design in the market; Spare parts are interchangeable with the standard model.
Mission Magnum Sandmaster Pump Model List
SSA3x2x13, SSA4x3x13, SSA5x4x14, SSA6x5x11, SSA6x5x14, SSA8x6x11, SSA 8x6x14, SSA10x8x14.
| Model | SSA10×8×14 | SSA8×6×14 | SSA8×6×11 | SSA6×5×14 | SSA6×5×11 | SSA5×4×14 | SSA4×3×13 | SSA3×2×13 |
| Discharge capacity | 260～300 m3/h | 240～260 m3/h | 220～240 m3/h | 200～220 m3/h | 120～200 m3/h | 80～120 m3/h | 60～80 m3/h | 50～60m3/h |
| Pump Head | 28~33 | 28～33m | 24～28m | 24～28m | 24～28m | 24～28m | 22～28m | 22～28m |
| Efficiency | 65% | 65% | 65% | 65% | 65% | 65% | 65% | 65% |
| Motor power | 75/90 kW | 55/75 kW | 37/45 kW | 37/45/55 kW | 30/37/45 kW | 18.5/22/30 kW | 11/15 kW | 7.5/11 kW |
| Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
MISSION MAGNUM AND SANDMATER SPARE PARTS
| ITEM | Qty.of 1 pump | MISSIONPART No. | DESCRIPTION | Qty. of 1 year | Qty. of 2 years | Qty. of 3 years | ||
| 1* | 1 | See below | Casing | 1 | 1 | 2 | ||
| 1A | 1 | 10399-46-1 | Gasket,casing | |||||
| 1B | 12 | 3932-61 | Nut,casing | |||||
| 1C | 12 | 3862-76 | Stud,casing | |||||
| 1D | 1 | 8505-04-01 | Plug,Casing Drain | |||||
| 1E | 1 | 8505-04-01 | Plug,flush line | |||||
| 2* | 1 | See below | Impeller | 2 | 3 | 4 | ||
| 2A | 1 | 19110-72 | Seal,impeller | |||||
| 2B | 1 | Washer,impeller | ||||||
| 2C | 1 | Bolt,impeler lock | 1 | 1 | 2 | |||
| 3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | 1 | ||||
| 3*& | 1 | 20614-01-30 | Stuffing box,packed | |||||
| 3A | 2 | 3861-117 | Bolt,stuffing box | |||||
| 3B& | 1 | 19368-01 | Grease fitting | |||||
| 4 | 1 | 20622A | Gland assy,packing | 0 | 0 | 1 | ||
| 5A# | 1 | 22451-1 | Seal,mechanical | 1 | 2 | 3 | ||
| 5A# | 3 | Packing, Shaft - M.S. Backup | 2 | 4 | 6 | |||
| 6 | 2 | B3701A | Bolt assy,gland | |||||
| 7 | 1 | 20612-02-33 | Shaft | 1 | 1 | 2 | ||
| 7A | 1 | 20943-04A | Sleeve,shaft | 2 | 3 | 4 | ||
| 7B | 1 | 4371-5-21 | Key,shaft | |||||
| 7C | 1 | 23444-01-72 | Seal,shaft sleeve | |||||
| 8 | 1 | 22210-1A | Deflector assembly | |||||
| 9 | 1 | 20618-12-1 | Frame,grease lubricated | 0 | 0 | 1 | ||
| 9C | 1 | 8505-04-01 | Plug, Frame Drain | |||||
| 9D | 1 | 8267-01 | Breather | |||||
| 9G | 3 | 2538-1H | Bolt,casing jack | |||||
| 10A | 1 | 20626 | Cover,inboard bearing | 0 | 0 | 1 | ||
| 10B | 1 | 20625 | Gasket,I.B.Brg.Cover | |||||
| 10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | 2 | 4 | 6 | ||
| 10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | |||||
| 10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | |||||
| 10H | 1 | 19368-01 | Grease fitting | |||||
| 11 | 1 | 20615-1 | Bearing,inboard | 1 | 1 | 2 | ||
| 12 | 1 | 20624-01-01 | Housing,O.B.bearing | 0 | 0 | 1 | ||
| 12A | 1 | 7496-253 | Seal, O.B.Brg.housing | |||||
| 12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | |||||
| 12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | |||||
| 13 | 1 | 20617A | Cover,O.B.Bearing | 0 | 0 | 1 | ||
| 13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | |||||
| 13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | |||||
| 13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | 2 | 4 | 6 | ||
| 13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | |||||
| 14 | 2 | 20616-1 | Bearing, O.B. | 1 | 1 | 2 | ||
| 14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | |||||
| 14B | 1 | 6123-4 | Locknut, O.B.Bearing | |||||
| Casings | ||||||||
| 1* | 1 | 19203-01-30A | Casing,3×2×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19205-01-30A | Casing,4×3×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19222-01-30A | Casing,5×4×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19122-01-30A | Casing,6×5×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19123-01-30A | Casing, 6×5×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19763-01-30A | Casing, 8×6×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19117-01-30A | Casing,8×6×14 | 1 | 1 | 2 | ||
| 1* | 1 | 20937-01-30A | Casing,10×8×14 | 1 | 1 | 2 | ||
| Impellers | ||||||||
| 2* | 1 | 19204-XX-30 | Impeller,3×2×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19206-XX-30 | Impeller,4×3×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19224-XX-30 | Impeller,5×4×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller,6×5×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19116-A0-30 | Impeller,8×6×14 | 2 | 3 | 4 | ||
| 2* | 1 | 21867-XX-30 | Impeller,10×8×14 | 2 | 3 | 4 | ||
