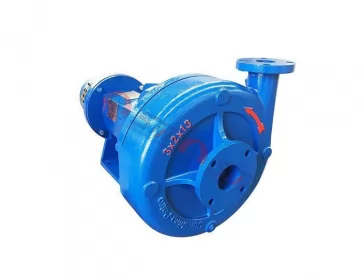

SSA series Mission Sandmaster Pump is designed equivalent to Mission Sandmaster Pump. They have compact structure and can be adapted for hydraulic motor drive, which makes it ideal for limited space.
Mission Magnum Sandmaster Pumps are popular mounted on frac truck and mixing unit as blending or pump charging service. They include virtually all of the features of MAGNUM I pumps. Size covers 3x2x13 to 10x8x14, with speed up to 3500 rpm.
Feature and Specification
● Premium choice for limited space, compact structure
● Includes all of features of Magnum, but 4 in shorten frame
● Size from 3 x 2 x 13 to 10 x 8 x 14
● Flow rates from a few gallons per minute up to 4300GPM
● Head pressure up to 550 feet
● Best utilized requiring up to 200HP
● Equivalent to MCM Mud Master series pump
● Mostly driven by hydraulic motors
● Variable speed hydraulic drive makes it excellent for water well drilling and well service mounted truck
Sunbo Mission Magnum Sandmaster Pump Parts List
| ITEM | QTY EA | DESCRIPTION | MATER. | PART NUMBER |
| 1* | 1 | Casing | Hard Iron | See below |
| 1A | 1 | Gasket, casing | Fiber | 648403012 |
| 1B | 12 | Nut, casing 3/4-10 hex head | Stl., | 648402014 |
| 1C | 12 | Stud, casing 3/4-10 x 3 1/4”long | Stl., | 648401115 |
| 1D | 1 | Plug, casing drain | Stl | 86485503 |
| 1E | 1 | Plug, flush line | Iron | 646400507 |
| 2* | 1 | Impeller | Hard Iron | See below |
| 2A | 1 | Seal, impeller | Viton | 64845082 |
| 2B | 1 | Washer, impeller | Stl | 7300239 |
| 2C | 1 | Bolt, impeller lock | Stl | 7415648 |
| 3* | 1 | Stuffing box, mech.seal | Hard Iron | 641116157 |
| 3* | 1 | Stuffing box, packed | Hard Iron | 643365042 |
| 3A | 2 | Bolt, stuffing box 1/2-13 x 1 1/4” | Stl | 648401016 |
| 3B | 1 | Grease fitting | Brass | 601499403 |
| 4 | 1 | Gland assy., packing | Stl. 304 | 641103338 |
| 5A# | 1 | Seal, mechanical | Tungsten Carbide | 648414308 |
| 5A# | 3 | Packing,Shaft-M.S. Backup | Teflon | 648402600 |
| 5A~ | 1 | Graphite Packing,Shaft | Graphite | 661007005 |
| 5A~ | 1 | Teflon Packing, Shaft | Teflon | 661007011 |
| 5A~ | 1 | Kevlar Packing, Shaft | Kevlar | 661007006 |
| 1 | Lantern Ring | PP | 648408607 | |
| 6 | 2 | Bolt assy,gland | Stl 304 | 601102494 |
| 7 | 1 | Shaft | 40Cr | 646490557 |
| 7A | 1 | Sleeve, shaft, M.S. | SS316 | 641102182 |
| 7A | 1 | Sleeve, shaft, Pack | Ceramic Coated | 641102181 |
| 7B | 1 | Key, shaft | Stl | 601212392 |
| 7C | 1 | Seal, shaft sleeve | Viton | 648415156 |
| 8 | 1 | Deflector assembly | Composit | 641116108 |
| 9 | 1 | Frame, grease lubricated | Cast iron | 644302499 |
| 9C | 1 | Plug, Frame Drain | Stl | 601474737 |
| 9D | 1 | Breather | Stl | / |
| 9E | ||||
| 9F | Oil cups b18 | Al | ||
| 9G | Bolt, casing jack | Stl | / | |
| 10A | 1 | Cover, inboard bearing | Iron | 644303109 |
| 10B | 1 | Gasket, I.B.Brg. Cover | fiber | 648408706 |
| 10C | 1 | Oil seal, I.B.Brg. Cover | Buna-n | 648408300 |
| 10D | 2 | Bolt, I.B.Brg. Cover 1/2”-13 x 1 1/2” Long | Stl | 601407505 |
| 10E | 2 | Nut, I.B.Brg.Cover | Stl | 601408560 |
| 10G | 1 | Grease fitting | Brass/Stl | 661010033 |
| 11 | 1 | Bearing, inboard | Vendor | 661009010 |
| 12 | 1 | Housing, O.B.bearing | Iron | 644308504 |
| 12A | 1 | Seal, O.B.Brg. housing | Buna-n | 648402295 |
| 12B | 4 | Bolts, O.B.Brg. housing 1/2”-13 x 1 1/2” Long | Stl | 648401057 |
| 12C | 2 | Nut, O.B.Brg.housing 1/2”-13 jam nut | Stl | 658404702 |
| 13 | 1 | Cover,O.B.Bearing | Iron | 641103296 |
| 13A | 1 | Grease zerk, O.B.Brg.Cvr. | Brass/Stl | 661010020 |
| 13B | 1 | O-ring, O.B.Brg.Cover | Buna-n | 72200017 |
| 13C | 1 | Oil seal, O.B.Brg.Cover | Buna-n | 648408359 |
| 13D | 2 | Bolt, O.B.Brg.Cover 3/8-16 x 1” Long | Stl | 648401081 |
| 14 | 2 | Bearing, O.B.(2 Req’d) | Vendor | 648408201S |
| 14A | 1 | Lockwasher,O.B.Bearing | Stl | 648402105 |
| 14B | 1 | Locknut, O.B.Bearing | Stl | 648402055 |
| 15 | 1 | Hydraulic motor adaper | Stl | / |
| 15A | 1 | Spacer, Hydraulic motor | Stl | / |
| 15B | 1 | Guard, Hydraulic drive adapter | 304SS | / |
| 15C | 2 | Bolt, Adapter guard | Stl | / |
| 15D | 8 | Bolt, Adapter spacer | Stl | / |
Completely interchangeable with Mission Sandmaster and MCM Mud Master and all other popular brand design in the market;
Spare parts are interchangeable with the standard model.
| Model | SSA10×8×14 | SSA8×6×14 | SSA8×6×11 | SSA6×5×14 | SSA6×5×11 | SSA5×4×14 | SSA4×3×13 | SSA3×2×13 |
| Discharge capacity | 260～300 m3/h | 240～260 m3/h | 220～240 m3/h | 200～220 m3/h | 120～200 m3/h | 80～120 m3/h | 60～80 m3/h | 50～60m3/h |
| Pump Head | 28~33 | 28～33m | 24～28m | 24～28m | 24～28m | 24～28m | 22～28m | 22～28m |
| Efficiency | 65% | 65% | 65% | 65% | 65% | 65% | 65% | 65% |
| Motor power | 75/90 kW | 55/75 kW | 37/45 kW | 37/45/55 kW | 30/37/45 kW | 18.5/22/30 kW | 11/15 kW | 7.5/11 kW |
| Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
Common applications
● Pump Charging Service
● Blending and Cement
● Water well Drilling
● Oilfield Frac Trucks
MISSION SANDMATER PUMP PARTS
| ITEM | Qty.of 1 pump | MISSIONPART No. | DESCRIPTION | Qty. of 1 year | Qty. of 2 years | Qty. of 3 years | ||
| 1* | 1 | See below | Casing | 1 | 1 | 2 | ||
| 1A | 1 | 10399-46-1 | Gasket,casing | |||||
| 1B | 12 | 3932-61 | Nut,casing | |||||
| 1C | 12 | 3862-76 | Stud,casing | |||||
| 1D | 1 | 8505-04-01 | Plug,Casing Drain | |||||
| 1E | 1 | 8505-04-01 | Plug,flush line | |||||
| 2* | 1 | See below | Impeller | 2 | 3 | 4 | ||
| 2A | 1 | 19110-72 | Seal,impeller | |||||
| 2B | 1 | Washer,impeller | ||||||
| 2C | 1 | Bolt,impeler lock | 1 | 1 | 2 | |||
| 3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | 1 | ||||
| 3*& | 1 | 20614-01-30 | Stuffing box,packed | |||||
| 3A | 2 | 3861-117 | Bolt,stuffing box | |||||
| 3B& | 1 | 19368-01 | Grease fitting | |||||
| 4 | 1 | 20622A | Gland assy,packing | 0 | 0 | 1 | ||
| 5A# | 1 | 22451-1 | Seal,mechanical | 1 | 2 | 3 | ||
| 5A# | 3 | Packing, Shaft - M.S. Backup | 2 | 4 | 6 | |||
| 6 | 2 | B3701A | Bolt assy,gland | |||||
| 7 | 1 | 20612-02-33 | Shaft | 1 | 1 | 2 | ||
| 7A | 1 | 20943-04A | Sleeve,shaft | 2 | 3 | 4 | ||
| 7B | 1 | 4371-5-21 | Key,shaft | |||||
| 7C | 1 | 23444-01-72 | Seal,shaft sleeve | |||||
| 8 | 1 | 22210-1A | Deflector assembly | |||||
| 9 | 1 | 20618-12-1 | Frame,grease lubricated | 0 | 0 | 1 | ||
| 9C | 1 | 8505-04-01 | Plug, Frame Drain | |||||
| 9D | 1 | 8267-01 | Breather | |||||
| 9G | 3 | 2538-1H | Bolt,casing jack | |||||
| 10A | 1 | 20626 | Cover,inboard bearing | 0 | 0 | 1 | ||
| 10B | 1 | 20625 | Gasket,I.B.Brg.Cover | |||||
| 10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | 2 | 4 | 6 | ||
| 10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | |||||
| 10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | |||||
| 10H | 1 | 19368-01 | Grease fitting | |||||
| 11 | 1 | 20615-1 | Bearing,inboard | 1 | 1 | 2 | ||
| 12 | 1 | 20624-01-01 | Housing,O.B.bearing | 0 | 0 | 1 | ||
| 12A | 1 | 7496-253 | Seal, O.B.Brg.housing | |||||
| 12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | |||||
| 12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | |||||
| 13 | 1 | 20617A | Cover,O.B.Bearing | 0 | 0 | 1 | ||
| 13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | |||||
| 13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | |||||
| 13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | 2 | 4 | 6 | ||
| 13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | |||||
| 14 | 2 | 20616-1 | Bearing, O.B. | 1 | 1 | 2 | ||
| 14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | |||||
| 14B | 1 | 6123-4 | Locknut, O.B.Bearing | |||||
| Casings | ||||||||
| 1* | 1 | 19203-01-30A | Casing,3×2×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19205-01-30A | Casing,4×3×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19222-01-30A | Casing,5×4×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19122-01-30A | Casing,6×5×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19123-01-30A | Casing, 6×5×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19763-01-30A | Casing, 8×6×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19117-01-30A | Casing,8×6×14 | 1 | 1 | 2 | ||
| 1* | 1 | 20937-01-30A | Casing,10×8×14 | 1 | 1 | 2 | ||
| Impellers | ||||||||
| 2* | 1 | 19204-XX-30 | Impeller,3×2×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19206-XX-30 | Impeller,4×3×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19224-XX-30 | Impeller,5×4×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller,6×5×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19116-A0-30 | Impeller,8×6×14 | 2 | 3 | 4 | ||
| 2* | 1 | 21867-XX-30 | Impeller,10×8×14 | 2 | 3 | 4 | ||
