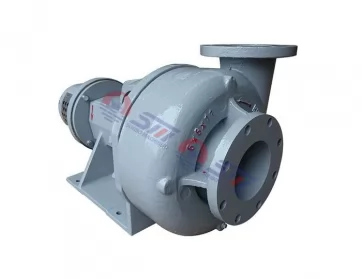

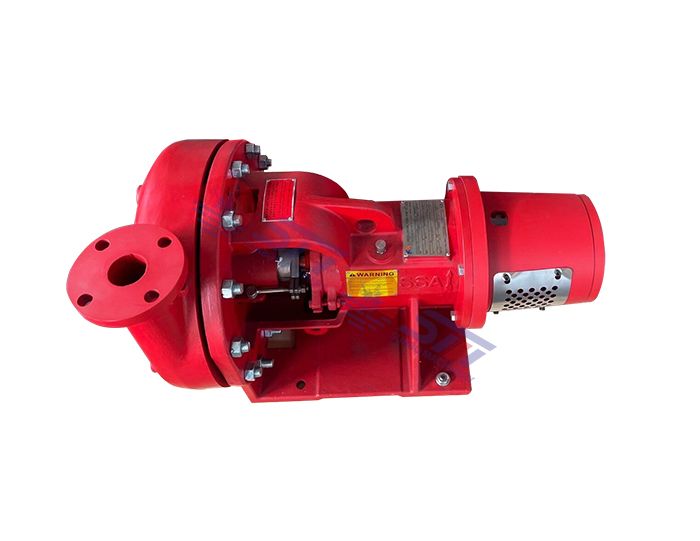

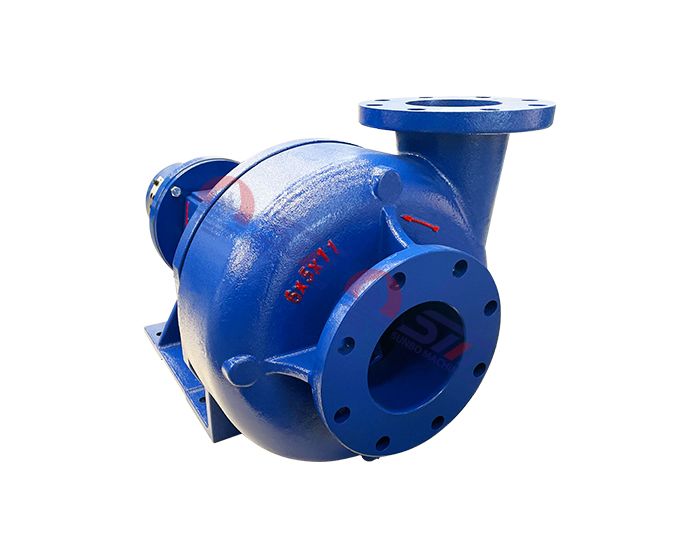

Mission Sandmaster Pump with hydraulic driven adapter can be used in oilfield frac trucks. Mission Sandmaster Pumps have compact and adaptable that includes virtually all of the features of the MAGNUM I pumps.
La pompa centrifuga SANDMASTER compatta e adattabile include praticamente tutte le caratteristiche della pompa Mission MAGNUM I. Inoltre, il SANDMASTER ha un design più compatto e può essere adattato per l'azionamento del motore idraulico.
Come estensione della linea di pompe Magnum, queste pompe offrono la nostra rete di produzione e distribuzione di qualità per aumentare le soluzioni ai requisiti di pompaggio nel settore petrolifero da un partner affidabile e specifico per il settore.
Completamente intercambiabile con Mission Sandmaster e MCM Mud Master e tutti gli altri marchi di design popolari sul mercato;
I ricambi sono intercambiabili con il modello standard.
Elenco dei modelli della pompa Mission Magnum Sandmaster
SSA3x2x13, SSA4x3x13, SSA5x4x14, SSA6x5x11, SSA6x5x14, SSA8x6x11, SSA 8x6x14, SSA10x8x14.
Applicazioni comuni della pompa Mission Sandmaster:
● Liquame di sabbia
● Pompa di carica
● Frullatore
● Perforazione di pozzi d'acqua
● Pupa e carta
● Scorie
● Lavorazione degli alimenti
● Sgrassamento
● Liquami di bottaio, bauxite e di cava
● Zinco, minerali, residui di carbone
Specifiche della pompa Sandmaster Mission SSA
| Model | SSA10×8×14 | SSA8×6×14 | SSA8×6×11 | SSA6×5×14 | SSA6×5×11 | SSA5×4×14 | SSA4×3×13 | SSA3×2×13 |
| Discharge capacity | 260～300 m3/h | 240～260 m3/h | 220～240 m3/h | 200～220 m3/h | 120～200 m3/h | 80～120 m3/h | 60～80 m3/h | 50～60m3/h |
| Pump Head | 28~33 | 28～33m | 24～28m | 24～28m | 24～28m | 24～28m | 22～28m | 22～28m |
| Efficiency | 65% | 65% | 65% | 65% | 65% | 65% | 65% | 65% |
| Motor power | 75/90 kW | 55/75 kW | 37/45 kW | 37/45/55 kW | 30/37/45 kW | 18.5/22/30 kW | 11/15 kW | 7.5/11 kW |
| Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
| ITEM | QTY EA | DESCRIPTION | MAT. | S.M. | MISSION | HALCO |
| 1* | 1 | Casing | Hard Iron | See below | See below | See below |
| 1A | 1 | Gasket, casing | Fiber | S-10399-46-1 | 648403012 | H10399-46-1 |
| 1B | 12 | Nut, casing 3/4-10 hex head | Stl., | S-3932-61 | 648402014 | H2507-3 |
| 1C | 12 | Stud, casing 3/4-10 x 3 1/4”long | Stl., | S-3862-76 | 648401115 | H3932-61 |
| 1D | 1 | Plug, casing drain | Stl | S-8505-04-01 | 86485503 | H8505-1 |
| 1E | 1 | Plug, flush line | Iron | S-8505-04-01 | 646400507 | |
| 2* | 1 | Impeller | Hard Iron | See below | See below | See below |
| 2A | 1 | Seal, impeller | Viton | S-19110-72 | 64845082 | H19110-72 |
| 2B | 1 | Washer, impeller | Stl | S-7300239 | 7300239 | |
| 2C | 1 | Bolt,impeller lock | Stl | S-7415648 | 7415648 | |
| 3* | 1 | Stuffing box,mech.seal | Hard Iron | S-22223-01-30 | 641116157 | 22223-01-30A |
| 3* | 1 | Stuffing box, packed | Hard Iron | S-20614-01-30 | 643365042 | H20614-01-30A |
| 3A | 2 | Bolt, stuffing box 1/2-13 x 1 1/4” | Stl | S-3861-117 | 648401016 | H3861-117 |
| 3B | 1 | Grease fitting | Brass | S-19368-01 | 601499403 | |
| 4 | 1 | Gland assy., packing | Stl. 304 | S-20622A | 641103338 | H20622A |
| 5A# | 1 | Seal, mechanical | Tungst.Carbide | S-22451-1 | 648414308 | H22451-1A |
| 5A# | 3 | Packing,Shaft-M.S.Backup 3 Rings | Teflon | S-648402600 | 648402600 | H8264-24-9A |
| 5A~ | 1 | Graphite Packing,Shaft-w / Lantern ring | Graphite | S-25014-04M-B | 661007005 | |
| (5 Rings &Lantern Ring) | S-8264-24-OBA | |||||
| 5A~ | 1 | Teflon Packing, Shaft | Teflon | S-250147-04M-D | 661007011 | |
| (5 Rings & Lantern Ring) | S-8264-24-7A | |||||
| 5A~ | 1 | Kevlar Packing, Shaft | Kevlar | S-25014-04M-C | 661007006 | |
| (5 Rings & Lantern Ring) | ||||||
| 1 | Lantern Ring | PP | - | 648408607 | ||
| 6 | 2 | Bolt assy,gland | Stl 304 | S-B3701A | 601102494 | H3701A |
| 7 | 1 | Shaft | 40Cr | S-20612-02-33 | 646490557 | H20612-02-33 |
| 7A | 1 | Sleeve,shaft,M.S. | S.S.316 | S-20943-21 | 641102182 | |
| 7A | 1 | Sleeve,shaft,Pack | Ceramic Coated | S-20613-21G-7A | 641102181 | H20613-21G-7A |
| 7C | 1 | Seal, shaft sleeve | Viton | S-23444-01-72 | 648415156 | |
| 8 | 1 | Deflector assembly | Composite | S-22210-1A | 641116108 | H22210-1A |
| 9 | 1 | Frame, grease lubricated | Cast iron | S-20618-12-1 | 644302499 | H17444 |
| 11 | 1 | Bearing,inboard & spacer | Vendor | S-20615-1 | 661009010 | |
| 11 | 1 | Bearing,inboard | - | 648408102 | H20615-1 | |
| 12 | 1 | Housing,O.B.bearing | Iron | S-20624-01-01 | 644308504 | H20624-01-01 |
| 12A | 1 | Seal, O.B.Brg.housing | Buna-n | S-7496-253 | 648402295 | H7496-253 |
| 12B | 4 | Bolts, O.B.Brg.housing | Stl | S-3861-138 | 648401057 | H3861-138 |
| 1/2”-13 x 1 1/2” Long | ||||||
| 12C | 2 | Nut, O.B.Brg.housing jam | Stl | S-3932-62 | 658404702 | H3932-62 |
| 1/2”-13 jam nut | ||||||
| 13 | 1 | Cover,O.B.Bearing | Iron | S-20617-01-01 | 641103296 | H20617-01-01 |
| 13A | 1 | Grease zerk, O.B.Brg.Cvr. | Brass/Stl | S-19368-01 | 661010020 | |
| 13B | 1 | O-ring, O.B.Brg.Cover | Buna-n | S-7496-26 | 72200017 | H7496-26 |
| 13C | 1 | Oil seal, O.B.Brg.Cover | Buna-n | S-20619-02 | 648408359 | |
| 13D | 2 | Bolt, O.B.Brg.Cover | Stl | S-3861-139 | 648401081 | H3861-139 |
| 3/8-16 x 1” Long | ||||||
| 14 | 2 | Bearing, O.B. | Vendor | S-20616-1 | 648408201S | H20616-1 |
| 14A | 1 | Lockwasher,O.B.Bearing | Stl | S-6124-4 | 648402105 | H6124-4 |
| 1* | 1 | Casing, 3×2×13 | Hard Iron | S-19203-01-30A | 641101753 | H19203-01-30A |
| 1* | 1 | Casing, 4×3×13 | Hard Iron | S-19205-01-30A | 641101902 | H19205-01-30A |
| 1* | 1 | Casing, 5×4×14 | Hard Iron | S-19222-01-30A | 641102058 | H19222-01-30A |
| 1* | 1 | Casing, 6×5×11 | Hard Iron | S-19122-01-30A | 641101456 | H19122-01-30A |
| 1* | 1 | Casing, 6×5×14 | Hard Iron | S-19123-01-30A | 641101605 | H19123-01-30A |
| 1* | 1 | Casing, 8×6×11 | Hard Iron | S-19763-01-30A | 641102157 | H19763-01-30A |
| 1* | 1 | Casing, 8×6×14 | Hard Iron | S-19117-01-30A | 641101308 | H19117-01-30A |
| 1* | 1 | Casing, 10×8×14 | Hard Iron | S-20937-01-30A | 641102322 | H20937-01-30A |
