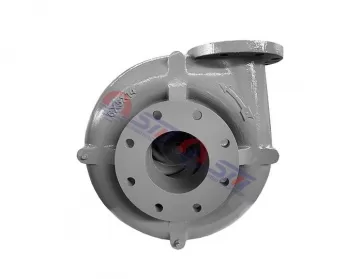

Sunbo Mission Magnum Sandmaster Pump ideal for use in applications such as oilfield frac trucks as well as blending and pump charging service. The SANDMASTER’s variable speed hydraulic drive make this an excellent pump for water well drilling applications.
SSA series Mission Magnum Sandmaster Pump is designed equivalent to Mission Sandmaster Centrifugal Pumps. They have compact structure and can be adapted for hydraulic motor drive, which makes it ideal for limited space. They are popular mounted on frac truck and mixing unit as blending or pump charging service. They include virtually all of the features of MAGNUM I pumps. Size covers 3x2x13 to 10x8x14, with speed up to 3500 rpm.
Sunbo Mission Sandmaster Pump Model List:
SSA3x2x13, SSA4x3x13, SSA5x4x14, SSA6x5x11, SSA8x6x11, SSA 8x6x14, SSA10x8x14.
Common Applications:
● Pump Charging Service
● Blending and Cement
● Water well Drilling
● Oilfield Frac Trucks
SSA Mission Magnum Sandmaster Pump Specification
| Model | SSA10×8×14 | SSA8×6×14 | SSA8×6×11 | SSA6×5×14 | SSA6×5×11 | SSA5×4×14 | SSA4×3×13 | SSA3×2×13 |
| Discharge capacity | 260～300 m3/h | 240～260 m3/h | 220～240 m3/h | 200～220 m3/h | 120～200 m3/h | 80～120 m3/h | 60～80 m3/h | 50～60m3/h |
| Pump Head | 28~33 | 28～33m | 24～28m | 24～28m | 24～28m | 24～28m | 22～28m | 22～28m |
| Efficiency | 65% | 65% | 65% | 65% | 65% | 65% | 65% | 65% |
| Motor power | 75/90 kW | 55/75 kW | 37/45 kW | 37/45/55 kW | 30/37/45 kW | 18.5/22/30 kW | 11/15 kW | 7.5/11 kW |
| Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
Sunbo Mission Sandmaster Pump Parts
| ITEM | QTY EA | DESCRIPTION | MAT. | S.M. | MISSION | HALCO |
| 1* | 1 | Casing | Hard Iron | See below | See below | See below |
| 1A | 1 | Gasket, casing | Fiber | S-10399-46-1 | 648403012 | H10399-46-1 |
| 1B | 12 | Nut, casing 3/4-10 hex head | Stl., | S-3932-61 | 648402014 | H2507-3 |
| 1C | 12 | Stud, casing 3/4-10 x 3 1/4”long | Stl., | S-3862-76 | 648401115 | H3932-61 |
| 1D | 1 | Plug, casing drain | Stl | S-8505-04-01 | 86485503 | H8505-1 |
| 1E | 1 | Plug, flush line | Iron | S-8505-04-01 | 646400507 | |
| 2* | 1 | Impeller | Hard Iron | See below | See below | See below |
| 2A | 1 | Seal, impeller | Viton | S-19110-72 | 64845082 | H19110-72 |
| 2B | 1 | Washer, impeller | Stl | S-7300239 | 7300239 | |
| 2C | 1 | Bolt,impeller lock | Stl | S-7415648 | 7415648 | |
| 3* | 1 | Stuffing box,mech.seal | Hard Iron | S-22223-01-30 | 641116157 | 22223-01-30A |
| 3* | 1 | Stuffing box, packed | Hard Iron | S-20614-01-30 | 643365042 | H20614-01-30A |
| 3A | 2 | Bolt, stuffing box 1/2-13 x 1 1/4” | Stl | S-3861-117 | 648401016 | H3861-117 |
| 3B | 1 | Grease fitting | Brass | S-19368-01 | 601499403 | |
| 4 | 1 | Gland assy., packing | Stl. 304 | S-20622A | 641103338 | H20622A |
| 5A# | 1 | Seal, mechanical | Tungst.Carbide | S-22451-1 | 648414308 | H22451-1A |
| 5A# | 3 | Packing,Shaft-M.S.Backup 3 Rings | Teflon | S-648402600 | 648402600 | H8264-24-9A |
| 5A~ | 1 | Graphite Packing,Shaft-w / Lantern ring | Graphite | S-25014-04M-B | 661007005 | |
| (5 Rings &Lantern Ring) | S-8264-24-OBA | |||||
| 5A~ | 1 | Teflon Packing, Shaft | Teflon | S-250147-04M-D | 661007011 | |
| (5 Rings & Lantern Ring) | S-8264-24-7A | |||||
| 5A~ | 1 | Kevlar Packing, Shaft | Kevlar | S-25014-04M-C | 661007006 | |
| (5 Rings & Lantern Ring) | ||||||
| 1 | Lantern Ring | PP | - | 648408607 | ||
| 6 | 2 | Bolt assy,gland | Stl 304 | S-B3701A | 601102494 | H3701A |
| 7 | 1 | Shaft | 40Cr | S-20612-02-33 | 646490557 | H20612-02-33 |
| 7A | 1 | Sleeve,shaft,M.S. | S.S.316 | S-20943-21 | 641102182 | |
| 7A | 1 | Sleeve,shaft,Pack | Ceramic Coated | S-20613-21G-7A | 641102181 | H20613-21G-7A |
| 7C | 1 | Seal, shaft sleeve | Viton | S-23444-01-72 | 648415156 | |
| 8 | 1 | Deflector assembly | Composite | S-22210-1A | 641116108 | H22210-1A |
| 9 | 1 | Frame, grease lubricated | Cast iron | S-20618-12-1 | 644302499 | H17444 |
| 11 | 1 | Bearing,inboard & spacer | Vendor | S-20615-1 | 661009010 | |
| 11 | 1 | Bearing,inboard | - | 648408102 | H20615-1 | |
| 12 | 1 | Housing,O.B.bearing | Iron | S-20624-01-01 | 644308504 | H20624-01-01 |
| 12A | 1 | Seal, O.B.Brg.housing | Buna-n | S-7496-253 | 648402295 | H7496-253 |
| 12B | 4 | Bolts, O.B.Brg.housing | Stl | S-3861-138 | 648401057 | H3861-138 |
| 1/2”-13 x 1 1/2” Long | ||||||
| 12C | 2 | Nut, O.B.Brg.housing jam | Stl | S-3932-62 | 658404702 | H3932-62 |
| 1/2”-13 jam nut | ||||||
| 13 | 1 | Cover,O.B.Bearing | Iron | S-20617-01-01 | 641103296 | H20617-01-01 |
| 13A | 1 | Grease zerk, O.B.Brg.Cvr. | Brass/Stl | S-19368-01 | 661010020 | |
| 13B | 1 | O-ring, O.B.Brg.Cover | Buna-n | S-7496-26 | 72200017 | H7496-26 |
| 13C | 1 | Oil seal, O.B.Brg.Cover | Buna-n | S-20619-02 | 648408359 | |
| 13D | 2 | Bolt, O.B.Brg.Cover | Stl | S-3861-139 | 648401081 | H3861-139 |
| 3/8-16 x 1” Long | ||||||
| 14 | 2 | Bearing, O.B. | Vendor | S-20616-1 | 648408201S | H20616-1 |
| 14A | 1 | Lockwasher,O.B.Bearing | Stl | S-6124-4 | 648402105 | H6124-4 |
| 1* | 1 | Casing, 3×2×13 | Hard Iron | S-19203-01-30A | 641101753 | H19203-01-30A |
| 1* | 1 | Casing, 4×3×13 | Hard Iron | S-19205-01-30A | 641101902 | H19205-01-30A |
| 1* | 1 | Casing, 5×4×14 | Hard Iron | S-19222-01-30A | 641102058 | H19222-01-30A |
| 1* | 1 | Casing, 6×5×11 | Hard Iron | S-19122-01-30A | 641101456 | H19122-01-30A |
| 1* | 1 | Casing, 6×5×14 | Hard Iron | S-19123-01-30A | 641101605 | H19123-01-30A |
| 1* | 1 | Casing, 8×6×11 | Hard Iron | S-19763-01-30A | 641102157 | H19763-01-30A |
| 1* | 1 | Casing, 8×6×14 | Hard Iron | S-19117-01-30A | 641101308 | H19117-01-30A |
| 1* | 1 | Casing, 10×8×14 | Hard Iron | S-20937-01-30A | 641102322 | H20937-01-30A |
