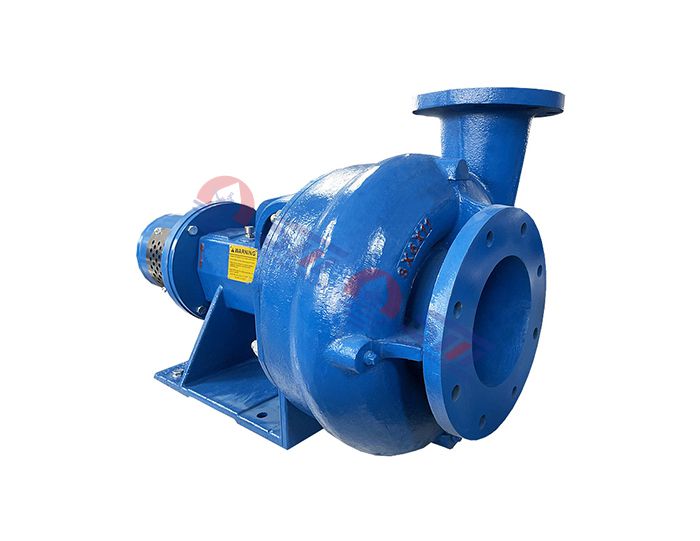

SSA Serisi Mission Sandmaster Pompa, petrol sahası frac kamyonlarının yanı sıra karıştırma ve pompa şarj hizmeti gibi uygulamalarda kullanım için idealdir. SANDMASTER'ın değişken hızlı hidrolik tahriki, bunu su kuyusu sondaj uygulamaları için mükemmel bir pompa haline getiriyor.
SSA Serisi Mission Magnum Sandmaster Pompanın güvenilir, ağır hizmet tipi, düşük maliyetli çamur pompaları olduğu kanıtlanmıştır. 3×2×13'ten 8×6×14'e kadar olan pompaların tümü aynı güç ucuna sahiptir, bu da üretim sağlar ve yedek parça envanteri ihtiyacını azaltır. Mission MAGNUM Sandmaster Pump sondaj, üretim, bakım ve endüstriyel uygulamalardaki en zorlu işler için tasarlanmıştır. MAGNUM I, günümüzde kullanılan tüm geleneksel pompalardan daha güçlü, daha dayanıklı ve bakımı daha kolaydır.
Mission Sandmaster Pompa Model Listesi:
SSA3x2x13, SSA4x3x13, SSA5x4x14, SSA6x5x11, SSA6x5x14, SSA8x6x11, SSA 8x6x14, SSA10x8x14.
Tipik uygulamalar:
• Çamur pompalama – açık deniz/kara
• Katı kontrolü
• Tarama
• Tesviye veya Teçhizat Platformu (balast)
• Barit, ferrik oksit ve mineral yağ
• Temel sondaj çamurları
• Cam elyafları
• Şeker işleme
• Kül veya kömür konveyörleri
• Çimento
SSA Mission Magnum Sandmaster Pompa Şartnamesi
| Model | SSA10×8×14 | SSA8×6×14 | SSA8×6×11 | SSA6×5×14 | SSA6×5×11 | SSA5×4×14 | SSA4×3×13 | SSA3×2×13 |
| Discharge capacity | 260～300 m3/h | 240～260 m3/h | 220～240 m3/h | 200～220 m3/h | 120～200 m3/h | 80～120 m3/h | 60～80 m3/h | 50～60m3/h |
| Pump Head | 28~33 | 28～33m | 24～28m | 24～28m | 24～28m | 24～28m | 22～28m | 22～28m |
| Efficiency | 65% | 65% | 65% | 65% | 65% | 65% | 65% | 65% |
| Motor power | 75/90 kW | 55/75 kW | 37/45 kW | 37/45/55 kW | 30/37/45 kW | 18.5/22/30 kW | 11/15 kW | 7.5/11 kW |
| Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
Misyon Sandmaster Pompa Parçaları:
| ITEM | QTY EA | DESCRIPTION | MAT. | S.M. | MISSION | HALCO |
| 1* | 1 | Casing | Hard Iron | See below | See below | See below |
| 1A | 1 | Gasket, casing | Fiber | S-10399-46-1 | 648403012 | H10399-46-1 |
| 1B | 12 | Nut, casing 3/4-10 hex head | Stl., | S-3932-61 | 648402014 | H2507-3 |
| 1C | 12 | Stud, casing 3/4-10 x 3 1/4”long | Stl., | S-3862-76 | 648401115 | H3932-61 |
| 1D | 1 | Plug, casing drain | Stl | S-8505-04-01 | 86485503 | H8505-1 |
| 1E | 1 | Plug, flush line | Iron | S-8505-04-01 | 646400507 | |
| 2* | 1 | Impeller | Hard Iron | See below | See below | See below |
| 2A | 1 | Seal, impeller | Viton | S-19110-72 | 64845082 | H19110-72 |
| 2B | 1 | Washer, impeller | Stl | S-7300239 | 7300239 | |
| 2C | 1 | Bolt,impeller lock | Stl | S-7415648 | 7415648 | |
| 3* | 1 | Stuffing box,mech.seal | Hard Iron | S-22223-01-30 | 641116157 | 22223-01-30A |
| 3* | 1 | Stuffing box, packed | Hard Iron | S-20614-01-30 | 643365042 | H20614-01-30A |
| 3A | 2 | Bolt, stuffing box 1/2-13 x 1 1/4” | Stl | S-3861-117 | 648401016 | H3861-117 |
| 3B | 1 | Grease fitting | Brass | S-19368-01 | 601499403 | |
| 4 | 1 | Gland assy., packing | Stl. 304 | S-20622A | 641103338 | H20622A |
| 5A# | 1 | Seal, mechanical | Tungst.Carbide | S-22451-1 | 648414308 | H22451-1A |
| 5A# | 3 | Packing,Shaft-M.S.Backup 3 Rings | Teflon | S-648402600 | 648402600 | H8264-24-9A |
| 5A~ | 1 | Graphite Packing,Shaft-w / Lantern ring | Graphite | S-25014-04M-B | 661007005 | |
| (5 Rings &Lantern Ring) | S-8264-24-OBA | |||||
| 5A~ | 1 | Teflon Packing, Shaft | Teflon | S-250147-04M-D | 661007011 | |
| (5 Rings & Lantern Ring) | S-8264-24-7A | |||||
| 5A~ | 1 | Kevlar Packing, Shaft | Kevlar | S-25014-04M-C | 661007006 | |
| (5 Rings & Lantern Ring) | ||||||
| 1 | Lantern Ring | PP | - | 648408607 | ||
| 6 | 2 | Bolt assy,gland | Stl 304 | S-B3701A | 601102494 | H3701A |
| 7 | 1 | Shaft | 40Cr | S-20612-02-33 | 646490557 | H20612-02-33 |
| 7A | 1 | Sleeve,shaft,M.S. | S.S.316 | S-20943-21 | 641102182 | |
| 7A | 1 | Sleeve,shaft,Pack | Ceramic Coated | S-20613-21G-7A | 641102181 | H20613-21G-7A |
| 7C | 1 | Seal, shaft sleeve | Viton | S-23444-01-72 | 648415156 | |
| 8 | 1 | Deflector assembly | Composite | S-22210-1A | 641116108 | H22210-1A |
| 9 | 1 | Frame, grease lubricated | Cast iron | S-20618-12-1 | 644302499 | H17444 |
| 11 | 1 | Bearing,inboard & spacer | Vendor | S-20615-1 | 661009010 | |
| 11 | 1 | Bearing,inboard | - | 648408102 | H20615-1 | |
| 12 | 1 | Housing,O.B.bearing | Iron | S-20624-01-01 | 644308504 | H20624-01-01 |
| 12A | 1 | Seal, O.B.Brg.housing | Buna-n | S-7496-253 | 648402295 | H7496-253 |
| 12B | 4 | Bolts, O.B.Brg.housing | Stl | S-3861-138 | 648401057 | H3861-138 |
| 1/2”-13 x 1 1/2” Long | ||||||
| 12C | 2 | Nut, O.B.Brg.housing jam | Stl | S-3932-62 | 658404702 | H3932-62 |
| 1/2”-13 jam nut | ||||||
| 13 | 1 | Cover,O.B.Bearing | Iron | S-20617-01-01 | 641103296 | H20617-01-01 |
| 13A | 1 | Grease zerk, O.B.Brg.Cvr. | Brass/Stl | S-19368-01 | 661010020 | |
| 13B | 1 | O-ring, O.B.Brg.Cover | Buna-n | S-7496-26 | 72200017 | H7496-26 |
| 13C | 1 | Oil seal, O.B.Brg.Cover | Buna-n | S-20619-02 | 648408359 | |
| 13D | 2 | Bolt, O.B.Brg.Cover | Stl | S-3861-139 | 648401081 | H3861-139 |
| 3/8-16 x 1” Long | ||||||
| 14 | 2 | Bearing, O.B. | Vendor | S-20616-1 | 648408201S | H20616-1 |
| 14A | 1 | Lockwasher,O.B.Bearing | Stl | S-6124-4 | 648402105 | H6124-4 |
| 1* | 1 | Casing, 3×2×13 | Hard Iron | S-19203-01-30A | 641101753 | H19203-01-30A |
| 1* | 1 | Casing, 4×3×13 | Hard Iron | S-19205-01-30A | 641101902 | H19205-01-30A |
| 1* | 1 | Casing, 5×4×14 | Hard Iron | S-19222-01-30A | 641102058 | H19222-01-30A |
| 1* | 1 | Casing, 6×5×11 | Hard Iron | S-19122-01-30A | 641101456 | H19122-01-30A |
| 1* | 1 | Casing, 6×5×14 | Hard Iron | S-19123-01-30A | 641101605 | H19123-01-30A |
| 1* | 1 | Casing, 8×6×11 | Hard Iron | S-19763-01-30A | 641102157 | H19763-01-30A |
| 1* | 1 | Casing, 8×6×14 | Hard Iron | S-19117-01-30A | 641101308 | H19117-01-30A |
| 1* | 1 | Casing, 10×8×14 | Hard Iron | S-20937-01-30A | 641102322 | H20937-01-30A |
