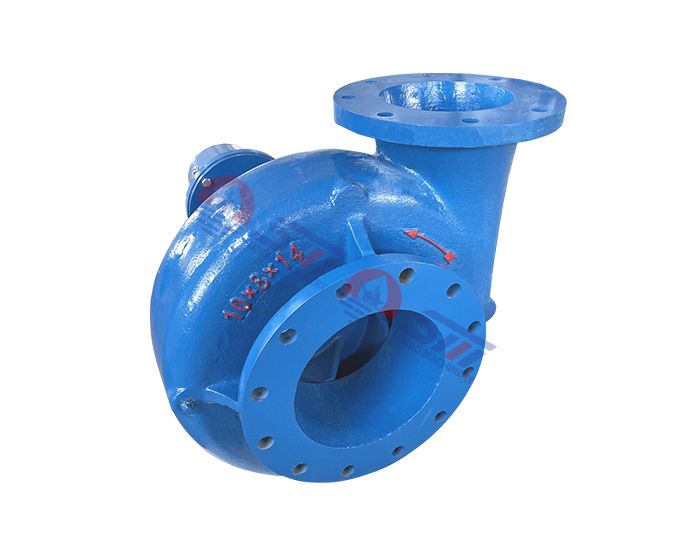

10X8X14 Oil Drilling Centrifugal Mud Pump

The compact and adaptable SANDMASTER centrifugal pump includes virtually all of the features of the MAGNUM I. In addition, the SANDMASTER is more compact in design and can be adapted for hydraulic motor drive.

As an extension of the Magnum pump line, these pumps offer our quality manufacturing and distribution network to increase solutions to pumping requirements in the oilfield industry from a reliable, industry-specific partner.

Completely interchangeable with Mission Sandmaster and MCM Mud Master and all other popular brand design in the market;

Spare parts are interchangeable with the standard model.

Mission Sandmaster Pump Specifications:

● Sizes from 3x2x13 to 10x8x14

● Flow rates from a few gallons per minute of to 2,600 GPM

● Head pressure up to 550 feet

● Best utilized for applications requiring up to 200 HP

Features:

● Versatile stuffing box

● One piece casing

● Casing gasket receded for protection

● Back vanes reduce collection of solids at stuffing box

● Long-life, no-adjustment mechanical seal available for near zero leakage

● Replaceable shaft sleeve

● Lip seals for maximum bearing protection (Labyrinth seals optional)

● Duplex angular contact bearings

● Thicker, stronger concentric casings

● Full pipe diameter entrance for minimum turbulence and maximum efficiency

● Single row roller bearings for increasing bearing life

● Easily accessible front access drain

● Reduced high bearing loads

Mission Sandmaster Centrifugal Pumps Model List:

SSA3x2x13, SA4x3x13, SSA5x4x14, SSA6x5x11, SSA6x5x14, SSA8x6x11, SSA 8x6x14, SSA10x8x14.

Typical Applications:

● Barite, ferric oxide, and mineral oil

● Base drilling muds

● Glass fibers

● Sugar processing

● Ash or coal conveyers

● Cement

● Mine de-watering

● Lime slurries

● Kaolin clay

● Crystalline forms

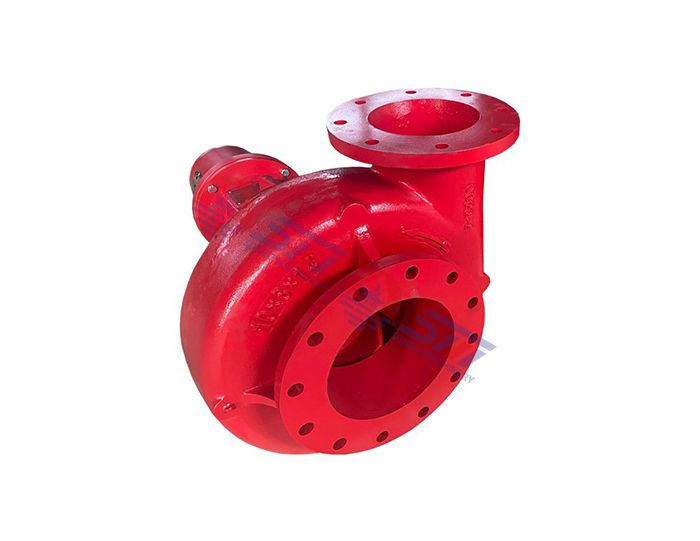

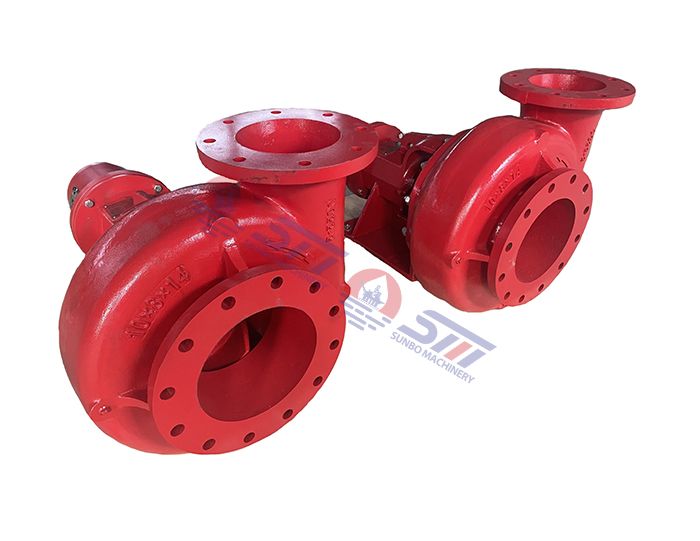

SSA Series Mission Magnum Sandmaster Pump

Mission Magnum Centrifugal Pump Parts List
