The Mission Magnum XP Pump is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump. The pump housing, face plate, stuffing Box, impeller in high chrome are avalible, high abrasion resistance.
Mission Magnum XP Blender Pump( equivalent to mcm XL 14x12x22 blender pump) is ideally suited for pumping high volumes of heavy fracturing sand slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high volume mobile and stationary applications where a small footprint is critical. High chrome alloy or hard iron material options for different applications.
The compact overall dimensions make it an excellent choice for high-volume mobile and stationary applications for which a small footprint is critical. Designed for continuous operation with minimal maintenance, this model is engineered to provide maximum seal life with low stuffing box pressure and an extra-heavy shaft design.
Magnum XP Pump Structure:
Mission Magnum SXP Pump Features:
● Full-open wide impeller.
● Long life no adjustment mechanical seal available for near zero leakage.
● Thick, concentric casing with replaceable casing wear pad.
● Hard iron and high chrome alloy material optional.
● Large power to ensure large flow rates and head pressure up to 500ft.
● Small footprint design is versatile for mobile and stationary application.
● Working for fracking industrial standard and blending application.
● Each casing is approved pressure test prior to delivery.
● Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.
● Shaft sleeves are made by 416SS and ceramic coating to protect shaft from abrasive fluids for extra life.
● Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.
● 100% compatible with NOV Mission Magnum XP, MCM XL series and current market offerings.
● The pumps can be unitized with Ex-proof electric motors, diesel engines in-line or over-belt driven configuration.
Mission Maganum XP Pump Parts List:

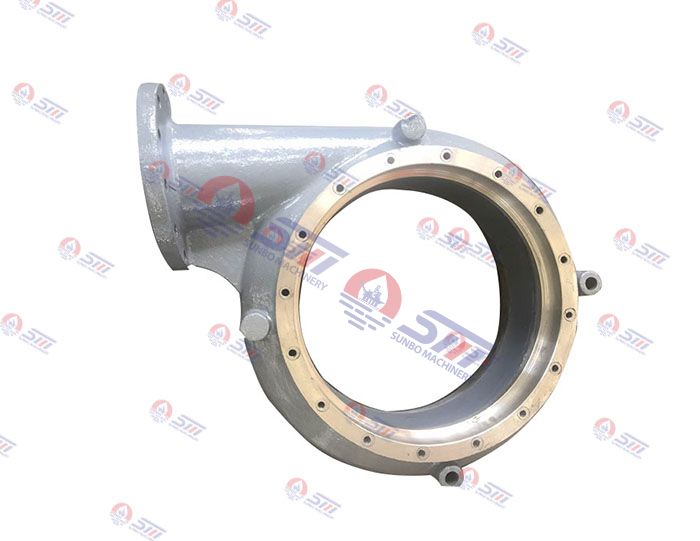

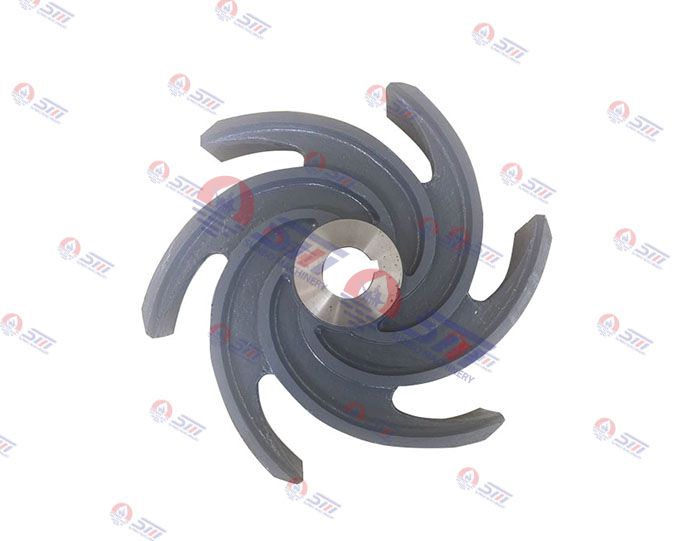

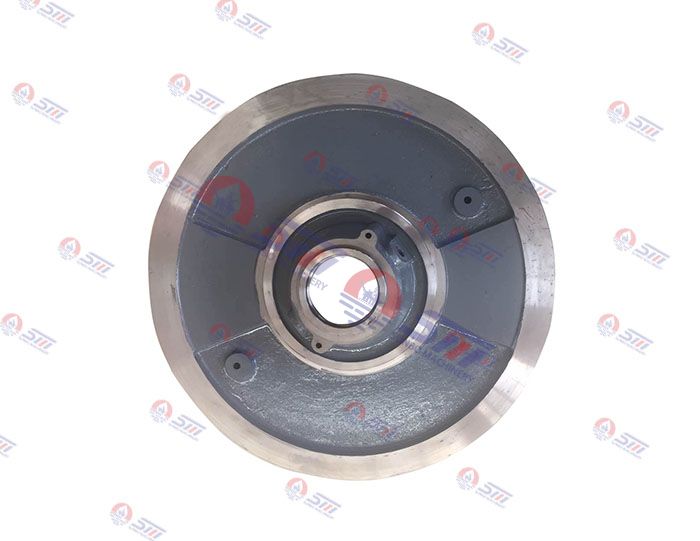

Item # | Description | Qty. | Part No. | SKU No. | Item # | Description | Qty. | Part No. | SKU No. |
1 | Casing, 14X12X22 | 1 | 24022-01-30A | 651120206 | 25 | Bearing, Outboard (14X12 ) | 1 | 20616-2 | 658413307 |
Casing, 12x10x23 | 25008-01-30A | 662001001 | Bearing, Outboard (12X10 & 8X6) | 2 | 20616-3 | 661009001 | |||
Casing, 8x6x18 | 25289-02-30A | 662002089 | 26 | Seal, Bearing Cover | 1 | 7496-267 | 658408802 | ||
2 | Nut, Casing | 32 | 3932-61 | 648402014 | 27 | Lock Washer | 1 | 6124-6 | 658407002 |
3 | Stud, Casing (14X12 & 12X10) | 32 | 3862-86 | 658403308 | 28 | Lock Nut, Bearing | 1 | 6123-6 | 658406509 |
Stud, Casing (8X6) | 16 | 3862-90 | 601208285 | 29 | Oil Seal, Bearing Cover | 2 | 20619-04 | 658413638 | |
Stud, Casing (8X6) | 16 | 3862-92 | 648401118 | 30 | Drive Screws | 6 | 12530 | 601482417 | |
4 | Gasket, Casing (14x12x22) | 2 | 10399-55-01 | 658410501 | 31 | Nameplate | 1 | 23017 | 601501505 |
Gasket, Casing (12x10x23) | 25012-01-01 | 661010001 | 32 | Shaft | 1 | 24028-33 | 656420007 | ||
Gasket, Casing (8x6x18) | 25012-02-05 | 662010032 | 33 | Key, Coupling | 1 | 4372-30-21 | 658405055 | ||
5 | Cover, Front (14x12x22) | 1 | 24021-01-30 | 654310309 | 34 | Cover, Bearing O.B. | 1 | 24033-01-01 | 654314004 |
Cover, Front (12x10x23) | 25009-01-30 | 662014003 | 35 | Bolts, Bearing Cover | 2 | 3861-139 | 648401081 | ||
Cover, Front (8x6x18) | 25291-02-30 | 662014129 | 36 | Washer, Bearing Cover | 2 | 3936-19-L8 | 648402030 | ||
6 | Impeller, 14x12 Clockwise Rot. 22" | 1 | 24024-X0-HS | 662005003 | 37 | Nuts, Bearing Housing | 2 | 3932-62 | 658404702 |
Impeller, 12x10 Clockwise Rot. 23" | 25010-Y0-30 | 662005002 | 38 | Bolt, Bearing Housing | 4 | 3861-138 | 648401057 | ||
Impeller, 8x6 Clockwise Rot. 18" | 25292-T0-30 | 662005018 | 39 | Washer, Flat | 2 | 3936-19-L8 | 648402030 | ||
7 | Seal, Impeller Nose | 1 | 7496-158 | 658408109 | 40 | Bolt, Packing Gland | 2 | 3861-165 | 601408289 |
8 | Key, Impeller | 1 | 4372-29-21 | 658405006 | 41 | Gland, Packing Half | 2 | 24034-01-13 | 654315100 |
9 | Nose, Impeller ( Hex Design) | 1 | 24025-04-25L | 652309601 | 42 | Packing Set | 1 | 8264-344-K | 658409503 |
Nose, Impeller (Two Flat Design) | 24025-01-25L | 652309600 | 43 | Screw, Cap | 2 | 3909-04-87 | 658404207 | ||
Nose, Impeller (2 Flat Ion Nitride) | 24025-03-25L | 662014054 | 44 | Plug, Grease | 1 | Jan-05 | 601474695 | ||
10 | Screw, Set | 1 | 14430-19 | 658411400 | 45 | Breather | 1 | Jan-67 | 601473689 |
11 | Jam Nut | 1 | 24026-25L | 658414255 | 46 | Plug, Fitting | 1 | 19368 | 661010020 |
12 | Seal, Impeller | 1 | 7496-153 | 658408059 | 58 | Plug, Pipe | 2 | 8505/2/1 | 658409859 |
13 | Mechanical Seal (Crane Type) | 1 | 24036 | 658416102 | 59 | Plug, Pipe | 1 | 8505/6/1 | 658410006 |
14 | Stuffing Box, Mech. Seal (14X12) | 1 | 24027-01-30 | 653322305 | 60 | Tag, Mechanical Seal | 1 | 22566 | 603445727 |
Stuffing Box, Mech. Seal (12X10) | 24027-02-30 | 662014002 | Packed Split-Box and Wearplate | ||||||
Stuffing Box, Mech. Seal (8X6) | 25290-02-30 | 662014128 | 47 | Wearplate, Split Box | 1 | 24023-01-XX | 654310507 | ||
15 | Bolt, Stuffing Box | 2 | 3861-117 | 648401016 | 48 | Packing Set | 1 | 8264-345-K | 658409552 |
16 | Sleeve, Shaft | 1 | 24029-21BZ | 656422201 | 49 | Nut and Washer Assembly | 2 | 22216-02 | 658413935 |
17 | Seal, Sleeve | 1 | 7496-234 | 658408505 | 50 | Bolt, Split-Box | 2 | 3861-168 | |
18 | Slinger | 1 | 24030-01-13 | 654311604 | 51 | Stuffing Box, Split | 2 | 24037-01-87 | 654317007 |
19 | Seal, Slinger | 1 | 7496-238P | 658408554 | 52 | Latern Ring Half | 2 | 24039-13 | 658418207 |
21 | Oil Seal, Inboard Bearing | 2 | 20619-03 | 658413604 | 53 | Fitting, Grease | 1 | 19368-01 | 601499403 |
21 | Bearing, Inboard | 1 | 20615-2 | 658413000 | 54 | Screw, Cap | 2 | 3909-13-87 | 658404405 |
22 | Frame 14X12 | 1 | 24031-01-01 | 654312008 | Auxiliary Tools | ||||
Frame 12X10 | 24031-02-01 | 662014001 | 55 | Tool, Impeller Nose & Nut | 1 | 24040 | 658420203 | ||
Frame 8X6 | 25293-02-01 | 662014130 | Tool, Impeller Nose (HEX) | Standard Hex Socket | |||||
23 | Housing, Bearing | 1 | 24032-01-01 | 654313006 | 56 | Tool, Impeller Removal | 1 | 24041 | 658420252 |
24 | Seal, Bearing Housing | 1 | 7496-272 | 658408901 | 57 | Tool, Shaft Holder | 1 | 24042 | 658420302 |
