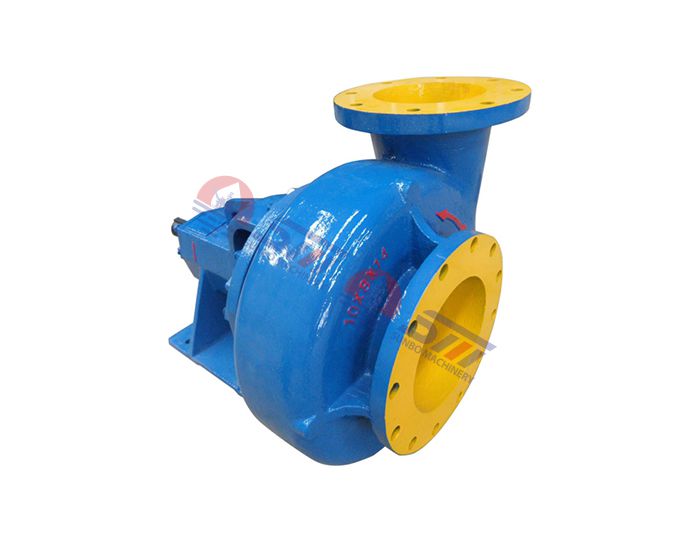

SM series Mission Magnum Centrifugal Pumps mainly supplies to solids control circulating system of oilfield drill rig, and be used to provide drilling liquid with a certain discharge capacity and pressure to sand, desilter and mud mixer, to assure these equipments work efficiently.
Mission Magnum Pump has been the most popular centrifugal pump because of its proven reliability, durability, and economical structure.The mission magnum pump has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The mission magnum pump is available in hard iron and stainless steel. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Its main parts are pump shell, impellers, bearing block, pump axle, bearing, shaft coupling, wearing plate, seal apparatus, oil seal, motor and base.
The SM Series Mission Magnum Pump has these features:
● Open impeller, apply to transport high viscosity drilling liquid.
● Combination seal for a long service life.
● Use universal bearing houses and bearings, convenient to maintain and cut the costs.
● The major parts are made from anti-wear nodular iron, and long service life.
3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14
● Sand Slurry
● Charge Pump
● Blender
● Waterwell Drilling
● Puple and Paper
● Slag
● Food Processing
● Sweage
● Cooper, bauxite, and quarry slurries
● Zinc, Ore, coal tailings

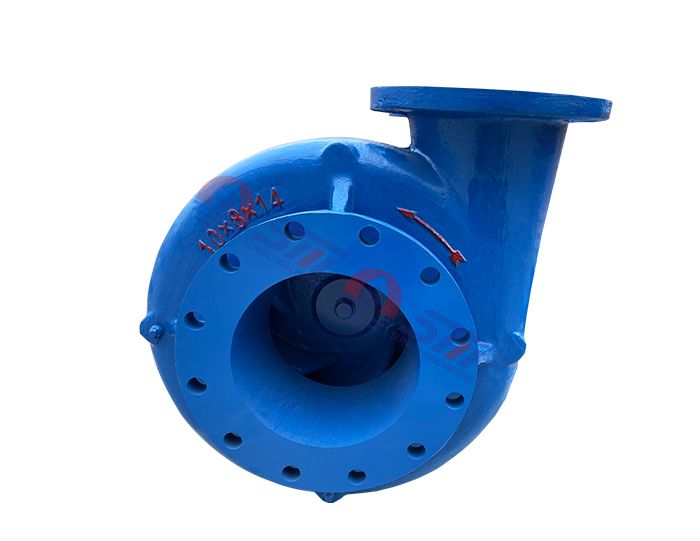

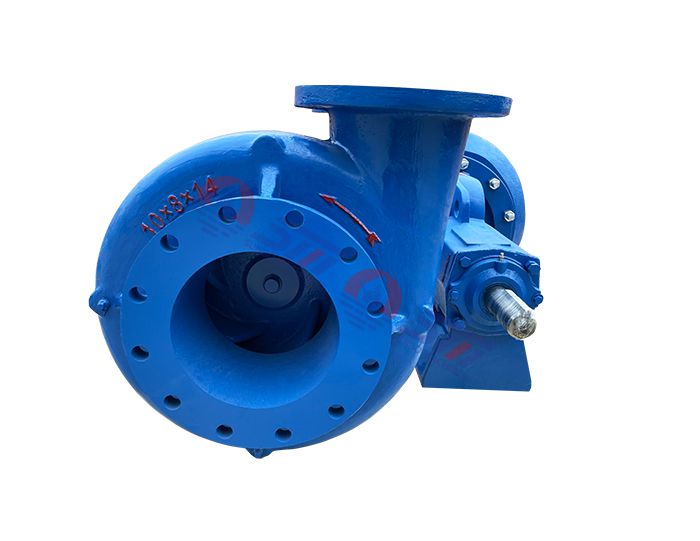

· Flow Capacity: The NOV Mission Pumps 10x8x14 model is designed to handle high flow rates due to its large inlet, outlet and impeller sizes, making it ideal for high volume applications.
· Pressure and Lift: The 10x8x14 pump provides high head and operates at pressure, making it ideal for demanding tasks such as heavy duty drilling fluid circulation.
· Power Requirements: 10x8x14 the high capacity of the pump requires a relatively large motor and power to ensure reliable performance in large-scale operations.
· Application: The 10x8x14 NOV Mission pump model is tailored for high efficiency and durability in large-scale operations including deep drilling and high viscosity fluid handling.
| Model | SM 10x8x14 | SM 8x6x14 | SM 8x6x11 | SM 6x5x14 |
| Discharge Volume (Max.) | 4300 gpm | 2600 gpm | 2150 gpm | 1825 gpm |
| Discharge Head (Max.) | 175ft | 205ft | 120ft | 225ft |
| PRM (min.-max.) | 1200~1800 | 1200~1800 | 1200~1800 | 1200~1800 |
| Inlet Diameter ( inch ) | 10 | 8 | 8 | 6 |
| Outlet Diameter ( inch ) | 8 | 6 | 6 | 5 |
| Weight (lb) | 705 | 595 | 595 | 529 |
| Dimension ( inch ) | 38 x 26 x 26 | 38 x 25 x 25 | 38 x 24 x 24 | 36 x 22 x 21 |
| Model | SM 6x5x11 | SM 5x4x14 | SM 4x3x13 | SM 3x2x13 |
| Discharge Volume (Max.) | 1800 gpm | 1150 gpm | 875 gpm | 550 gpm |
| Discharge Head (Max.) | 120ft | 215ft | 530ft | 500ft |
| PRM (min.-max.) | 1200~1800 | 1200~2100 | 1200~3600 | 1200~3600 |
| Inlet Diameter ( inch ) | 6 | 5 | 4 | 3 |
| Outlet Diameter ( inch ) | 5 | 4 | 3 | 2 |
| Weight (lb) | 529 | 529 | 445 | 432 |
| Dimension ( inch ) | 36 x 20 x 20 | 36 x 20 x 20 | 34 x 19 x 19 | 34 x 19 x 19 |

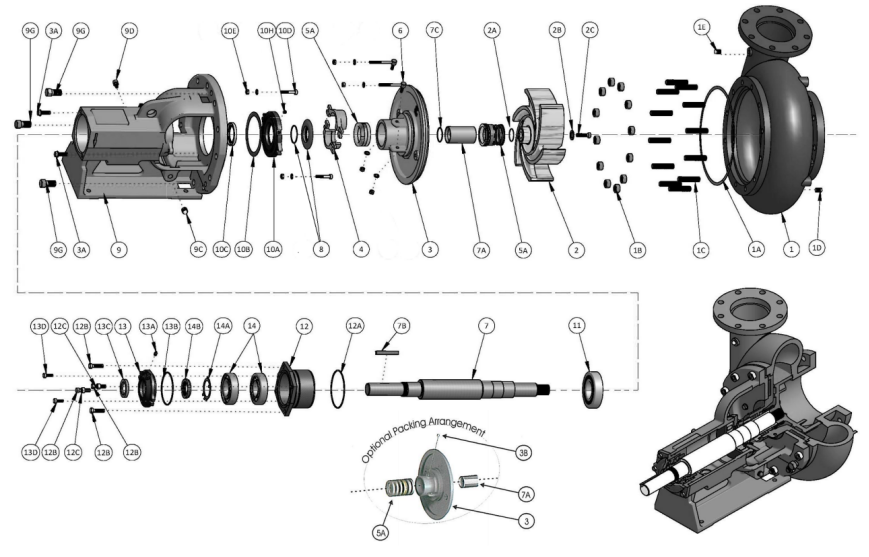

Mission Magnum Centrifugal Pump Parts List
| ITEM | Qty.of 1 pump | MISSIONPART No. | DESCRIPTION | Qty. of 1 year | Qty. of 2 years | Qty. of 3 years | ||
| 1* | 1 | See below | Casing | 1 | 1 | 2 | ||
| 1A | 1 | 10399-46-1 | Gasket,casing | |||||
| 1B | 12 | 3932-61 | Nut,casing | |||||
| 1C | 12 | 3862-76 | Stud,casing | |||||
| 1D | 1 | 8505-04-01 | Plug,Casing Drain | |||||
| 1E | 1 | 8505-04-01 | Plug,flush line | |||||
| 2* | 1 | See below | Impeller | 2 | 3 | 4 | ||
| 2A | 1 | 19110-72 | Seal,impeller | |||||
| 2B | 1 | Washer,impeller | ||||||
| 2C | 1 | Bolt,impeler lock | 1 | 1 | 2 | |||
| 3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | 1 | ||||
| 3*& | 1 | 20614-01-30 | Stuffing box,packed | |||||
| 3A | 2 | 3861-117 | Bolt,stuffing box | |||||
| 3B& | 1 | 19368-01 | Grease fitting | |||||
| 4 | 1 | 20622A | Gland assy,packing | 0 | 0 | 1 | ||
| 5A# | 1 | 22451-1 | Seal,mechanical | 1 | 2 | 3 | ||
| 5A# | 3 | Packing, Shaft - M.S. Backup | 2 | 4 | 6 | |||
| 6 | 2 | B3701A | Bolt assy,gland | |||||
| 7 | 1 | 20612-02-33 | Shaft | 1 | 1 | 2 | ||
| 7A | 1 | 20943-04A | Sleeve,shaft | 2 | 3 | 4 | ||
| 7B | 1 | 4371-5-21 | Key,shaft | |||||
| 7C | 1 | 23444-01-72 | Seal,shaft sleeve | |||||
| 8 | 1 | 22210-1A | Deflector assembly | |||||
| 9 | 1 | 20618-12-1 | Frame,grease lubricated | 0 | 0 | 1 | ||
| 9C | 1 | 8505-04-01 | Plug, Frame Drain | |||||
| 9D | 1 | 8267-01 | Breather | |||||
| 9G | 3 | 2538-1H | Bolt,casing jack | |||||
| 10A | 1 | 20626 | Cover,inboard bearing | 0 | 0 | 1 | ||
| 10B | 1 | 20625 | Gasket,I.B.Brg.Cover | |||||
| 10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | 2 | 4 | 6 | ||
| 10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | |||||
| 10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | |||||
| 10H | 1 | 19368-01 | Grease fitting | |||||
| 11 | 1 | 20615-1 | Bearing,inboard | 1 | 1 | 2 | ||
| 12 | 1 | 20624-01-01 | Housing,O.B.bearing | 0 | 0 | 1 | ||
| 12A | 1 | 7496-253 | Seal, O.B.Brg.housing | |||||
| 12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | |||||
| 12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | |||||
| 13 | 1 | 20617A | Cover,O.B.Bearing | 0 | 0 | 1 | ||
| 13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | |||||
| 13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | |||||
| 13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | 2 | 4 | 6 | ||
| 13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | |||||
| 14 | 2 | 20616-1 | Bearing, O.B. | 1 | 1 | 2 | ||
| 14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | |||||
| 14B | 1 | 6123-4 | Locknut, O.B.Bearing | |||||
| Casings | ||||||||
| 1* | 1 | 19203-01-30A | Casing,3×2×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19205-01-30A | Casing,4×3×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19222-01-30A | Casing,5×4×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19122-01-30A | Casing,6×5×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19123-01-30A | Casing, 6×5×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19763-01-30A | Casing, 8×6×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19117-01-30A | Casing,8×6×14 | 1 | 1 | 2 | ||
| 1* | 1 | 20937-01-30A | Casing,10×8×14 | 1 | 1 | 2 | ||
| Impellers | ||||||||
| 2* | 1 | 19204-XX-30 | Impeller,3×2×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19206-XX-30 | Impeller,4×3×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19224-XX-30 | Impeller,5×4×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller,6×5×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19116-A0-30 | Impeller,8×6×14 | 2 | 3 | 4 | ||
| 2* | 1 | 21867-XX-30 | Impeller,10×8×14 | 2 | 3 | 4 | ||
