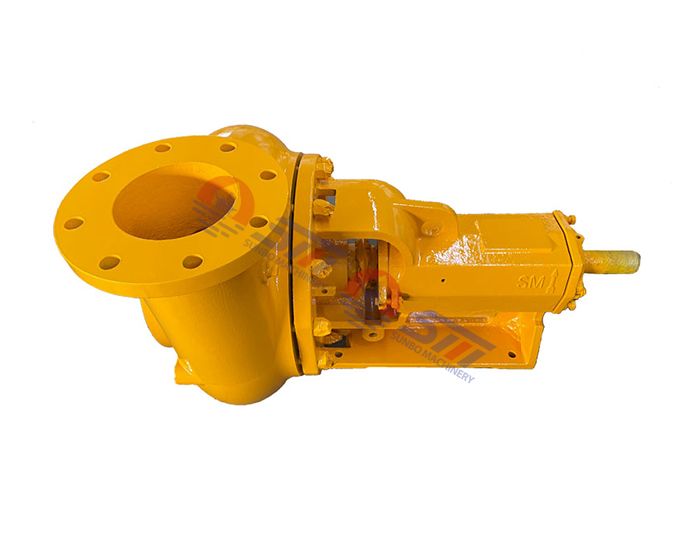

Mission Magnum Pump 6x5x14

S250 series centrifugal sand pump Equivalent to MCM 250 centrifugal pump, It mainly supplies to solids control circulating system of oilfield drill rig, It is Interchangeable with MCM Centrifugal Pumps.

Inquire Now Next Product

Product Description

Mission Magnum mud pump has been the most popular centrifugal pump because of its proven reliability, durability, and economical structure.The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in hard iron and stainless steel. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

Features:

Its main parts are pump shell, impellers, bearing block, pump axle, bearing, shaft coupling,wearing plate, seal apparatus, oil seal, motor and base.

The Nov Mission Magnum Pump has these features:

● Open impeller,apply to transport high viscosity drilling liquid.

● Combination seal for a long service life.

● Use universal bearing houses and bearings,convenient to maintain and cut the costs.

● The major parts are made from anti-wear nodular iron,and long service life.

Mission Magnum Mud Pump Size:

3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14

Mission Magnum Pumps Common Applications:

● Desanding and Desilting

● Mud Processing

● Water Well Drilling

● Industrial Transfer Pumping

● Saltwater Disposal and Water Flooding

● Barite & mineral oil-based drilling mud,

● Bentonite, salt water, slurry, chemical industry

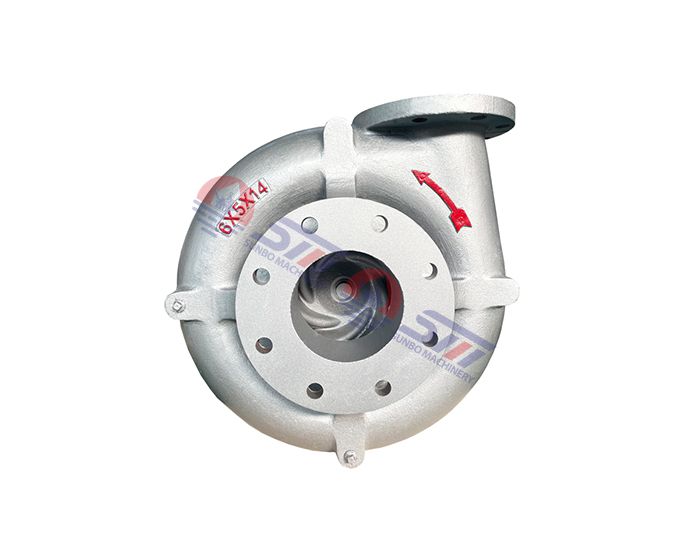

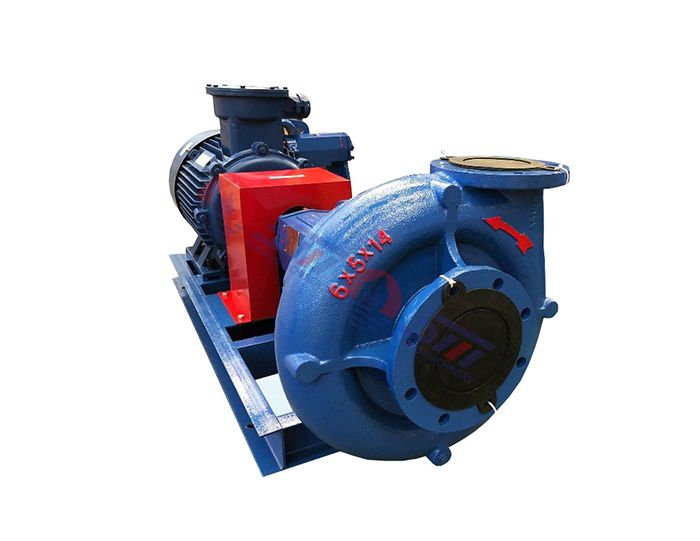

Mission Magnum Pump 6x5x14

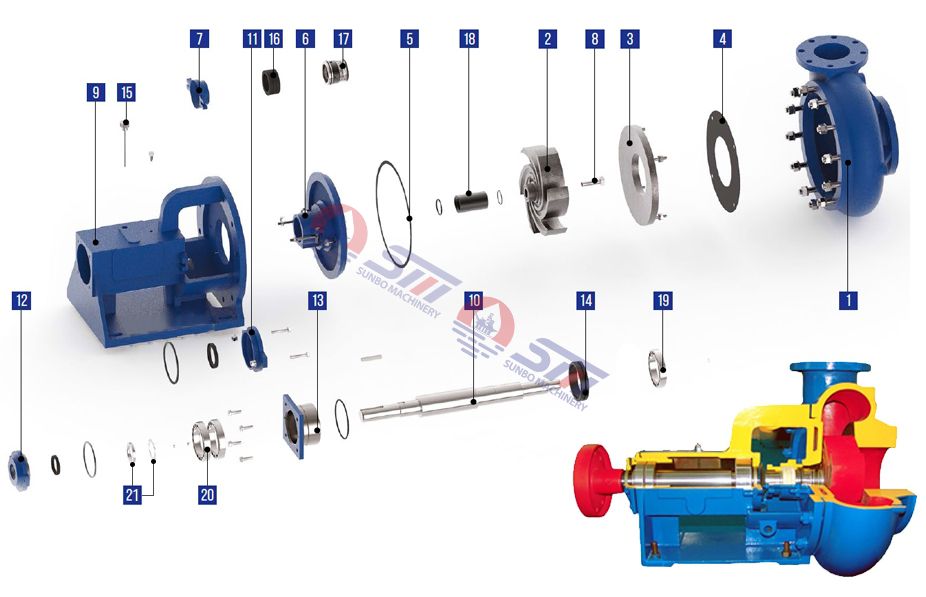

S250 series CENTRIFUGAL PUMP PARTS

QTY EA	DESCRIPTION	MAT.	S.M.	MCM
1	Casing	Hard Iron	See below	See below
1	Gasket, casing	Fiber	S-P25HG	P25HG
12	Nut, casing 3/4-10 hex head	Stl.,	S-P25HSN	P25HSN
12	Stud, casing 3/4-10 x 3 1/4”long	Stl.,	S-P25HSN	P25HSN
1	Impeller	Hard Iron	See below	See below
1	Seal, impeller	Viton	S-P25IMS	P25IMS
1	Stuffing box,mech.seal	Hard Iron	S-P25SB/MS	P25SB/MS
1	Stuffing box, packed	Hard Iron	S-P25SB/PK	P25SB/PK
2	Bolt, stuffing box 1/2-13 x 1 1/4”	Stl	S-P25SBB	P25SBB
1	Gland assy., packing	Stl. 304	S-P25PG	P25PG
1	Seal, mechanical	Tungst.Carbide	S-P25MSXX	P25MSXX
3	Packing,Shaft-M.S.Backup 3 Rings	Teflon
1	Graphite Packing,Shaft-w / Lantern ring	Graphite	S-P25PMSG	P25PMSG
1	Teflon Packing, Shaft	Teflon	S-P25PMST	P25PMST
1	Kevlar Packing, Shaft	Kevlar	S-P25PMSK	P25PMSK
2	Bolt assy,gland	Stl 304	S-P25GABA	P25GABA
1	Shaft	40Cr	S-P25SHFT	P25SHFT
1	Sleeve,shaft,M.S.	S.S.316
1	Sleeve,shaft,Pack	Ceramic Coated	S-P25SHSLVC	P25SHSLVC
1	Key,shaft	Stl	S-P25CK	P25CK
1	Seal, shaft sleeve	Viton	S-P25SSS	P25SSS
1	Deflector assembly	Composite	S-P25SRW	P25SRW
1	Frame, grease lubricated	Cast iron	S-P25PED	P25PED
1	Bearing,inboard	Vendor	S-P25IBBRG	P25IBBRG
1	Housing,O.B.bearing	Iron	S-P25OBBH	P25OBBH
1	Seal, O.B.Brg.housing	Buna-n	S-P25OBBHS	P25OBBHS
4	Bolts, O.B.Brg.housing 1/2”-13 x 1 1/2” Long	Stl	S-P25BHB	P25BHB
1	Cover,O.B.Bearing	Iron	S-P25OBBC	P25OBBC
1	O-ring, O.B.Brg.Cover	Buna-n	S-P25OBBCS	P25OBBCS
1	Oil seal, O.B.Brg.Cover	Buna-n	S-P25OBBOS	P25OBBOS
2	Bolt, O.B.Brg.Cover 3/8-16 x 1” Long	Stl	S-P25OBBCB	P25OBBCB
2	Bearing, O.B.	Vendor	S-P25OBBRG	P25OBBRG

Casing, 2×3×13	Hard Iron	S-P25D233H	P25D233H	Impeller, 2×3×13	Hard Iron	S-P25D233MRxxx	P25D233MRxxx
Casing, 3×4×13	Hard Iron	S-P25D343H	P25D343H	Impeller, 3×4×13	Hard Iron	S-P25D343MRxxx	P25D343MRxxx
Casing, 4×5×14	Hard Iron	S-P25D454H	P25D454H	Impeller, 4×5×14	Hard Iron	S-P25D454MRxxx	P25D454MRxxx
Casing, 5×6×11	Hard Iron	S-P25D454H	P25D454H	Impeller, 5×6×11	Hard Iron	S-P25D561MRxxx	P25D561MRxxx
Casing, 5×6×14	Hard Iron	S-P25D564H	P25D564H	Impeller, 5×6×14	Hard Iron	S-P25D564MRxxx	P25D564MRxxx
Casing, 6×8×11	Hard Iron	S-P25D681H	P25D681H	Impeller, 6×8×11	Hard Iron	S-P25D561MRxxx	P25D561MRxxx
Casing, 6×8×14	Hard Iron	S-P25D684H	P25D684H	Impeller, 6×8×14	Hard Iron	S-P25D584MRxxx	P25D584MRxxx
