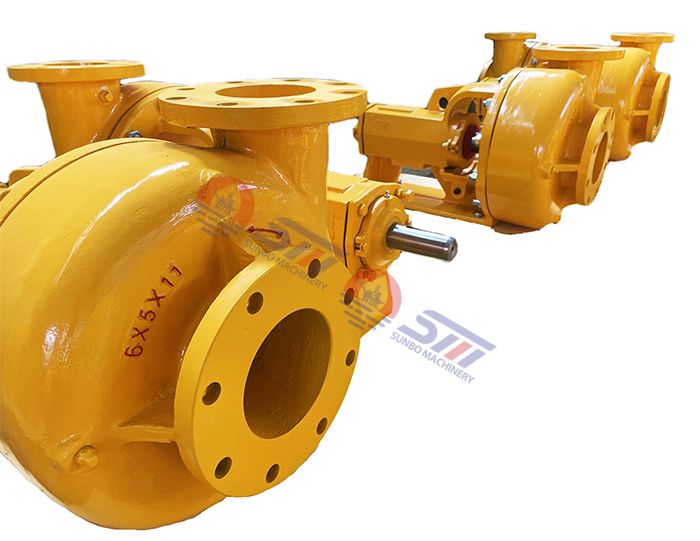

SM series centrifugal sand pump is equivalent to Nov Mission Magnum Pump, It's mainly supplies to solids control circulating system of oilfield drill rig, and be used to provide drilling liquid with a certain discharge capacity and pressure to sand, desilter pump package, desander pump package, mud charging pump package, brine pump package, base oil pump package and mud mixer, to assure these equipments work efficiently.

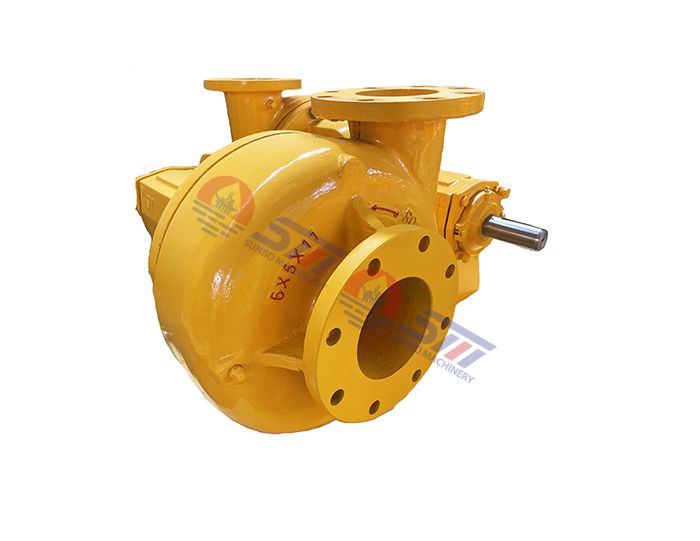

SM Series Mission Magnum Pump has been the most popular centrifugal pump because of its proven reliability, durability, and economical structure.The mission magnum pump has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The mission magnum pump is available in hard iron and stainless steel. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

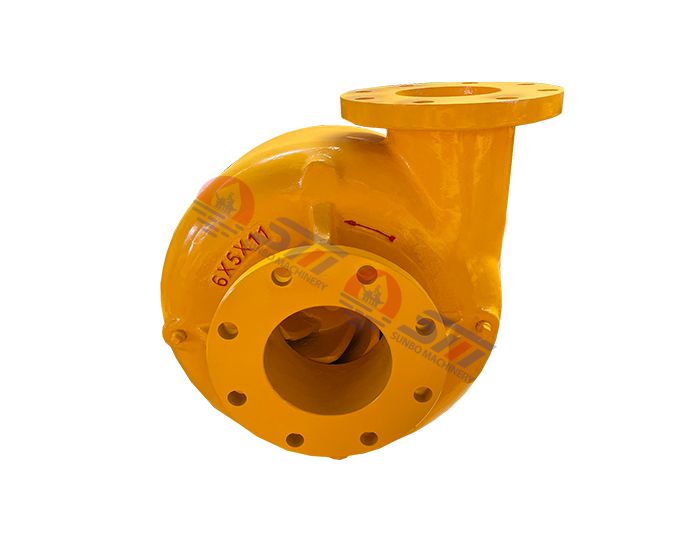

Mission magnum pump main parts are pump casing, impellers, bearing block, pump axle, bearing, shaft coupling, wearing plate, seal apparatus, oil seal, motor and base.
● Open impeller, suit to transport high viscosity drilling liquid.
● Combination seal for a long service life.
● Use universal bearing houses and bearings, convenient to maintain and cut the costs.
● The major parts are made from anti-wear nodular iron, and long service life.
3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14
● Sand Slurry
● Charge Pump
● Blender
● Waterwell Drilling
● Puple and Paper
● Slag
● Food Processing
● Sweage
● Cooper, bauxite, and quarry slurries
● Zinc, Ore, coal tailings
| Model | SM 10x8x14 | SM 8x6x14 | SM 8x6x11 | SM 6x5x14 |
| Discharge Volume (Max.) | 4300 gpm | 2600 gpm | 2150 gpm | 1825 gpm |
| Discharge Head (Max.) | 175ft | 205ft | 120ft | 225ft |
| PRM (min.-max.) | 1200~1800 | 1200~1800 | 1200~1800 | 1200~1800 |
| Inlet Diameter ( inch ) | 10 | 8 | 8 | 6 |
| Outlet Diameter ( inch ) | 8 | 6 | 6 | 5 |
| Weight (lb) | 705 | 595 | 595 | 529 |
| Dimension ( inch ) | 38 x 26 x 26 | 38 x 25 x 25 | 38 x 24 x 24 | 36 x 22 x 21 |
| Model | SM 6x5x11 | SM 5x4x14 | SM 4x3x13 | SM 3x2x13 |
| Discharge Volume (Max.) | 1800 gpm | 1150 gpm | 875 gpm | 550 gpm |
| Discharge Head (Max.) | 120ft | 215ft | 530ft | 500ft |
| PRM (min.-max.) | 1200~1800 | 1200~2100 | 1200~3600 | 1200~3600 |
| Inlet Diameter ( inch ) | 6 | 5 | 4 | 3 |
| Outlet Diameter ( inch ) | 5 | 4 | 3 | 2 |
| Weight (lb) | 529 | 529 | 445 | 432 |
| Dimension ( inch ) | 36 x 20 x 20 | 36 x 20 x 20 | 34 x 19 x 19 | 34 x 19 x 19 |

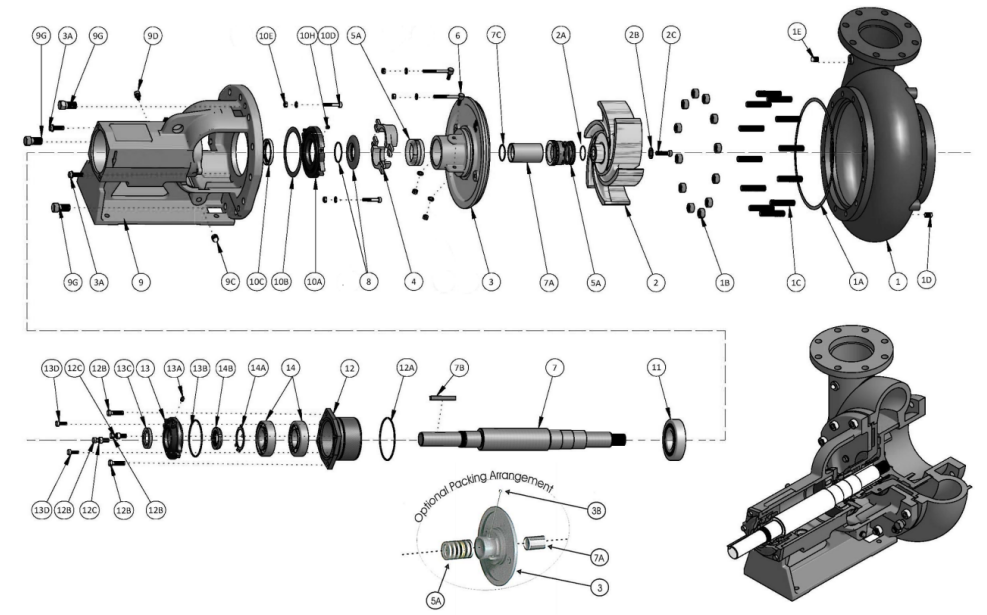

| ITEM | Qty.of 1 pump | MISSIONPART No. | DESCRIPTION | Qty. of 1 year | Qty. of 2 years | Qty. of 3 years | ||
| 1* | 1 | See below | Casing | 1 | 1 | 2 | ||
| 1A | 1 | 10399-46-1 | Gasket,casing | |||||
| 1B | 12 | 3932-61 | Nut,casing | |||||
| 1C | 12 | 3862-76 | Stud,casing | |||||
| 1D | 1 | 8505-04-01 | Plug,Casing Drain | |||||
| 1E | 1 | 8505-04-01 | Plug,flush line | |||||
| 2* | 1 | See below | Impeller | 2 | 3 | 4 | ||
| 2A | 1 | 19110-72 | Seal,impeller | |||||
| 2B | 1 | Washer,impeller | ||||||
| 2C | 1 | Bolt,impeler lock | 1 | 1 | 2 | |||
| 3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | 1 | ||||
| 3*& | 1 | 20614-01-30 | Stuffing box,packed | |||||
| 3A | 2 | 3861-117 | Bolt,stuffing box | |||||
| 3B& | 1 | 19368-01 | Grease fitting | |||||
| 4 | 1 | 20622A | Gland assy,packing | 0 | 0 | 1 | ||
| 5A# | 1 | 22451-1 | Seal,mechanical | 1 | 2 | 3 | ||
| 5A# | 3 | Packing, Shaft - M.S. Backup | 2 | 4 | 6 | |||
| 6 | 2 | B3701A | Bolt assy,gland | |||||
| 7 | 1 | 20612-02-33 | Shaft | 1 | 1 | 2 | ||
| 7A | 1 | 20943-04A | Sleeve,shaft | 2 | 3 | 4 | ||
| 7B | 1 | 4371-5-21 | Key,shaft | |||||
| 7C | 1 | 23444-01-72 | Seal,shaft sleeve | |||||
| 8 | 1 | 22210-1A | Deflector assembly | |||||
| 9 | 1 | 20618-12-1 | Frame,grease lubricated | 0 | 0 | 1 | ||
| 9C | 1 | 8505-04-01 | Plug, Frame Drain | |||||
| 9D | 1 | 8267-01 | Breather | |||||
| 9G | 3 | 2538-1H | Bolt,casing jack | |||||
| 10A | 1 | 20626 | Cover,inboard bearing | 0 | 0 | 1 | ||
| 10B | 1 | 20625 | Gasket,I.B.Brg.Cover | |||||
| 10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | 2 | 4 | 6 | ||
| 10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | |||||
| 10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | |||||
| 10H | 1 | 19368-01 | Grease fitting | |||||
| 11 | 1 | 20615-1 | Bearing,inboard | 1 | 1 | 2 | ||
| 12 | 1 | 20624-01-01 | Housing,O.B.bearing | 0 | 0 | 1 | ||
| 12A | 1 | 7496-253 | Seal, O.B.Brg.housing | |||||
| 12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | |||||
| 12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | |||||
| 13 | 1 | 20617A | Cover,O.B.Bearing | 0 | 0 | 1 | ||
| 13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | |||||
| 13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | |||||
| 13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | 2 | 4 | 6 | ||
| 13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | |||||
| 14 | 2 | 20616-1 | Bearing, O.B. | 1 | 1 | 2 | ||
| 14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | |||||
| 14B | 1 | 6123-4 | Locknut, O.B.Bearing | |||||
| Casings | ||||||||
| 1* | 1 | 19203-01-30A | Casing,3×2×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19205-01-30A | Casing,4×3×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19222-01-30A | Casing,5×4×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19122-01-30A | Casing,6×5×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19123-01-30A | Casing, 6×5×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19763-01-30A | Casing, 8×6×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19117-01-30A | Casing,8×6×14 | 1 | 1 | 2 | ||
| 1* | 1 | 20937-01-30A | Casing,10×8×14 | 1 | 1 | 2 | ||
| Impellers | ||||||||
| 2* | 1 | 19204-XX-30 | Impeller,3×2×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19206-XX-30 | Impeller,4×3×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19224-XX-30 | Impeller,5×4×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller,6×5×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19116-A0-30 | Impeller,8×6×14 | 2 | 3 | 4 | ||
| 2* | 1 | 21867-XX-30 | Impeller,10×8×14 | 2 | 3 | 4 | ||
Sunbo Machinery is a professional manufacturer of slurry pumps, mission pumps and ANSI pumps in China. If you have any specific needs or questions, please feel free to contact us and we will provide you with detailed answers and support.
Copy Right: Sunbo Machinery | Sitemap
Disclaimer: We don't represent or is not in anyway affiliated with Warman®, Metso®, Goulds®, Durco®, Andritz®, Mission® and other brand names, all these brand names are respected of their owners. Any brand name, model, number, symbols or any descriptions are used for reference purpose only, and do not imply that any part or pump listed is the product of Warman® , Metso®, Goulds®, Durco®,Andritz®, and Mission®. Our pump and spare parts interchangeable only.
