The Mission MAGNUM Pump has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications.

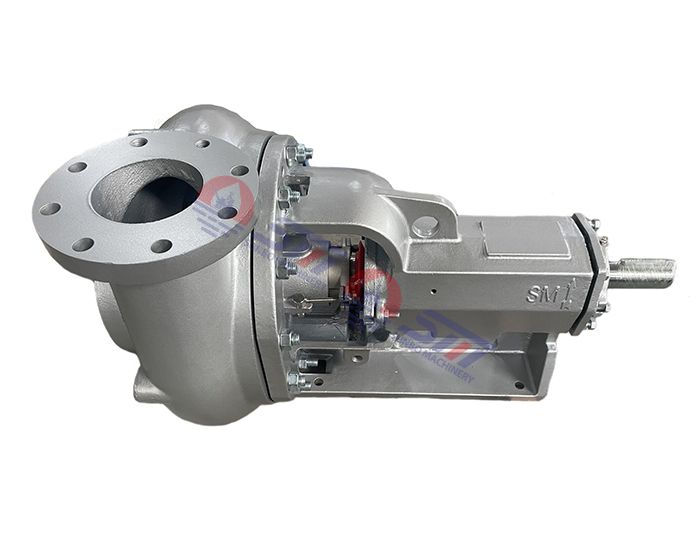

Mission magnum centrifugal pump has been the most popular centrifugal pump because of its proven reliability, durability, and economical structure. The mission magnum centrifugal pump has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The NOV Magnum 1 Pump is available in hard iron and stainless steel. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Mission magnum centrifugal pump main parts are pump shell, impellers, bearing block, pump axle, bearing, shaft coupling, wearing plate, seal apparatus, oil seal, motor and base.
The SM Series Mission Magnum Pump has these features:
● Open impeller, apply to transport high viscosity drilling liquid.
● Combination seal for a long service life.
● Use universal bearing houses and bearings, convenient to maintain and cut the costs.
● The major parts are made from anti-wear nodular iron, and long service life.
3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14
● Sand Slurry
● Charge Pump
● Blender
● Waterwell Drilling
● Puple and Paper
● Slag
● Food Processing
● Sweage
● Cooper, bauxite, and quarry slurries
● Zinc, Ore, coal tailings

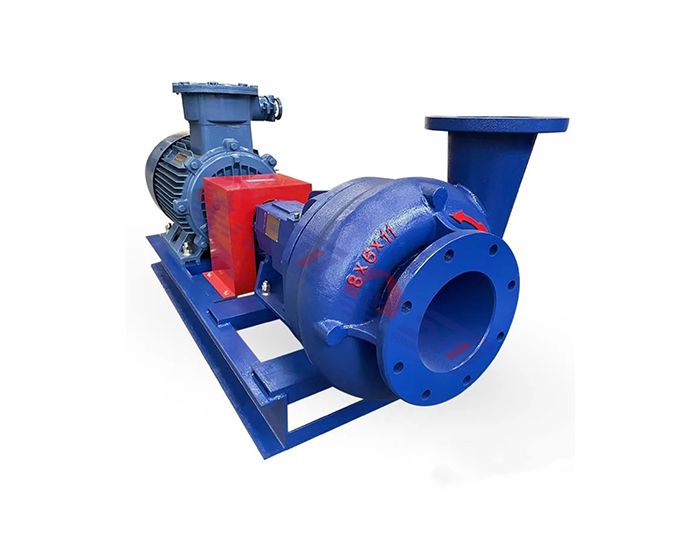

· Flow: 8x6x11 The Mission Magnum pump is a reliable option in the Mission Magnum centrifugal pump series, designed for medium-sized operations with lower flow requirements, making it ideal for medium-sized applications.
· Pressure and Head: The 8x6x11 Mission Magnum pump provides moderate head and pressure, making it suitable for standard drilling operations or general fluid transfer needs.
· Power Requirements: With its efficient design, the 8x6x11 Mission Magnum Pump consumes less power, making it a cost-effective and energy-efficient choice for low-flow operations.
· Application: The 8x6x11 Mission Magnum pump is ideal for small drilling operations, fluid handling, and scenarios where space and power availability are limited.
Choose the 8x6x11 Mission Magnum Centrifugal Pump for operations requiring a balance between efficiency, reliability and compact design.
| Model | SM 10x8x14 | SM 8x6x14 | SM 8x6x11 | SM 6x5x14 |
| Discharge Volume (Max.) | 4300 gpm | 2600 gpm | 2150 gpm | 1825 gpm |
| Discharge Head (Max.) | 175ft | 205ft | 120ft | 225ft |
| PRM (min.-max.) | 1200~1800 | 1200~1800 | 1200~1800 | 1200~1800 |
| Inlet Diameter ( inch ) | 10 | 8 | 8 | 6 |
| Outlet Diameter ( inch ) | 8 | 6 | 6 | 5 |
| Weight (lb) | 705 | 595 | 595 | 529 |
| Dimension ( inch ) | 38 x 26 x 26 | 38 x 25 x 25 | 38 x 24 x 24 | 36 x 22 x 21 |
| Model | SM 6x5x11 | SM 5x4x14 | SM 4x3x13 | SM 3x2x13 |
| Discharge Volume (Max.) | 1800 gpm | 1150 gpm | 875 gpm | 550 gpm |
| Discharge Head (Max.) | 120ft | 215ft | 530ft | 500ft |
| PRM (min.-max.) | 1200~1800 | 1200~2100 | 1200~3600 | 1200~3600 |
| Inlet Diameter ( inch ) | 6 | 5 | 4 | 3 |
| Outlet Diameter ( inch ) | 5 | 4 | 3 | 2 |
| Weight (lb) | 529 | 529 | 445 | 432 |
| Dimension ( inch ) | 36 x 20 x 20 | 36 x 20 x 20 | 34 x 19 x 19 | 34 x 19 x 19 |
MISSION MAGNUM AND SANDMATER SPARE PARTS
| ITEM | Qty.of 1 pump | MISSIONPART No. | DESCRIPTION | Qty. of 1 year | Qty. of 2 years | Qty. of 3 years | ||
| 1* | 1 | See below | Casing | 1 | 1 | 2 | ||
| 1A | 1 | 10399-46-1 | Gasket,casing | |||||
| 1B | 12 | 3932-61 | Nut,casing | |||||
| 1C | 12 | 3862-76 | Stud,casing | |||||
| 1D | 1 | 8505-04-01 | Plug,Casing Drain | |||||
| 1E | 1 | 8505-04-01 | Plug,flush line | |||||
| 2* | 1 | See below | Impeller | 2 | 3 | 4 | ||
| 2A | 1 | 19110-72 | Seal,impeller | |||||
| 2B | 1 | Washer,impeller | ||||||
| 2C | 1 | Bolt,impeler lock | 1 | 1 | 2 | |||
| 3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | 1 | ||||
| 3*& | 1 | 20614-01-30 | Stuffing box,packed | |||||
| 3A | 2 | 3861-117 | Bolt,stuffing box | |||||
| 3B& | 1 | 19368-01 | Grease fitting | |||||
| 4 | 1 | 20622A | Gland assy,packing | 0 | 0 | 1 | ||
| 5A# | 1 | 22451-1 | Seal,mechanical | 1 | 2 | 3 | ||
| 5A# | 3 | Packing, Shaft - M.S. Backup | 2 | 4 | 6 | |||
| 6 | 2 | B3701A | Bolt assy,gland | |||||
| 7 | 1 | 20612-02-33 | Shaft | 1 | 1 | 2 | ||
| 7A | 1 | 20943-04A | Sleeve,shaft | 2 | 3 | 4 | ||
| 7B | 1 | 4371-5-21 | Key,shaft | |||||
| 7C | 1 | 23444-01-72 | Seal,shaft sleeve | |||||
| 8 | 1 | 22210-1A | Deflector assembly | |||||
| 9 | 1 | 20618-12-1 | Frame,grease lubricated | 0 | 0 | 1 | ||
| 9C | 1 | 8505-04-01 | Plug, Frame Drain | |||||
| 9D | 1 | 8267-01 | Breather | |||||
| 9G | 3 | 2538-1H | Bolt,casing jack | |||||
| 10A | 1 | 20626 | Cover,inboard bearing | 0 | 0 | 1 | ||
| 10B | 1 | 20625 | Gasket,I.B.Brg.Cover | |||||
| 10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | 2 | 4 | 6 | ||
| 10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | |||||
| 10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | |||||
| 10H | 1 | 19368-01 | Grease fitting | |||||
| 11 | 1 | 20615-1 | Bearing,inboard | 1 | 1 | 2 | ||
| 12 | 1 | 20624-01-01 | Housing,O.B.bearing | 0 | 0 | 1 | ||
| 12A | 1 | 7496-253 | Seal, O.B.Brg.housing | |||||
| 12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | |||||
| 12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | |||||
| 13 | 1 | 20617A | Cover,O.B.Bearing | 0 | 0 | 1 | ||
| 13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | |||||
| 13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | |||||
| 13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | 2 | 4 | 6 | ||
| 13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | |||||
| 14 | 2 | 20616-1 | Bearing, O.B. | 1 | 1 | 2 | ||
| 14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | |||||
| 14B | 1 | 6123-4 | Locknut, O.B.Bearing | |||||
| Casings | ||||||||
| 1* | 1 | 19203-01-30A | Casing,3×2×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19205-01-30A | Casing,4×3×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19222-01-30A | Casing,5×4×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19122-01-30A | Casing,6×5×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19123-01-30A | Casing, 6×5×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19763-01-30A | Casing, 8×6×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19117-01-30A | Casing,8×6×14 | 1 | 1 | 2 | ||
| 1* | 1 | 20937-01-30A | Casing,10×8×14 | 1 | 1 | 2 | ||
| Impellers | ||||||||
| 2* | 1 | 19204-XX-30 | Impeller,3×2×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19206-XX-30 | Impeller,4×3×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19224-XX-30 | Impeller,5×4×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller,6×5×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19116-A0-30 | Impeller,8×6×14 | 2 | 3 | 4 | ||
| 2* | 1 | 21867-XX-30 | Impeller,10×8×14 | 2 | 3 | 4 | ||
