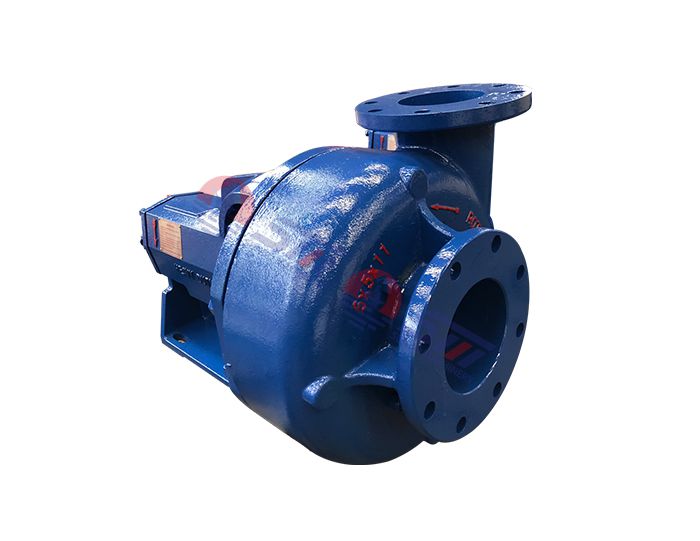

Mission Magnum 2500 Supreme Pump

Mission 2500 Supreme Centrifugal Pump has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 Supreme pump is completely interchangeable with MCM 250 centrifugal pump, It is available in hard iron, supreme hard iron, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

S2500 SUPREME is equivalent to MCM centrifugal pump, It's a robust and powerful centrifugal sand pump. which has an open impeller design, wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The S2500 SUPREME wide impeller reduce the pump housing inner pressure, and the strong big shaft design, increasing the pump life time maximally. The main wear parts are made of high hardness alloy, and the pump can work with motor, diesel engine, and hydraulic motor, anyway is ok. We offers pump, pump parts and whole pumping system, we are meeting all your request.

Typical  Configurations:

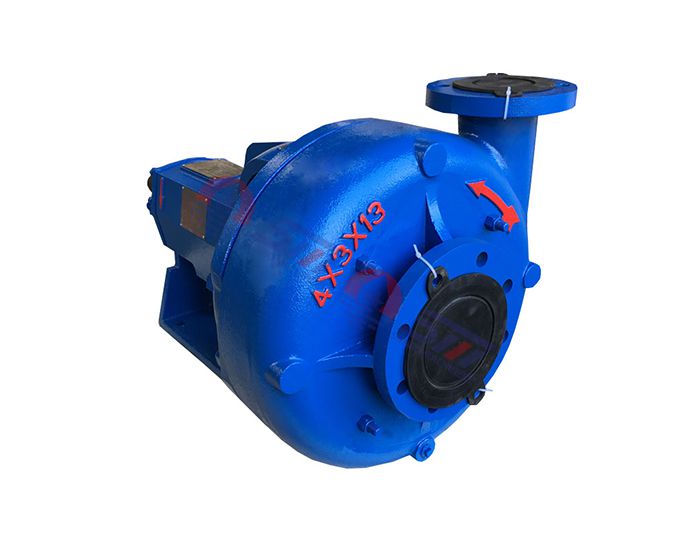

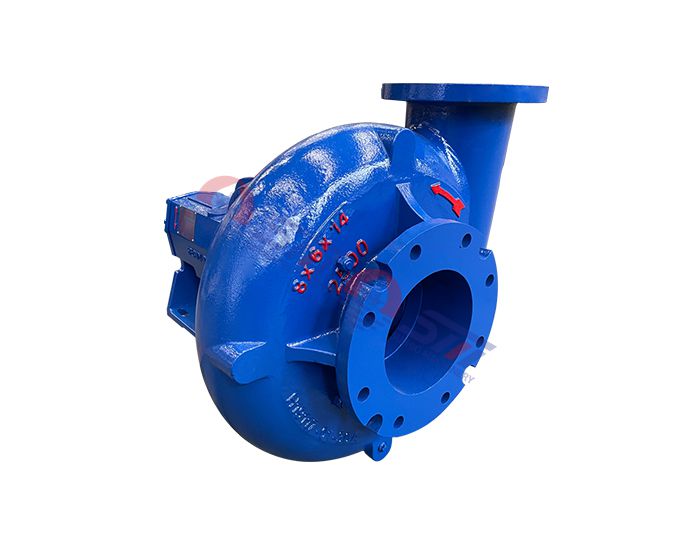

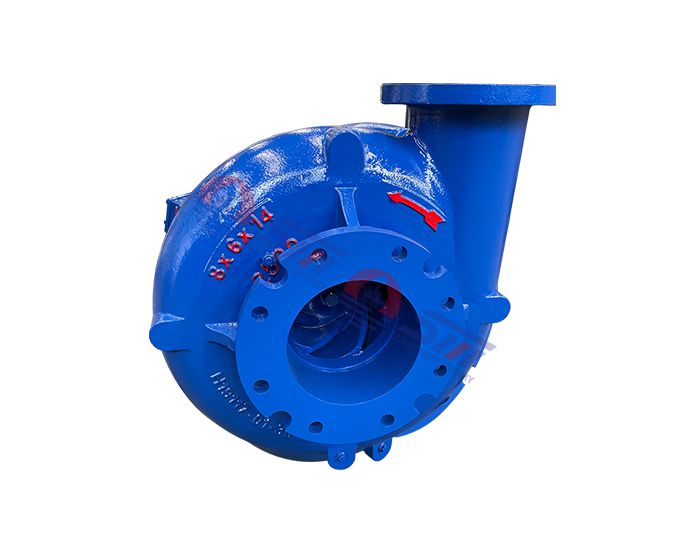

3x2x13, 4x3x13, 5x4x14, 6x5x14, 6x5x11, 8x6x11, 8x6x14, 10x8x14

Design Features:

• Versatile stuffing box

• Thick, strong, concentric casing with replaceable casing wear pad

• Casing provided with replaceable casing wear pad on 4x3x13 - 10x8x14 models

• Replaceable stuffing box cover with dual stuffing box bolts

• Long-life, no-adjustment mechanical seal available for near zero leakage

• Replaceable shaft sleeve

• Solid Frame base

• Labyrinth seals for maximum bearing protection

• Duplex angular contact bearings

• Full pipe diameter entrance for minimum turbulence and maximum efficiency

• Wide semi-open impeller creates lower axial thrust for improved bearing life

• All sizes feature the same power end

Mission 2500 Supreme Centrifugal Pump Specifications

Mission 2500 Supreme Centrifugal Pump parts List
