6/4 Horizontal Slurry Pump China, Top Manufacturer

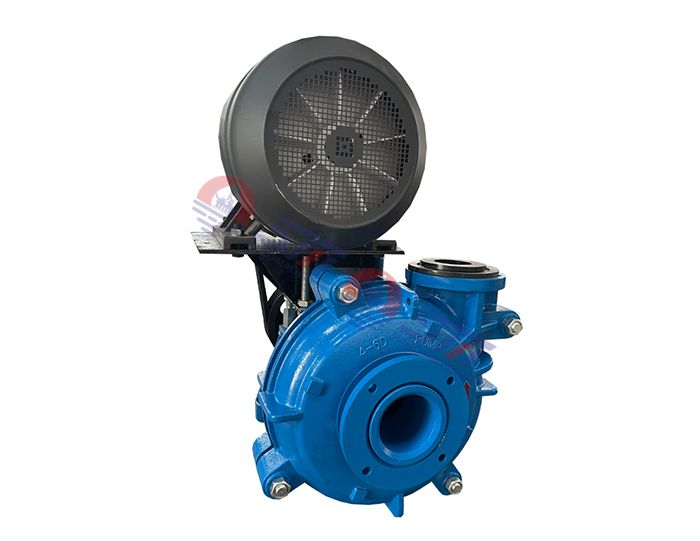

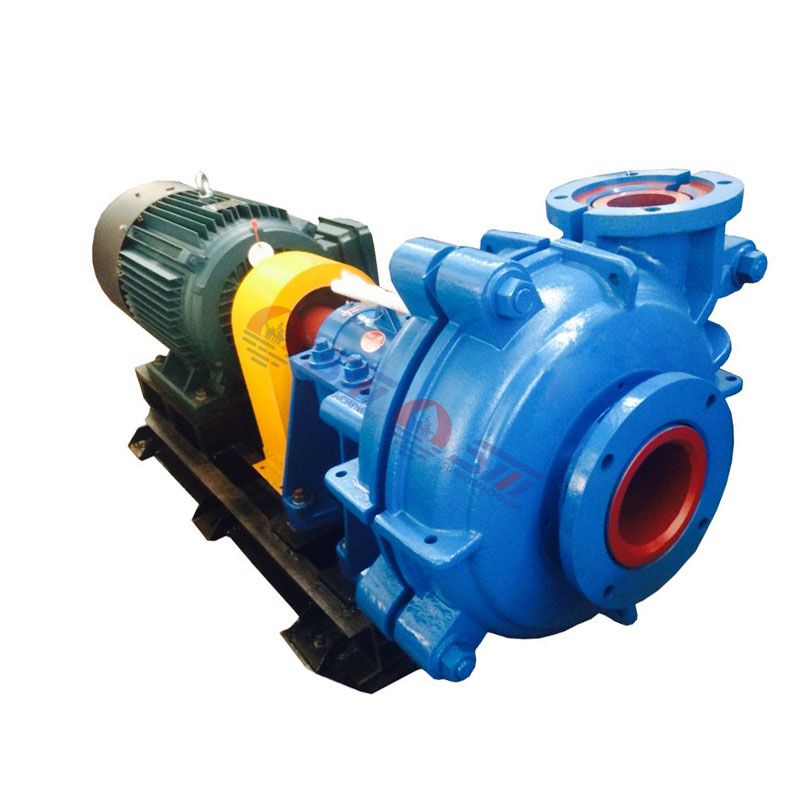

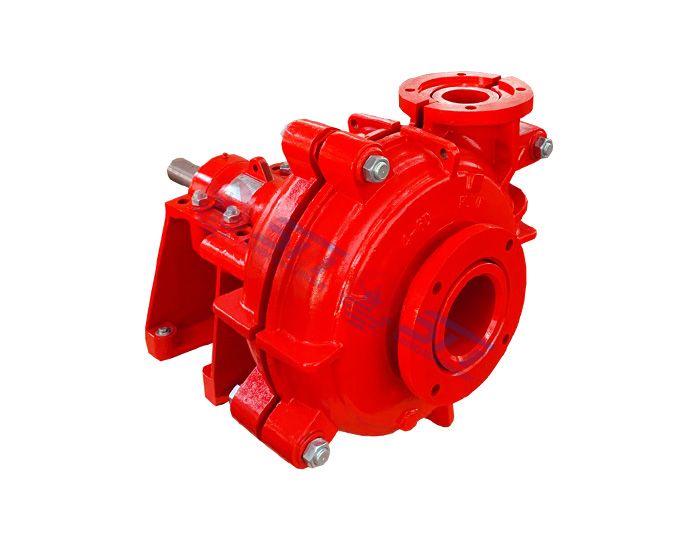

  • The 4" slurry pump is equivalent to warman slurry pumps 6/4D –AH, for metallurgy, coal washing. It is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The High Chrome Alloy Slurry Pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.

Share

6/4 Slurry Pump type HS is the standard heavy duty slurry pumps which designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements. The HS type China Slurry Pump is equivalnet to warman slurry pumps AH. It maintains high efficiencies over the wear life of its components. This type of pump typically used in heavy minerals processing, mineral recovery process plant transfers,wet waste processes, recycling-washing plant, sand plant duties and chemical process plant.


Sunbo Machinery 6/4 Warman Pump Range:

Discharge Size: 1"to 18"

Capacity: 4 to 5400m³/h

Heads: 5 to 75m


Typical Application:

★ Mill Discharge

★ Coarse Sand

★ Coarse Tailings

★ Mineral Concentration

★ Heavy Media

★ Coal Washing

★ FGD

★ Process Chemical

★ Bottom/Fly Ash

★ Metal Smelting

★ Bottom/fly ash, lime grinding


6/4 Warman Slurry Pump Structure


Horizontal Quality Slurry Pump, Replace 6/4 Warman Pump


Features of Sunbo Machinery 6/4 Warman Pump

Structural Design

High-efficiency impeller: Sunbo Machinery 6/4 Warman Pump adopts a specially designed impeller, which can maintain low wear while operating efficiently, suitable for long-term stable work.

Wear-resistant materials: The pump body and main components are usually made of high chromium alloy or wear-resistant rubber to ensure long life and high reliability when conveying high-hardness and highly corrosive media.

Modular design: Easy to disassemble, overhaul and replace parts, reduce downtime and improve maintenance efficiency.


Performance Characteristics

High efficiency: The efficient hydraulic design makes the 6/4 Warman pump have high efficiency and can significantly reduce energy consumption and operating costs.

High wear resistance: The use of wear-resistant materials and design can operate for a long time under harsh working conditions, reducing the frequency of maintenance and replacement.

Diversified configuration: According to different working conditions, a variety of pump types and material options are provided to adapt to different media and working conditions.


● Available with only one impeller, the HS series heavy duty slurry pump is a horizontal cantilever unit that allows slurry to enter the pumping chamber from only one suction side.

● Another key feature of this horizontal pump is the double-casing design. Parts in contact with the slurry are replaceable and made of high-chrome for maximum resistance to wear and abrasion. Rubber and polyurethane are selected to make liners and impellers, ensuring excellent serviceability, longevity and durability under all conditions.

● This series of heavy duty slurry pump offers a variety of impeller options to meet a broad range of operating conditions and customer specific requirements.

● The rotating shaft is sealed by way of packing seal. The expeller dynamic seal and other mechanical seal arrangements are among options, too.

● A number of pumps can be connected in series for use.

● The discharge outlet has 8 positions at 45 degree intervals that can be selected to meet the installation and application requirements.


Advantages

★ Optimized structure is suitable for heavy-duty tasks, ensuring serviceability and longevity.

★ The double-casing design of our 6/4 warman replace slurry pump allows for axial split. Made of ductile iron, the pump casing is able to withstand major pressure produced within the pumping chamber. Liners are made of wear- resistant materials, and do not stick to the outer casing for ease of maintenance and replacement.

★ The slurry pump body is fixed to the pump base or mounting base by several bolts. Users can adjust the clearance between impeller and suction liner easily from underneath the bearing support, or bearing pedestal

★ Packing gland seal, mechanical seal and expeller seal are available to prevent slurry leakage during pumping operation.


Shaft Seal Structure:


Horizontal Quality Slurry Pump, Replace 6/4 Warman Pump


Shaft Seal Type:

★ Packing Seal

As one of the most popular shaft seal type,the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

★ Expeller Seal

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

★ Mechanical Seal

HS series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.

We also utiize special ceramic and alloys of high strength and hardness on parts that are subjected to friction.Unique design of and seamless fit between the mechanical seal and seal chamber provides excellent resistance to abrasion and shock that ensures its effectiveness under the toughest conditions.


Slurry Pump and Engine System Drive Types:

★ DC Type: The output shaft of a motor is directly connected to the input shaft of a pump via a pump coupler. This type of connection is suitable for applications where the speed of the slurry pump is the same as that of the motor.

★ CV Type: The tailing handling slurry pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed.The motor is fixed to the motor support frame which is located on the bearing support above the slurry pump.

★ ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support.This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.

★ CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump.This installation method is suitable for large-power motors.


HS Slurry Pump Performance Specifications:


PUMP
MODEL
OEM PUMP MODELMAXCAPACITYHEADSPEEDMAX.EffNPSH
POWER (KW)(m 3 /h)H(m)n(r/min)η%(m)
25HS-B1.5/1B-AH1512.6~28.86~681200~3800402~4
25HSR-B1.5/1B-AHR1510.8-25.27-521400-3400352~3
40HS-B2/1.5B-AH1532.4~726~581200~3200453.5~8
50HS-C3/2C-AH3039.6~86.412~641300~2700554~6
75HS-C4/3C-AH3086.4~1989~521000~2200714~6
75HS-D4/3D-AH60
100HS-D6/4D-AH60162~36012~56800~1550655~8
100HS-E6/4E-AH120
100HSR-D6/4D-AHR60144~32412~45800~1350653~5
100HSR-E6/4E-AHR120
150HS-E8/6E-AH120360~82810~61500~1140722~9
150HS-R8/6R-AH300
150HSR-E8/6E-AHR120324~7207~49400~1000655~10
150HSR-R8/6R-AHR300
200HS-ST10/8ST-AH560612~136811~61400~850714~10
200HSR-ST10/8ST-AHR560540~11887~45300~650802.5~7.5
250HS-ST12/10ST-AH560936~19807~68300~800826
250HSR-ST12/10ST-AHR560720~162013~14300~500793~8
300HS-ST14/12ST-AH5601260~277213~63300~600773~10
300HSR-ST14/12ST-AHR5601152~252011~63250~550794~10
350HS-ST16/14ST-AH12001368~306011~63250~550794~10
400HS-TU18/16TU-AH12002160~50548~66200~500804.5~9
450HS-TU20/18TU-AH12002520~540013~57200~400855~10


Sunbo Machinery 6/4 Warman Pump Applications

The 6 4 slurry pump( replace 6/4 warman pumps) is the pump for high abrasive, high density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud, industry processing etc.

• Mining

• Mineral processing

• Aggregate processing

• Chemical and Fertilization

• Power generation

• Phosphate matrix fertilization

• Pulp and paper

• Waste sludge

• Paper mill wastes and liquors

• Precipitated CaCO3

• Plaster

• Bottom/fly ash, lime grinding

• Dirty water

• Pulp and paper

• Oil and gas

• Waste water treatment

• Ball mill discharge

• Rod mill discharge

• SAG mill discharge

• Fine tailing

• Flotation

• Heavy media process

• Minerals concentrate

• Mineral sands

• Coal-washing plant

• Coarse sand

• Coarse tailing

• Dredging

• FGD

• Wet crushers applications

• Wet scrubber systems

• Process chemical

• Iron and Steel

• Ni acid slurry

• Fracking slurries

• Clay and sand slurries

• Kaolin clay

• Carbon slurry

• Lime mud

• Oil sands

• Phosphoric acid

• Secondary grinding

• Cracking operations

• Cyclone feeds

• Fine primary mill grinding
