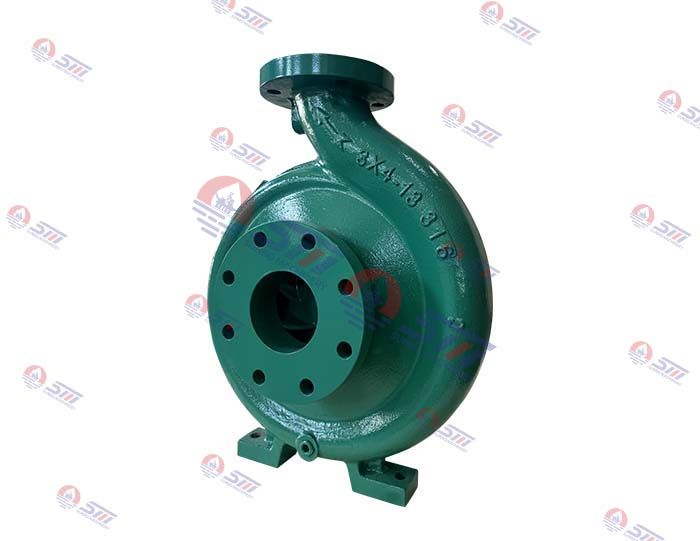

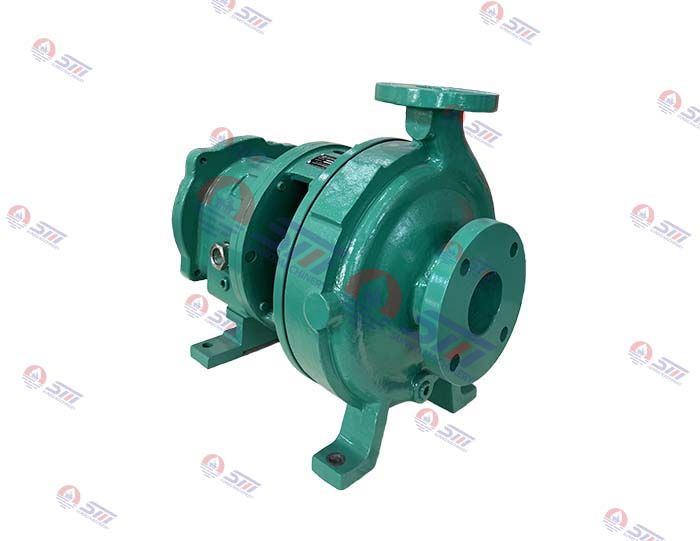

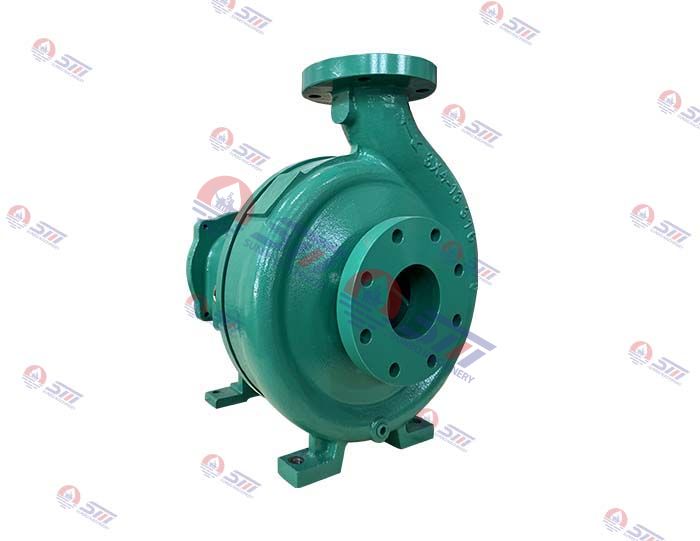

3X4-13 ANSI pump, ANSI Goulds 3196 pump, ASME B73.1 chemical pump

  • ASME B73.1 Type G chemical processing pump is equivalent to Goulds 3196 pump. There are four types of materials for your convenience, SS316, CD4M, CN7M and Hastelloy CF8M, to meet different working condition demands. Both types of pumps offer exceptional hydraulic performance, supreme reliability, lowest cost and very easy maintenance.

Share

ANSI Pump Overview

ANSI pump is a common centrifugal pump conforming to the American National Standards Institute (ANSI), and has the characteristics of high efficiency, corrosion resistance, easy maintenance, wide application, 'reliability and security. ANSI pumps are typically used to handle clean or lightly contaminated fluids, such as water, chemicals, petroleum products, etc., and are suitable for a variety of industrial and commercial applications.


ANSI Pump Specifications

● Capacities up to 7,000 GPM (1,590 m 3 /h)
● Heads towards 730 feet (223 m)
● Temperatures up to 700 F (371 C)
● Pressures up to 375 PSIG (26 bar)



ANSI Pump Features:

● Fully open turbine
● Robust housing design
● Technical joint chambers
● Rear sliding design, easy maintenance
● Adjustment of the external turbine

Typical ANSI Pump Applications

★ Chemical transfer
★ Petrochemical treatment
★ Brine
★ Purple and paper
★ Food and beverage processing
★ Hydrocarbon
★ Pharmaceutical products
★ Primary metals
★ Corrosive service

ANSI Pump Available - Goulds 3196 Pump Size:

1x1.5-61.5x1-62
1x1.5-81.5x1-82
1.5x3-63x1.5-62
1.5x3-83x1.5-82
2x3-63x2-62
3x4-73x2-82
2x3-84x3-82
3x4-82x1-10A
3x4-8G3x1.5-10
1x2-103x1.5-10A
1.5x3-103x2-10
2x3-103x2-10A
3x4-104x3-10
3x4-10H4x3-10H
4x6-106x4-10
4x6-10H6x4-10H
1.5x3-133x1.5-13
2x3-133x2-13
3x4-134x3-13
4x6-134x3-13HH
6x8-136x4-13A
8x10-138x6-14A
8x10-1510x8-16
8x10-15G10x8-16H
6x8-156x4-16
4x6-178x6-16
6x8-178x6-16A
8x10-17


Goulds 3196ANSI pump, ASME B73.1 Prcess End Suction Pump
