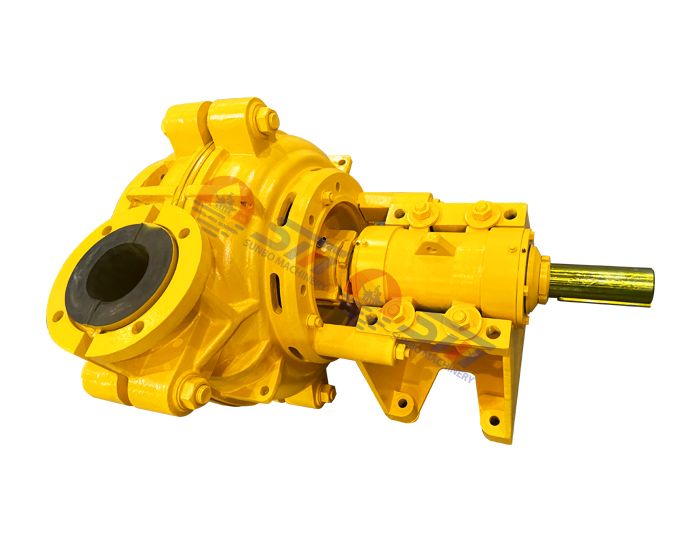

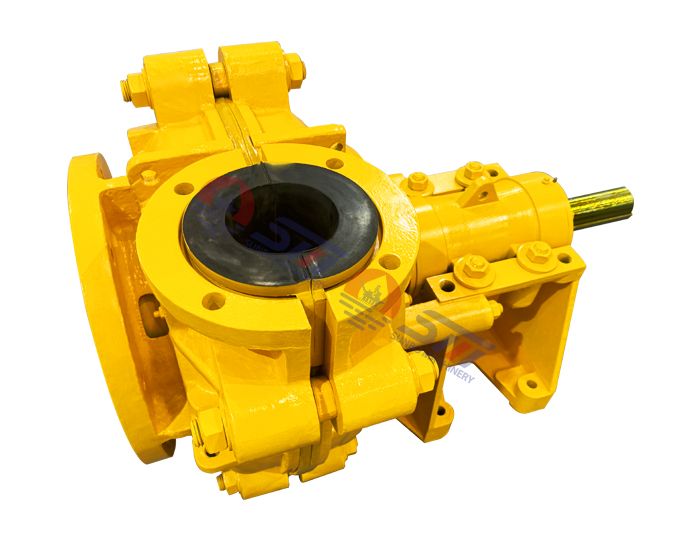

The SAHF Horizontal Froth Slurry Pump is pumping slurry with obstinate froth, which is equivalent to warman Froth Pump AHF Series. It is specially design for handing foam and solid slurry mixture.
Based on the HS series of heavy-duty slurry pumps, the SAHF range of horizontal pumps is specifically designed for pumping froth with fine particles.
These pumps are able to handle heavy froth and viscous concentrated non-Newtonian slurries with ease.

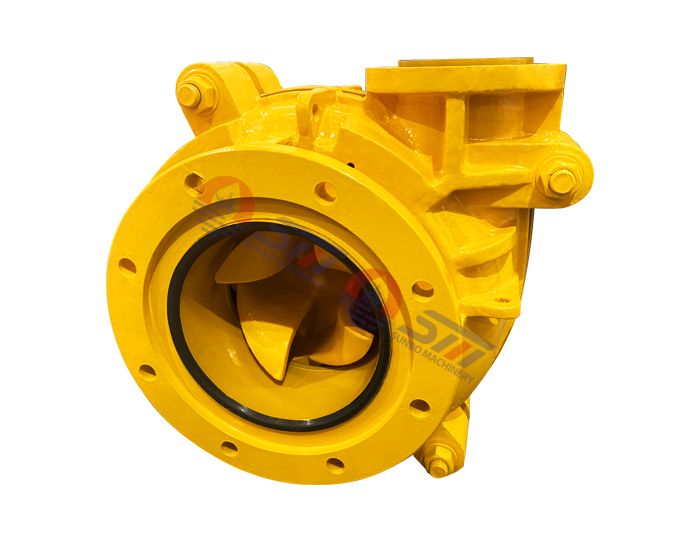

They have a unique impeller with oversized inducer blades on each vane and a large eye, making the entrained air bubbles dissipate or reduce in size so that they do not inhibit the flow of the slurry.
Design features: Take a small bulk, high efficiency. Special froth impeller with large inlet size, this benefit to the large size solids. There is difference between pumping froth slurry and normal slurry. The horizontal froth slurry pump is upto high performance to pump high viscosity slurry.
The problem of handling froth in some process circults can be very frustrating. Froth often will air bind a standard pump. The froth inducer blade impeller solves this problem.
● The pump inside liner is corrosion resistant rubber material or metal.
● The impeller is anti-abrasive type high chrome metal impeller or rubber, or mixed assembly.
● Small structure but high efficient.
● Low power costs, reliable operation, minimal surging, and feed tank overflow make horizontal froth pumps
user friendly.
● Simplified maintenance.
Applications
● Suitable for various liquids performance, which is the first select product for handling mine mill slurry and
tailing slurry.
● Basing on medium condition can choose different materials as A05, A07, A49 etc.
● Iron Ore Dressing Plant
● Copper Concentration Plant
● Gold Mine Concentration Plant
● Molybdenum Concentration Plant
● Potash Fertilizer Plant
● Other Mineral Processing Plants
● Other industries
