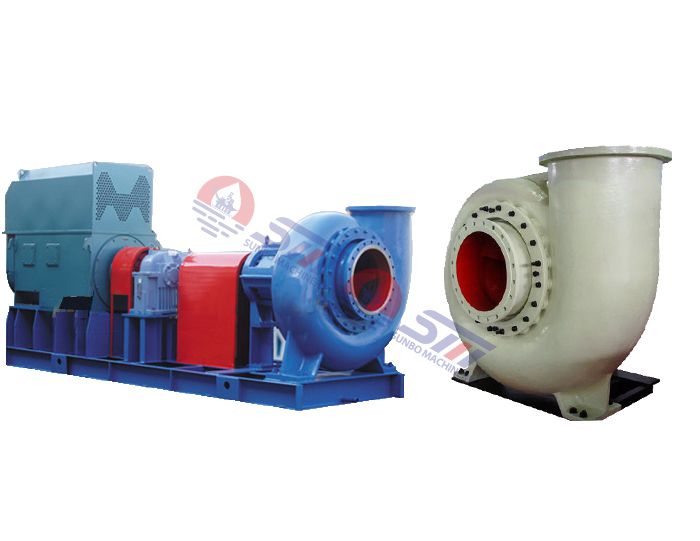

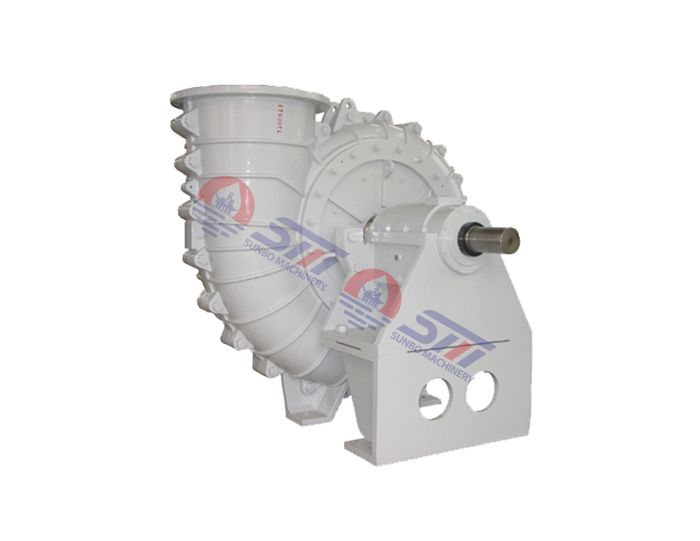

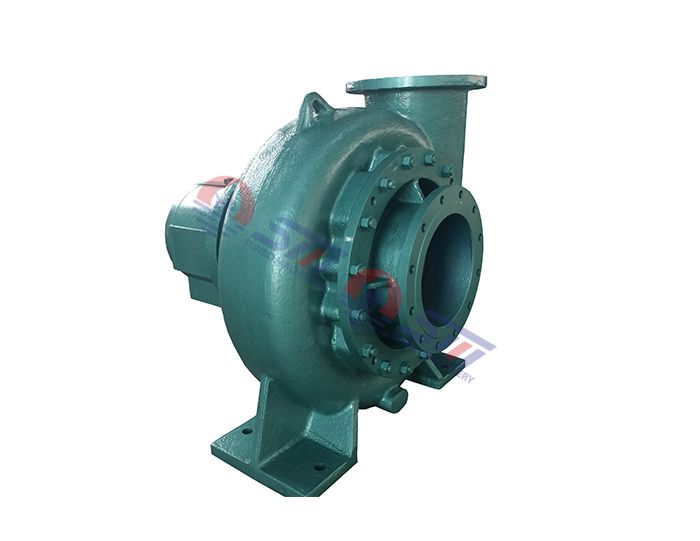

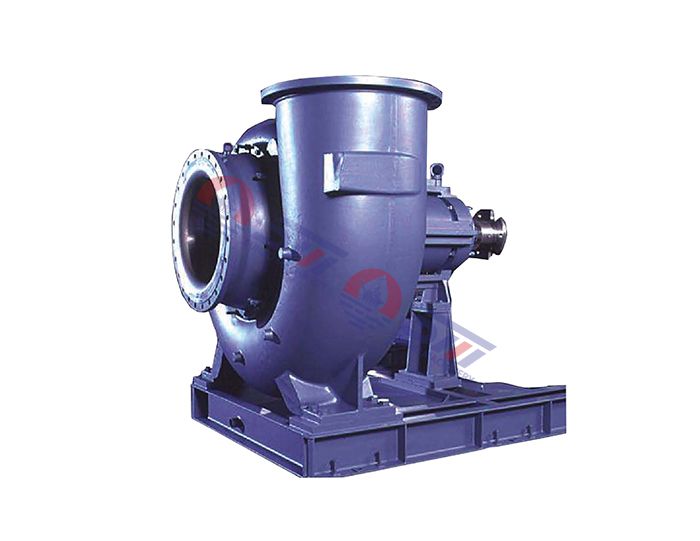

FGD pump is single stage, single suction horizontal centrifugal pump. It is mainly used as the circulating pump for absorption tower in FGD system in Power Plant.
The pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency. The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the long-life pump operation. Through adjusting the bearing components to change the impeller position in the pump chamber all-time high-efficient operation of the pump can be achieved. The pump is characterized by the back knock-down structure which is simple and advanced. It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable.
The wet parts are designed with the CFD Fluid Simulating Analysis Technology to ensure its high-efficiency operation. The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the pump long wear life. Low noise and minimum vibration are other benefits.
The pump design adopts back pull-out structure, which is easy to disassemble and without need to remove the inlet and outlet pipeline. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable.
Specification:
Series of TL(R) Desulphurization Pump
D: 350-1000mm
Q: 1500-14000 m3/h
H: 12-32m
| Type | Capacity (m 3 /h) | Head ( m ) | Speed ( r/min ) | Maximum efficiency η(%) | NPSH (m) | Outlet diameter (mm) | Inlet diameter (mm) |
| 350X-TL(R) | 1600 | 25 | 960 | 82 | 4.5 | 350 | 400 |
| 400X-TL(R) | 2500 | 25 | 725 | 83 | 5.0 | 400 | 450 |
| 500X-TL(R) | 3750 | 25 | 725 | 85 | 5.0 | 500 | 500 |
| 600X-TL(R) | 6300 | 25.5 | 620 | 88 | 5.5 | 600 | 700 |
| 700X-TL(R) | 6840 | 26 | 485 | 87 | 6.0 | 700 | 800 |
| 800X-TL(R) | 9360 | 31 | 485 | 90 | 7.0 | 800 | 900 |
| 900X-TL(R) | 15000 | 30 | 485 | 90 | 8.5 | 900 | 1000 |
| 1000X-TL | 10440 | 15 | 485 | 89 | 7.0 | 1000 | 1200 |
| Type | Speed n | Capacity Q | Head H | Power of shaft Pa | Efficiency | Must be cavitation margin | Electric machine |
| (NPSH)r | Power/Voltage | ||||||
| r/min | m3/h | m | KW | m | KWN | ||
| 800DT-A90 | 590 | 6200 | 28.7 | 553.2 | 87.6 | 2.7 | 710/6000 |
| 8800 | 26.1 | 700.4 | 89.3 | 3.5 | 900/6000 | ||
| 9700 | 23.5 | 715.2 | 86.8 | 3.9 | 900/6000 | ||
| 490 | 5170 | 20 | 321.5 | 87.6 | 2 | 400/6000 | |
| 7338 | 18.1 | 405 | 89.3 | 2.5 | 500/6000 | ||
| 8089 | 16.3 | 413.7 | 86.8 | 2.9 | 560/6000 | ||
| 700DT-A84 | 590 | 4250 | 24.5 | 326.3 | 86.9 | 2.8 | 500/6000 |
| 6300 | 22.3 | 430.9 | 88.8 | 3.5 | 560/6000 | ||
| 7360 | 20.1 | 467.4 | 86.2 | 4 | 630/6000 | ||
| 490 | 3545 | 17 | 188.9 | 86.9 | 2 | 250/6000 | |
| 5255 | 15.5 | 250 | 88.8 | 2.6 | 315/6000 | ||
| 6140 | 14 | 2716 | 86.2 | 3 | 355/6000 | ||
| 600DT-A82 | 590 | 3300 | 27.8 | 343.2 | 72.8 | 3 | 500/6000 |
| 4700 | 24.7 | 358 | 88.3 | 3.7 | 500/6000 | ||
| 5300 | 21.7 | 362.9 | 86.3 | 4 | 500/6000 | ||
| 5600 | 20.4 | 368.2 | 84.5 | 4 | 500/6000 | ||
| 490 | 2718 | 18.9 | 192.2 | 72.8 | 2.2 | 280/6000 | |
| 3871 | 16.8 | 200.6 | 88.3 | 2.8 | 280/6000 | ||
| 4368 | 14.7 | 202.5 | 86.3 | 3 | 280/6000 | ||
| 4612 | 13.8 | 205.1 | 84.5 | 3 | 280/6000 | ||
| 500DT-A85 | 590 | 2040 | 26.8 | 204.5 | 72.8 | 4.1 | 250/6000 |
| 3400 | 24.4 | 266.7 | 84.7 | 355/6000 | |||
| 4080 | 22.4 | 305.2 | 80.1 | 400/6000 | |||
| 490 | 1702 | 18.6 | 118.4 | 72.8 | 3.1 | 220/6000 | |
| 2836 | 17 | 155 | 84.7 | 220/6000 | |||
| 3403 | 15.3 | 177 | 80.1 | 220/6000 | |||
| 350DT-A78 | 740 | 1332 | 51.1 | 289.6 | 64 | 6.5 | 355/6000 |
| 2430 | 44.5 | 377.7 | 78 | 500/6000 | |||
| 2865 | 39.6 | 408.7 | 75.6 | 500/6000 | |||
| 590 | 1062 | 32.5 | 146.9 | 64 | 3.5 | 185/6000 | |
| 1938 | 28.3 | 191.5 | 78 | 250/6000 | |||
| 2284 | 25.2 | 207.3 | 75.6 | 280/6000 | |||
| 300DT-A60 | 980 | 1170 | 63.1 | 235.6 | 718 | 8.4 | 315/6000 |
| 1779 | 47.1 | 281.4 | 811 | 355/6000 | |||
| 2403 | 36.1 | 313.3 | 75.4 | 400/6000 | |||
| 740 | 878 | 29.9 | 99.6 | 71.8 | 4.3 | 132/380 | |
| 1335 | 26.5 | 118.8 | 811 | 160/380 | |||
| 1803 | 20.3 | 132.2 | 75.4 | 160/380 | |||
| 200DT-45B | 990 | 279 | 31 | 37.4 | 62.9 | 3.3 | 55/380 |
| 557 | 26.1 | 49 | 80.8 | 75/380 | |||
| 645 | 23.3 | 52.6 | 77.8 | 75/380 | |||
| 730 | 206 | 16.9 | 15.1 | 62.9 | 2 | 22/380 | |
| 410 | 14.2 | 19.6 | 80.8 | 30/380 | |||
| 475 | 12.7 | 21.1 | 77.8 | 30/380 | |||
| 150DT-55B | 990 | 280 517 | 53.7 48 | 64.8 | 63.2 | 3.7 | 90/380 |
| 88.3 | 76.5 | 110/380 | |||||
| 630 | 45.9 | 100.8 | 78.1 | 132/380 | |||
| 740 | 209 | 30 | 27 | 63.2 | 2.3 | 37/380 | |
| 387 | 26.8 | 36.9 | 76.5 | 55/380 | |||
| 471 | 25.7 | 42.2 | 78.1 | 55/380 | |||
| 150DT-50 | 980 | 123 | 44.6 | 27.6 | 54.1 | 3.5 | 37/380 |
| 221 | 40.1 | 36.9 | 65.4 | 55/380 | |||
| 279 | 37.2 | 43.4 | 65.2 | 55/380 | |||
| 740 | 92 | 24.7 | 11.4 | 54.1 | 2.1 | 18.5/380 | |
| 165 | 22.3 | 15.3 | 65.4 | 22/380 | |||
| 208 | 20.6 | 17.9 | 65.2 | 30/380 | |||
| 150DT-40 | 1480 | 260 | 61.2 | 68.8 | 63 | 6.5 | 90/380 |
| 440 | 53.8 | 88.2 | 73.1 | 110/380 | |||
| 503 | 50.7 | 95.4 | 72.8 | 132/380 | |||
| 980 | 171 | 26.5 | 19.6 | 63 | 2.6 | 30/380 | |
| 289 | 23.3 | 25.1 | 73.1 | 37/380 | |||
| 331 | 21.9 | 27.1 | 72.8 | 37/380 | |||
| 100DT-45 | 1480 | 88 | 76.4 | 43.6 | 42 | 6 | 55/380 |
| 166 | 65.2 | 56.9 | 51.8 | 75/380 | |||
| 219 | 54.3 | 66.5 | 48.7 | 90/380 | |||
| 970 | 57 | 32.8 | 12.1 | 42 | 2.4 | 18.5/380 | |
| 109 | 28 | 16 | 51.8 | 22/380 | |||
| 144 | 23.3 | 18.8 | 48.7 | 30/380 | |||
| 1480 | 129 219 268 | 61 56.1 53.6 | 37.7 48.7 55.6 | 56.9 68.7 70.4 | 3.5 | 55/380 | |
| 75/380 75/380 | |||||||
| 100DT-40B | 970 | 85 | 26.2 | 10.7 | 56.9 | 1.7 | 15/380 |
| 144 | 24.1 | 13.8 | 68.7 | 22/380 | |||
| 176 | 23 | 15.7 | 70.4 | 22/380 | |||
| 100DT-35 | 1480 | 163 | 45.9 | 33.5 | 60.9 | 4.1 | 45/380 |
| 278 | 41.5 | 43.7 | 71.9 | 55/380 | |||
| 323 | 39.2 | 47.1 | 73.2 | 75/380 | |||
| 970 | 107 | 19.7 | 9.4 | 60.9 | 1.9 | 15/380 | |
| 182 | 17.8 | 12.3 | 71.9 | 18.5/380 | |||
| 212 | 16.8 | 13.3 | 73.2 | 18.5/380 | |||
| 80DT-36 | 1480 | 86 | 471 | 23.3 | 47.4 | 3.2 | 30/380 |
| 151 | 42 | 28.5 | 60.7 | 37/380 | |||
| 167 | 39.9 | 29.3 | 62 | 37/380 | |||
| 970 | 56 | 20.2 | 6.5 | 47.4 60.7 | 1.5 | 11/380 | |
| 99 | 18 | 8 | 15/380 | ||||
| 109 | 17.1 | 8.2 | 62 | 15/380 | |||
| 65DT-40 | 1480 | 71 | 63.2 | 26.2 | 46.7 | 4.5 | 37/380 |
| 141 | 57.5 | 35.6 | 62.1 | 45/380 | |||
| 159 | 54.6 | 36.1 | 62.1 | 55/380 | |||
| 970 | 47 | 27.1 | 7.4 | 46.7 | 2.1 | 11/380 | |
| 92 | 24.7 | 10 | 62.1 | 15/380 | |||
| 104 | 23.5 | 10.7 | 62.1 | 15/380 | |||
| 65DT-30 | 1480 | 44 | 35.6 | 9.1 | 46.7 | 4.6 | 15/380 |
| 79 | 32.6 | 12.8 | 54.6 | 18.5/380 | |||
| 99 | 30.7 | 15.4 | 53.8 | 22/380 | |||
| 960 | 29 | 15.2 | 2.6 | 46.7 | 2.2 | 5.5/380 | |
| 51 | 13.9 | 3.5 | 54.6 | 5.5/380 | |||
| 64 | 13.1 | 4.2 | 53.8 | 7.5/380 | |||
| 50DT-40D | 1480 | 33 | 51.7 | 13.1 | 35.4 | 2.5 | 18.5/380 |
| 68 | 43.4 | 17.8 | 45.4 | 30/380 | |||
| 76 | 40.8 | 18.9 | 44.7 | 30/380 | |||
| 970 | 22 | 22.5 | 3.8 | 35.4 | 1.2 | 5.5/380 | |
| 45 | 18.9 | 5.1 | 45.1 | 7.5/380 | |||
| 50 | 17.7 | 5.4 | 44.7 | 11/380 | |||
| 50DT-30 | 1480 | 34 | 36.3 | 7.8 | 43.1 | 16 | 11/380 |
| 55 | 31.9 | 9.9 | 48.5 | 15/380 | |||
| 78 | 26.4 | 12.4 | 45.4 | 18.5/380 | |||
| 960 | 22 | 15.7 | 2.2 | 43.1 | 0.8 | 4/380 | |
| 36 | 13.8 | 2.8 | 48.5 | 4/380 | |||
| 51 | 11.4 | 3.5 | 45.4 | 5.5/380 | |||
| 40DT-25 [a] | 2950 | 35.5 | 88.6 | 20.7 | 41.3 | 30/380 | |
| 58.5 | 73.5 | 27.7 | 42.5 | 37/380 | |||
| 74.7 | 60.8 | 31.2 | 39.6 | 45/380 | |||
| 1440 | 17.3 | 21.1 | 2.4 | 41.3 | 2.6 | 4/380 | |
| 28.7 | 17.5 | 3.2 | 42.5 | 5.5/380 | |||
| 36.5 | 14.5 | 3.6 | 39.6 | 5.5/380 | |||
| 40DT-20B | 2930 | 16.6 | 57.5 | 6.4 | 40.9 | 3.5 | 11/380 |
| 33.3 | 49.9 | 8.5 | 53 | 15/380 | |||
| 37.1 | 471 | 9.2 | 52 | 15/380 | |||
| 1430 | 8.1 | 13.7 | 0.7 | 40.9 | 0.9 | 1.5/380 | |
| 16.3 | 11.9 | 1 | 53 | 2.2/380 | |||
| 18.1 | 11.2 | 1.1 | 52 | 2.2/380 | |||
| 40DT-19 | 2930 | 16.3 | 57.1 | 6.5 | 39.2 | 4.9 | 11/380 |
| 30 | 54.9 | 8.1 | 55.4 | 15/380 | |||
| 34.9 | 53.7 | 8.7 | 58.8 | 15/380 | |||
| 1400 | 7.8 | 13 | 0.7 | 39.2 | 1.2 | 1.5/380 | |
| 14.3 | 12.5 | 0.9 | 55.4 | 1.5/380 | |||
| 16.7 | 12.3 | 1 | 58.8 | 2.2/380 | |||
| 40DT-17 | 2900 | 9.4 | 44.6 | 3.4 | 33.2 | 4.5 | 5.5/380 |
| 17.9 | 42.7 | 4.2 | 49.5 | 7.5/380 | |||
| 23.4 | 39.3 | 4.8 | 52.4 | 7.5/380 | |||
| 1400 | 4.6 | 10.4 | 0.4 | 33.2 | 2.5 | 0.75/380 | |
| 8.6 | 10 | 0.5 | 49.5 | 1.1/380 | |||
| 11.3 | 9.2 | 0.5 | 52.4 | 1.1/380 | |||
| 25DT-25 | 1440 | 9.6 | 21.6 | 1.7 | 33.2 | 7.1 | 3/380 |
| 17.8 | 16.6 | 2.1 | 38 | 4/380 | |||
| 19.9 | 13.9 | 2.1 | 33.8 | 4/380 | |||
| 910 | 6 | 8.6 | 0.4 | 33.2 | 3.3 | 0.75/380 | |
| 11.2 | 6.6 | 0.5 | 38 | 1.1/380 | |||
| 12.5 | 5.5 | 0.6 | 33.8 | 1.1/380 | |||
| 25DT-15 | 2900 | 9.2 | 34.4 | 2.6 | 32.7 | 5.3 | 5.5/380 |
| 17.1 | 29.5 | 3.3 | 41.8 | 5.5/380 | |||
| 19.3 | 27.1 | 3.5 | 40.8 | 5.5/380 | |||
| 1390 | 4.4 8.2 6.3 | 7.9 6.8 6.2 | 0.3 0.4 0.4 | 32.7 41.8 40.8 | 1.3 | 0.55/380 | |
| 0.75/380 0.75/380 |
