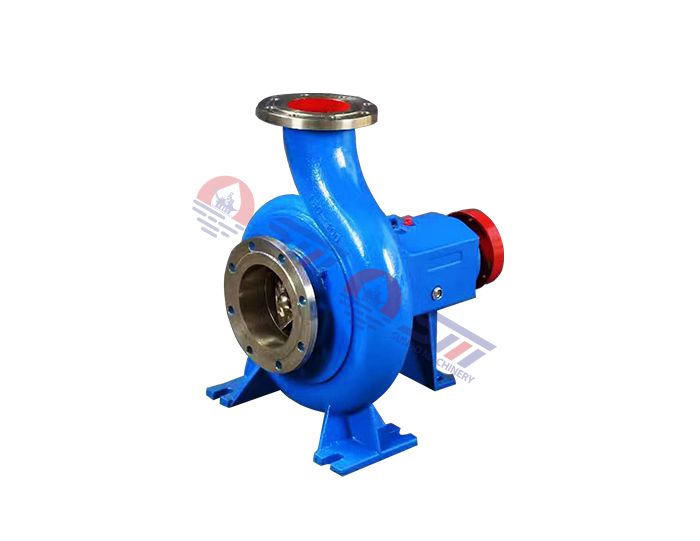

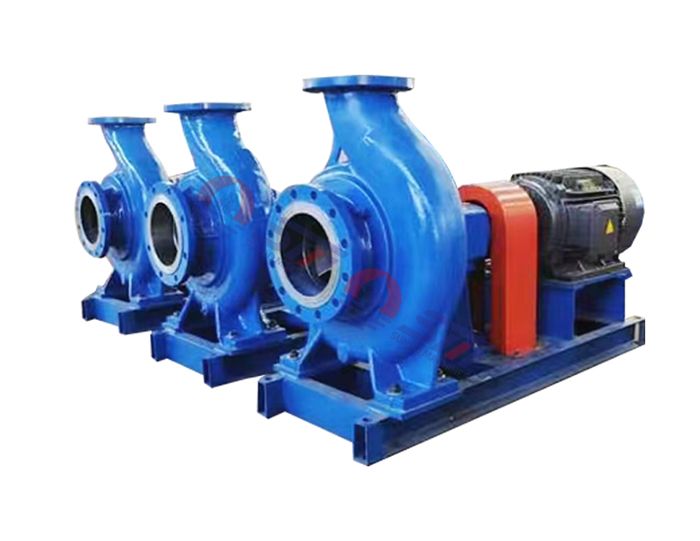

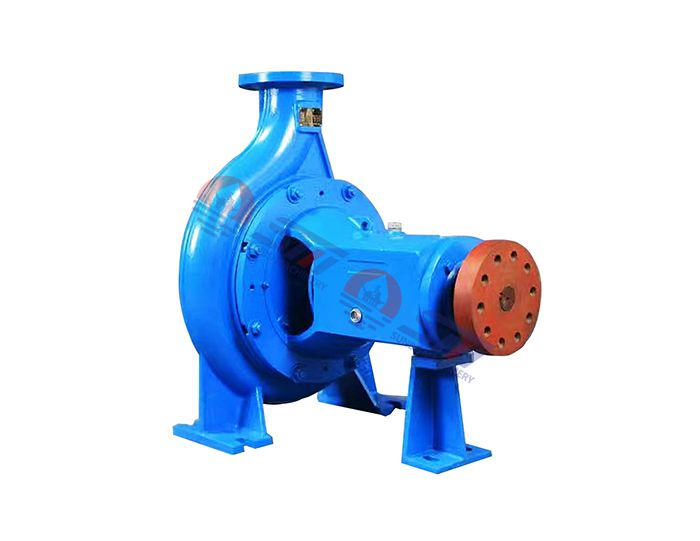

Andritz S series single-stage process centrifugal pumps are available with closed, semi-open or open impellers. These wear-resistant pumps are suitable for working with a wide range of media.
Depending on the type of impeller, they can transport contaminated liquids with amount of solids up to 8%. They are used as process pumps in paper, chemical, sugar, energy, food industries, water, sewage treatment, drainage or other systems.
Andritz Single-stage Centrifugal Pump Specification:
★ Pump type: Horizontal
★ Materials: Cast Iron, Duplex, Super Duplex, Stainless Steel
★ Seal arrangement: Mechanical Seal, Double Seal
★ Max temperature: 200 Celsius
Available Andritz S Pump Models and Spares:
S80-265, S100-265, S125-265, S3 100-350.3, S125-350, S150-330, S3 125-400, S3 150-400.3, S3 200-380, S8 200-380, S3 150-470.3, S3 200-470.3, S3 250-430.3, S3 350-470.3, S8 350-470.6, S500-600, etc
Andritz S pump spare parts including: Impeller (2 vanes, 3 vanes, 6 vanes, 8 vanes), Volute Casing, Casing Cover, Front Lining, Rear Lining, Stuffing Box Body, Shaft Wear Sleeve etc which for Andritz S series paper-pulp pumps.
S series Centrifugal Pumps Performance Parameter:
| Model | Capacity Q | Head H(m) | Speed n(r/min) | Power P(kw) | Eff. η(%) | Impeller dia.(mm) | |
| m3/h | l/s | ||||||
| S80-265 | 114 | 31.6 | 66.1 | 2900 | 55 | 60 | 265 |
| 180 | 50 | 53.9 | |||||
| 220 | 61.2 | 44.9 | |||||
| S100-265 | 132 | 36.7 | 53 | 2900 | 45 | 68 | 230 |
| 220 | 61.5 | 42 | |||||
| 264 | 73.3 | 33 | |||||
| S125-265 | 120 | 33.3 | 18.2 | 1450 | 15 | 74 | 265 |
| 185 | 51.4 | 15.2 | |||||
| 260 | 72.2 | 9 | |||||
| S100-350 | 168 | 46.7 | 90 | 2950 | 110 | 65 | 310 |
| 185 | 51.4 | 15.2 | |||||
| 260 | 72.2 | 9 | |||||
| S125-350 | 240 | 66.7 | 78 | 2950 | 110 | 72 | 280 |
| 400 | 111.1 | 59 | |||||
| 480 | 133.3 | 47 | |||||
| S150-330 | 270 | 75 | 28 | 1470 | 37 | 78 | 330 |
| 410 | 113.9 | 24 | |||||
| 570 | 158.3 | 16.5 | |||||
| S125-400 | 264 | 73.3 | 118 | 2970 | 160 | 85 | 330 |
| 440 | 122.2 | 95 | |||||
| 528 | 146.7 | 80 | |||||
| S150-400 | 325 | 90.3 | 43 | 1450 | 75 | 77 | 400 |
| 400 | 111.1 | 40 | |||||
| 470 | 130.6 | 37 | |||||
| TJS150-470 | 350 | 97.2 | 57 | 1480 | 110 | 78 | 470 |
| 530 | 147.2 | 53 | |||||
| 715 | 198.6 | 40 | |||||
| S220-470 | 550 | 152.8 | 58 | 1480 | 160 | 80 | 470 |
| 780 | 216.7 | 50 | |||||
| 980 | 272.2 | 40 | |||||
| S200-380 | 490 | 136.1 | 36 | 1450 | 90 | 82 | 380 |
| 690 | 191.7 | 32 | |||||
| 870 | 241.7 | 26 | |||||
| S250-430 | 750 | 208.3 | 46 | 1450 | 200 | 80 | 430 |
| 1150 | 319.4 | 40 | |||||
| 1500 | 416.7 | 28 | |||||
| S350-470 | 1160 | 322.2 | 51 | 1450 | 280 | 84 | 470 |
| 1600 | 444.4 | 44 | |||||
| 2100 | 583.3 | 32 | |||||
| S500-600 | 1750 | 486.1 | 35 | 960 | 280 | 85 | 600 |
| 2600 | 722.2 | 28.5 | |||||
| 3250 | 902.8 | 21.5 | |||||
| * The paramters can be customized as requirements | |||||||
